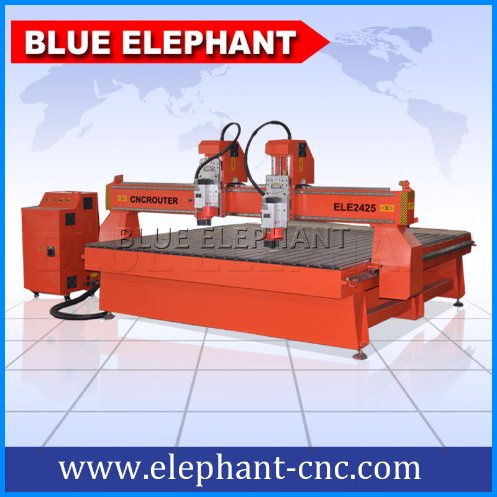

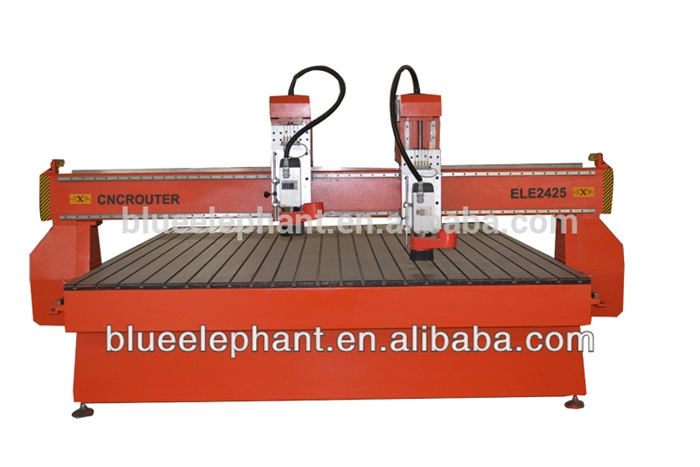

Ele-2425 Professional CNC Router for Wood Cutting and Engraving Machine Sale

Prod Model:	ELE-2425
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Professional CNC Router for Wood Cutting and Engra
Working Area:	2400*2500mm
Spindle:	Italy Hsd Air Cooling Spindle
Machine Head:	Two Heads with Spindles
Motor:	Stepper Motor (Top Brand in China)
Transmission:	Rack and Gear Transmission
Linear Guide:	Taiwan Hiwin Linear Guide
Voltage:	AC380V/3pH/50Hz
Working Speed:	20m /Min
Spindle Speed:	1800/2400 Rpm
Spindle Layout:	Spindle Over
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	FDA
Spindle Number:	Double Separate Heads

Product Description

Features :

1, Italy HSD cooling spindle, big strength, long life, and low noise.
2,Popular DSP controller, it's with USB interface, no need connecting to PC,both easy operation and convenient.
3,Double separate heads, much bigger strength than one head, it's suitable for wood doors, windows, or other wood furniture with symmetrical patterns.
4,HIWIN linear guide, imported from Taiwan. It's high precision, long life and top pressure-tolerant performance.
5,Configured with HIWIN linear rail from Taiwan, more stable and precision
6,Configured with high-power, high-precision stepper system
7,Imported high speed mute ball screw transmitting, high precision and speed
8,Standard configured with air cooling spindle motor, high power and efficiency
9,Configured with advanced DSP controlling system, independent power supply, rapid calculation, support transmitting files from USB flash disk directly
10,Be compatible with various CAD/CAM software as TYPE3/Artcam/Castmate/CAXA/Artcut etc.
11,Oil lubrication the machine travelling parts, fast and secure
12,Convenient operation: with functions of restoring from power off, continuation from break point, auto feeding blades, repeat engraving
Independent control cabinet, Easy maintenance




NO.	Description	Parameter
1	X,Y,Z Working Area	2400*2500mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	T-slot Table
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
7	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
8	Max. Power Consumption	(Without Spindle)  2. kw~2.2Kw
9	Max. Rapid Travel Rate	33000mm/min
10	Max. Working Speed	25000mm/min
11	Spindle Power	2.2KW water cooling spindle for both heads
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper System
14	Working Voltage	AC220V/50/60Hz,3PH (Option: 380V)
15	Command Language	G Code
16	Operating System	DSP control system(options: NCstudio/Mach3 PC Software)
17	Collet	ER20
18	X,Y Resolution	<0.01mm
19	Software Compatibility	Type3/UcancameV9 Software
20	Running Environment  Temperature	0 - 45 Centigrade

Option items :
Vacuum working table with vacuum Pump
China water cooling spindle
Japan YASKAWA Servo drivers and motors
ROTARY AXIS
Oil mist cooling system for working on metal and stone
Dust collect system : 3kw/5.5 KW double bag
Working area:  1500*3000*220 mm / 2000*3000*220 mm / 2000*4000*220 mm
Z axis up to 300~400 mm
Application and samples:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving

Packing& Shipping:


Packaging : 1.outside package:Standard marine export plywood cases
                     2.inner package:Stretch film and plastic film for humidity
Shipping: maritime transport,air transport,land transport and the logistics transport


Why are our products so welcome among customers all over the world?

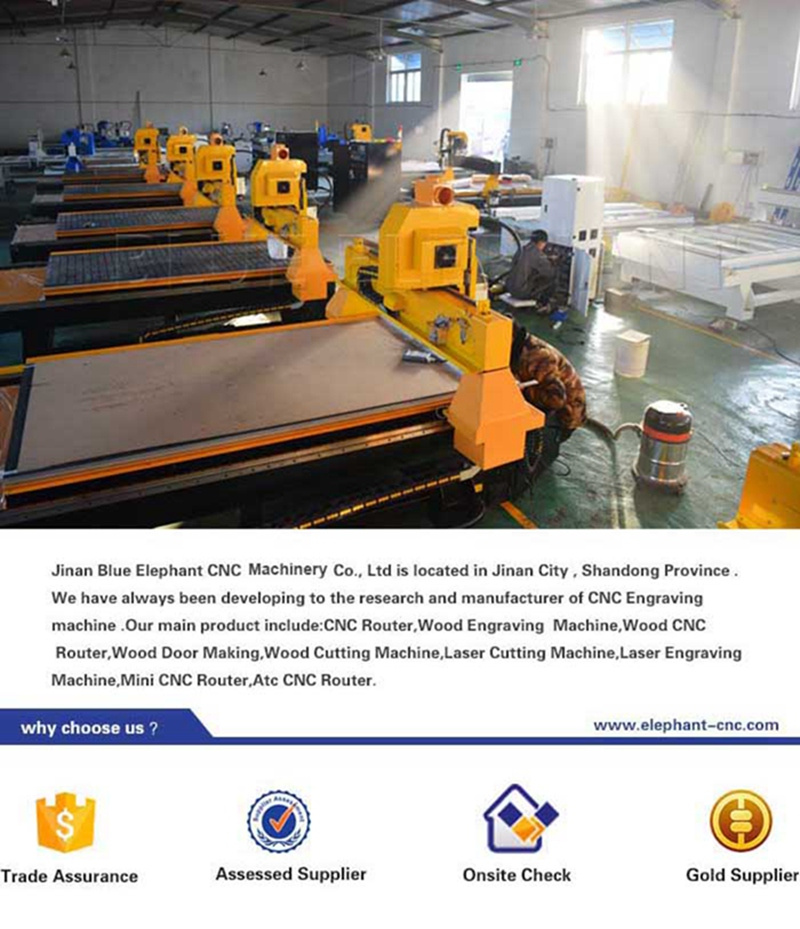

1.Our company has more than 10 years' experience in manufacturing cutting and engraving cnc router machine.

2.Our machine has achieved CE,FDA,CIQ,which ensures the quality and its longer life time makes customers feel at ease to use it.

3. Reinforced and thickened machine body makes transportation absolutely safer.

About our service:


1,Before-sale:we will try to know your requests about what work you will do
   and help you choose the most suitable machine specification & give you the best solution.
2.During production: we will send photos of machines during production. so customers can know more details
   about the procession of making their machines. and give them suggestions.
3.Before shipping:we will confirm the specification of order to avoid the mistake and we will test & adjust the machine until it has the best performence.
4.After shipping: we will give you the tracking information of the sea vessel
   so customers can know when it will arrive at your port and make enough preparation.
5.After arrival: we will confirm with you if machine is in good condition. and see if any spare parts were broken during sea shipping then help to solve the insurance
6.About training: there are some manual and video about how to install & use machine , if you have any questions
   you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7. About warranty: we offer 2 years warranty for whole machine and half year warranty for spindle.
   if any parts of our machine is broken. we will replace it for free.
8. Service in life-time: we hope our machine can bring perfect performance in life-time, of course no matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.

FAQ:


1.Are you a factory or trading company?
 We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself  ,quality can be trusted,  and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order ? what is the procession of this purchase ?
 You can do 30% prepayment at first, then we will start to make production.
 when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. We will send the machine to you.
4. How about your service after sales ?  can your engineer speak fluent english ?
We offer the service from you got the machine,  including how to install the machine,
how to use machine. how to let machine work. and so on.  usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service .  he can speak very good english ,
so he can slove the problem in short time.

Please note:
We have big wood cnc router models(1300x2500mm, 1500x3000mm, 2000x3000mm, 2000x4000mm) & small advertising cnc router models(300x400mm, 400x400mm,600x900mm,1200x1200mm,1200x1800mm),  we also can customize any models according to your requested working area.
Welcome to contact us for more details!!
