Zhengzhou Hepo International Trading Co., Ltd. >> Durable and Economic Class II Biological Safety Cabinet in PNG

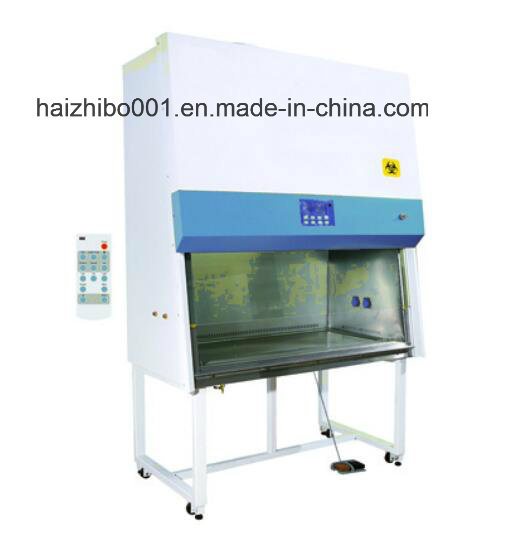

Durable and Economic Class II Biological Safety Cabinet in PNG

Durable and Economic Class II Biological Safety Cabinet in PNG
Price: US $ 4100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: BSC-1100IIA2-X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
External Size: 1100*850*2200
Inflow Velocity/ Down Flow: 0.53 M/S;0.33 M/S
Weight: 255kg
Internal Size(mm): 900*600*660

Product Description

Class II Biological Safety Cabinet
The Class II biological safety cabinet is an open-front, ventilated cabinet with negative pressure inside. The Class II biological safety cabinet will provide personnel, environment and product protection.It's always used for doing dangerous experiments or infective experiments.
 Main Advantages
1,Remote Control
All functions can be realized through it, the first choice for preventing cross contamination.Much Easy and Safe to control and operation the cabinet.
2,Foot Switch
You can use foot switch to adjust the height of the front window during the test,which is much convenient.It's our unique design.
3,Four Sides Air Course Design
The four side air course designing makes the work area all around surrounded by negative pressure.
4,Timer Reserve Function
Mush useful and safety function,such as the starting timer,the UV sterilization timer,etc.
5,Various Display Screen
Using VFD,LED,LCD digital displaying for various models according to different customers' needed.
6,Filter & UV Life Attention
It can be showed in our VFD display.
7,Safety Power Lock and Cabinet Lock
To make sure nobody else can use the cabinet without allow.
8,Motor Controlled Laminated Glass
Much safety once broken and better effect to prevent the UV light.
9,Audio and Visual Alarm Function (Filter replacement,window over height,air flow abnormal etc.)
10,Interlock Function:UV Lamp and front window,UV lamp and blower,fluorescent lamp,Blower and front window.

According to the performance criteria
1  US Standard  ANSI/NSF49:2002
2  European Standard  EN12469:2000
3  Chinese Standard  YY0569-2005
Parameters for Class II A2 Biological Safety Cabinet

Main Parameters of Class II A2-X
Model BSC-1100IIA2-XBSC-1300IIA2-XBSC-1500IIA2-XBSC-1800IIA2-XBSC-2000IIA2-X
Internal size(mm)900*600*6601100*600*6601300*600*6601600*600*6601800*600*660
External size(mm)1100*850*22001300*850*22001500*850*22301800*850*23001950*850*2200
Tested OpeningSafety Height:≤200 mm
Max Opening400mm
Inflow Velocity/
Down Flow
0.53 m/s;0.33 m/s
FilterTwo HEPA filter,99.999% efficient(0.3 microns)
Front WindowTwo-layer toughened glass? >5mm
Noise≤60 dB
UV lamp18W×118W×130W×140W×140wX11
Fluorescent Lamp21W×221W×228W×228W×240WX2
Lighting (Lux)≥1000≥1000≥1000≥1000≥1000
Power(W)7601060130013501700
Water and Gas TapWater Tap:1;Gas Tap:1.(Optional)
Waterproof SocketTwo,total consumption:500w
DisplayLCD display
Control SystemMicroprocessor
Airflow System:70% air recirculation,30% air exhaust
MaterialWork zone interior is made of 304 stainless steel,
Body: Epoxy coated cold rolled steel
Standard Base635mm height
Caster WheelUniversal wheel with brake and leveling feet
Electrical
Parameter
110~240V/50~60Hz (optional)
Net weight(kg)240270310350380
Gross weight(kg)255305350390420
Package (mm)1250*1050*18701450*1050*18701640*1045*18601940*1050*19602090*1050*1860
Standard SetsRemote control, Foot switch, UV lamp*2,Fluorescent Lamp,Base Stand,Drain valve
,Waterproof Sockets
Optional
Accessory
Armrest, Air curtain tester, Formalin fumigation sterilizer,
Ammonium hydrogen carbonate,
neutralizer,Infrared Sterilizer



Main Parameters of Class II B2-X
ModelBSC-1100II B2-XBSC-1300II B2-XBSC-1500II B2-XBSC-1800IIB2-X
Internal size(mm)/
W*D*H
940×600×6601100×600×6601350×600×6201600*670*630
External size(mm)
W*D*H
1100×750×22501300×850×22001500×760×22501800*840*2275
Tested OpeningSafety≤200 mm
Max Opening400mm
Air Flow VelocityInflow:0.53m/s ± 0.025m/s;Down Flow Velocity:0.33 m/s ± 0.025m/s
FilterPre-filter:Washable,Two HEPA main filter:99.999% efficient(0.3 microns)
Front WindowMotorized,two layer laminated toughened glass
Noise≤62dB
UV lamp20W×120W×130W×140W×1
Fluorescent Lamp21W×121W×128W×135W×2
Lighting>=1000Lux>=1000Lux>=1000Lux>=1000Lux
Power1050W1350W1550W1900W
TapWater Tap:1 ;Gas Tap: 1 (Optional)
SocketTwo,Waterproof,total consumption:500w
DisplayLCD display
Control SystemMicroprocessor
Airflow System:0 air recirculation,100% air exhaust
Exhaust Duct4meters PVC duct,diameter: 300mm
MaterialWork zone interior is made of 304 stainless steel
Body:cold rolled steel with anti-bacteria powder
Base Height635 mm
Caster WheelUniversal wheel with brake and leveling feet
Electrical110~240V/50~60Hz (optional)
N.W.275kgs320kgs350kgs390kgs
G.W.350kgs360kgs440kgs470kgs
Main Body Package/mm1250*1050*18701450*1050*18701640*1045*18601940*1050*1860
Exhaust Blower Package/mm1060*970*580
Standard PartsMain Body,Bottom stand,Remote control, Foot switch,2 UV lamps and Fluorescent Lamp,exhaust duct, exhaust blower,sockets
Option ItemsArmrest, Air curtain tester, Formalin fumigation sterilizer,Ammonium hydrogen carbonate
 neutralizer,infrared sterilizer
