| Prod Model: |
WL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
4u,6u,9u,12u,15u,18u |
| Loading Capacity: |
60kg |
| Width: |
550mm,600mm |
| Depth: |
450mm,600mm |
| Color Options: |
Black,Gray,White |
| Front Door: |
Toughened Glass and Removable |
| Side Panel: |
Lockable and Removable |
| Certificate: |
ISO |
| Service: |
OEM |
| Type: |
Network Cabinet |
| Fan Number: |
One |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Wall-Mounted Cabinet |
| Condition: |
New |
Product Description

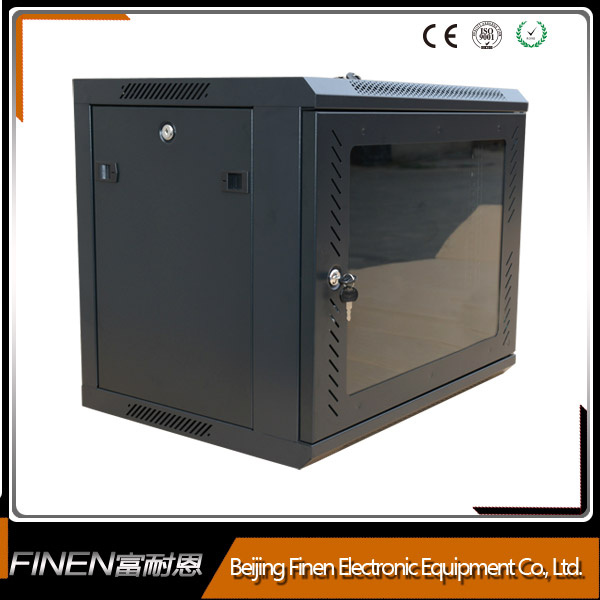

Data communication cabinet wallmount 19" Cabinet
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery: 7-10 days
4). High quality & reasonable price
Product Information
1. Feature
1) Loading Capacity: 60kg
2) Mounting profile: 2.0mm, others: 1.20mm
3) Reversible, front tempered glass door
4) Toughened glass on front door
5) Side Panel: Removable Side Panel, Easy To Install And Miantain (Lock Optional)
6) Revolving front locks
7) Vented front and sides for cooling
8) Pre-punched provision for 1 fan (fan not included)
9) Pre-punched holes for cabling
2. Main Material: SPCC Cold rolled steel
3. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
4. Degree of Protection: IP20
5. Loading Capacity: 60kg
6. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
Recomended products
Finen-AS Glass front door and vented mesh rear door 18U, 22U, 32U, 37U, 42U
Finen-A3 Vented mesh front and rear doors with handle lock, 18u, 22u, 32u, 37u, 42u
Capacity: 800kgs
All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
| Cabinet Package ContentS |
| No. | Component name | Quantity | Unit | Material | Remark |
| 1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.0 |
|
| 2 | Fan | 1 | pc | --- | With 1 fan or without |
| 3 | Mounting Profile | 4 | pc | Zinc plated T2.0 |
|
| 4 | Mounting angle | 6 | pc | SPCC T1.2 | 2pcs |
| 5 | Frame | 2 | pc | SPCC T1.2 |
|
| 6 | Lock | 2 | pcs | --- | Round lock |
| 7 | Front Door | 1 | pc | SPCC T1.2 | Tempered glass door |
| 9 | Side Panel | 2 | pcs | SPCC T1.0 | Removable |
| 10 | Bottom Panel | 1 | pc | SPCC T1.0 |
|
| 11 | Screw | 20 | pcs | --- | 20pcs |
| 12 | Cage nut | 20 | pcs | --- | 20pcs |
| 13 | Keys | 1 | set |
|
|
| 14 | Shelf | 1 | psc | SPCC T1.0 |
|
| 15 | Other components are available according to request |
| Specification |
| Model No. | Capacity(U) | H*W*D(mm) | Packing size(W*D*H) | Cubic(CBM) | | WL-45540 | 4 | 280*550*450mm | 310*580*480mm | 0.086 | | WL-65540 | 6 | 350*550*450mm | 370*580*480mm | 0.103 | | WL-95545 | 9 | 500*550*450mm | 530*580*480mm | 0.147 | | WL-125545 | 12 | 635*550*450mm | 665*580*480mm | 0.184 | | WL-155545 | 15 | 769*550*450mm | 800*580*480mm | 0.223 | | WL-185545 | 18 | 901*550*450mm | 930*580*480mm | 0.259 |
|
