| Prod Model: |
SH Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Name: |
Salt Sprayer Test Chambers |
| Usage: |
Corrosion Testing |
| Compressed Air Pressure(Kgf): |
1.0~6.0 |
| Spray Form: |
Continuous Spraying or Programmable Spraying |
| Volume: |
Customized |
| Warranty: |
One Year Free Warranty |
| Package: |
Plywood Case or According to Customer's Requiremen |
| Service: |
OEM Service, Design Service |
| Power: |
AC 220V, 1& 3 Lines15A |
| Type: |
Corrosion Testing |
Product Description

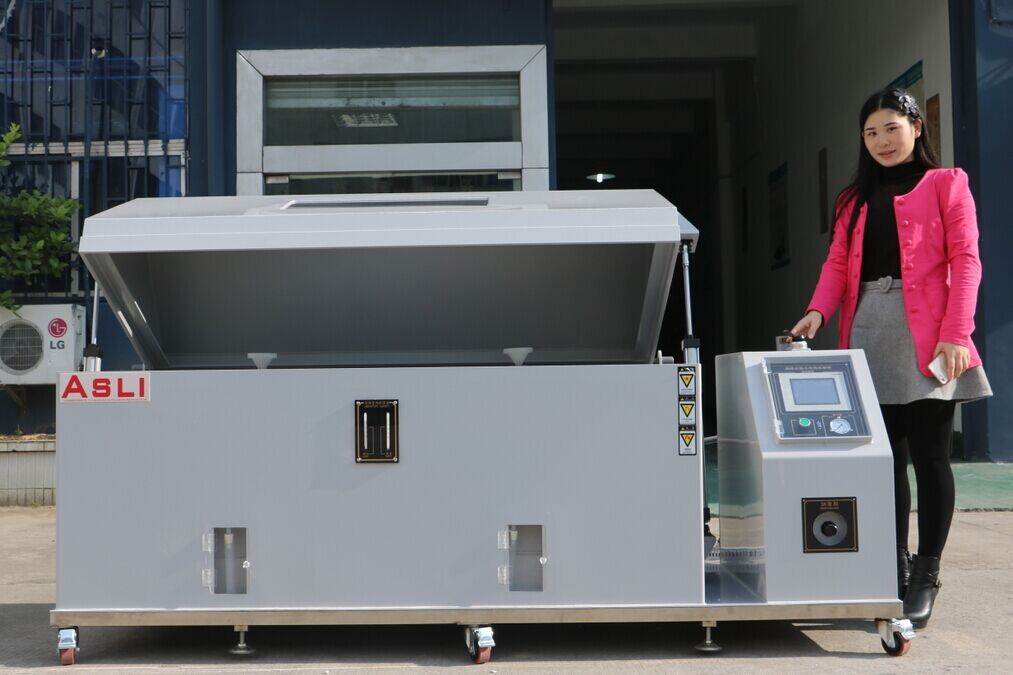

Salt Spray Testing Chamber,Salty Spray Cabinet
Model |
SH-60 |
SH-90 |
SH-120 |
SH-160 |
SH-200 |
Internal Dimension
WxHxD (mm) |
600x450x400 |
900x600x500 |
1200x800x500 |
1600x800x500 |
2000x1000x500 |
External Dimension
WxHxD (mm) |
1100x600x1200 |
1400x950x1200 |
1900x1300x1400 |
2300x1300x
1400 |
2700x1500x1500 |
Lab Temperature |
Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C |
Pressure Bucket
Temperature |
Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C |
Lab Capacity(L) |
110 |
270 |
500 |
800 |
1500 |
Saline Capacity(L) |
15 |
25 |
40 |
40 |
40 |
Saline Concentration |
5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O |
Compressed Air
Pressure(Kgf) |
1.0~6.0 |
Spray Volume |
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) |
Spray Form |
Continuous Spraying or Programmable Spraying |
Power |
AC220V 1 Ph 3 lines15A |
Weight(Kg) |
65 |
80 |
120 |
160 |
200
|
Salt Spray Testing Chamber,Salty Spray Cabinet applications:
Salt Spray Testing Chamber,Salty Spray Cabinet is specially designed for the testing of the corrosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, antirusting oil and other anti-erosion treatment.
Salt Spray Testing Chamber,Salty Spray Cabinet Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1°C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%;PH of the water:6.5-7.2 (Liquid)
