| Price: | US $ 1000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | GV-mold-0083 |
|---|---|
| Shaping Mode: | Injection Mould |
| Process Combination Type: | Single-Process Mode |
| Application: | Home Use |
| Installation: | Fixed |
| Items | Injection plastic mold |
| Parts materials | PC, ABS (also other material like PP, PBT, BMC, PMMA, PC+ABS, PP+TD20%, PU, PE, PVC) |
| Mold base steel | NAK80, S136, SKD61,45, S55C, P20, 1730, 2738, 718h, H13, BPMHH, 2343ESR |
| Core and cavity steel | NAK80, S136, SKD61, P20,1730hh, 2738hh, 718h, H13, BPMHH, 2343hh |
| Injection system | Edge gate, slid gate, sub gate, direct gate, pin point gate, valve gate |
| Mould standard | DME, LKM, HASCO |
| Cavity numbers | Single or multi (customized up to 32C AV) |
| Runner | Hot or cold |
| Injection machine | 100-1500T |
| Cycle time | 10-120 seconds |
| Mold of steel suppliers | Finkl, Assab, Daidao, LKM, Buderus |
| Hot runners suppliers | Synventive, Yudo, Incoe, Hasco, DME, Moldmaster, HRS, Delachaux |
| Mould life | 300,000 - 1,000,000 shots |
| Tooling lead-time | 15-40 days depends on qty and complexity of mold |
| Design software | Pro/E, UG, Catia, Solidwork, Moldflow, AutoCad |
| Mould life | 300,000-1,000,000 shots |
| Shipping packing | Wooden case or according to customer's requirements |
| Certificate | ISO |
Green Vitality Industry CO., Limited was founded in 1997,as starting fron CNC processing in a small tooling building in Chang'an town, with 22 years experience in custom tooling and injection molding, nowadays we have become one of the global famous mold makers in manufacturing large plastic injection molds. With the modern business management system and ISO9001:2008 Quality System guideline, the sophisticated production techniques, the advanced manufacturing equipment, and our qualified and dedicated team, we are full of capabilities and have great confidence in offering you professional one-stop solution of mold designing, mold making, injection molding and beyond-value service. We serve a broad range of customers in the field of Auto Parts, Aero parts, Household Appliance, Industrial and Beauty. Green Vitality make over 400 molds per year, mainly of the molds and plastic parts are exported to America, Germany, France, Turkey, Italy and other countries worldwide. We have established long-term cooperation with our clients and are continually improve top quality molds and plastic parts to our clients, establishing close strategic partnership to keep customer's satisfaction and success, growing up together with customers.

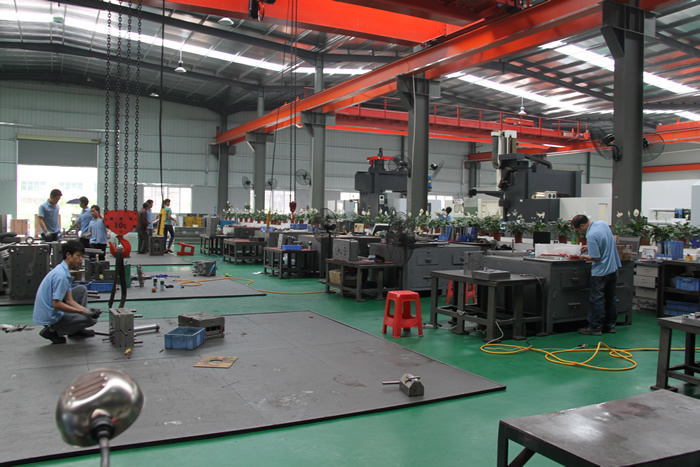

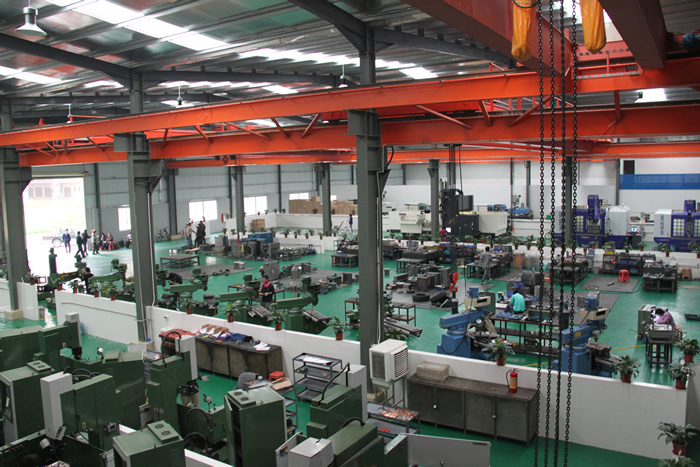

Factory Profile
6000 square meters mold making workshop, 8,000 square meters injection workshop.
With 160 employees, including 20 engineers, mold maker 65 people, injection molding 60 people.
Factory Capability:
40 molds per month (Mxa.)
Max. mold size 3200x2200mm, Max. mold weight 25 tons
Service Scope:
Expert in Auto Parts, Aero parts and Household Appliance large plastic molds
Plastic parts injection
Prototype parts
Market Advantage:
Top quality mold and plastic parts
Reliable service
Contact us
Below is a list of answers to most frequently asked questions about Green Vitality.
Q:Which kinds of equipment in your workshop?

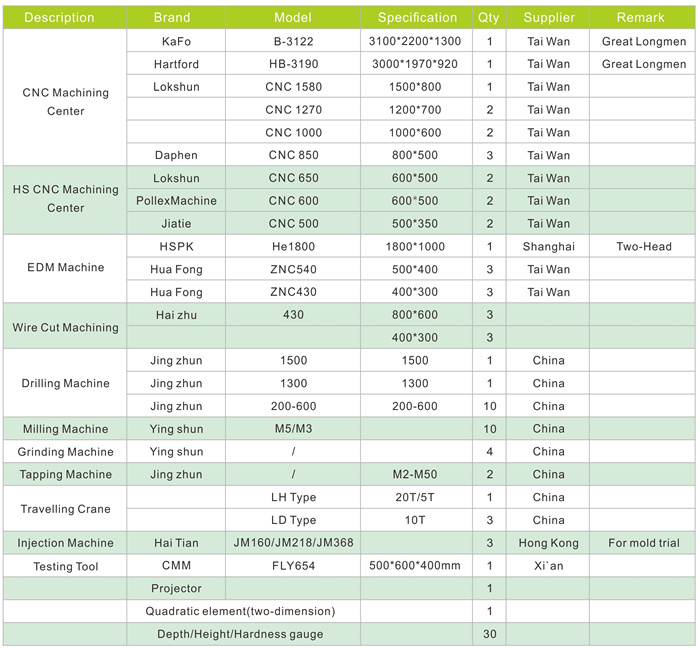

A:Our company has 14 sets of computer CNC machining centers, high-speed carving CNC 9 units, large gantry CNC (military grade) 2 sets of machining centers, EDM machine 6, currently the world's most advanced double spark machine, precision grinding six , three large water mill, lathe, milling machine 10, radial drill two sets, desktop drilling machine, deep hole drilling, 3 sets of 8 Fast thread cutting and other processing equipment, as well as ancillary products measured using three measurements yuan, two MEs, projection measuring instrument, hardness tester and other equipment
Q:What kind of payment conditions do you accept?
A:Usually we accept standard payment conditions - that is: 40% of total prices down payment, 40% on mould first trial and 20% on mould delivery. Particularly, in case of bigger contracts. The preferable forms of payment are wire transfer and letters of credit. We often use a combination of those.
Q:Can you provide the steel certificate and heat-treatment certificate?
A:Yes, we can. The steel supplier and heat-treatment factory can provide the certificates.
Q:How long is the lead-time for a mould?
A:It all depends on the mould's size and complexity. Usually, the lead-time is about 25-65 days.
