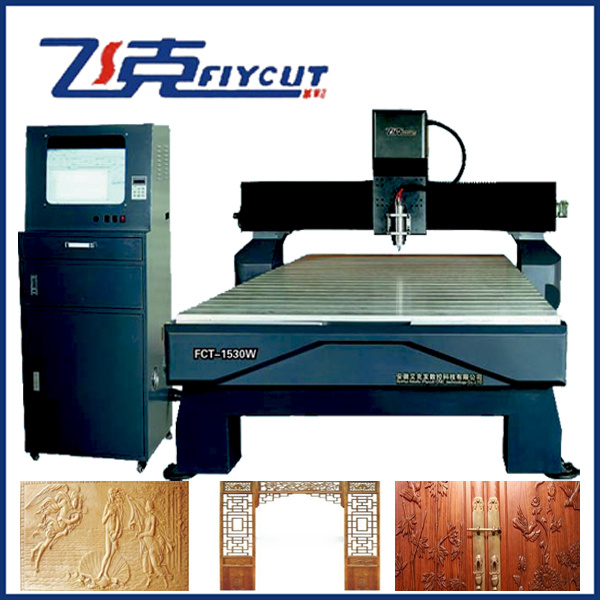

CNC Wood Router for Door Windows Table Bed Making
| Price: |
US $ 5800-5900set/sets |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set/sets |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
FCT-1530W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: |
High Accuracy Gear Rack |
| Xyz Rails: |
Pmi Square Rail |
| Motor And Driver: |
Stepper Motor and Driver |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description
CNC WOOD ENGRAVER Features:
- The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
- The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
- The major machine body makes the stability and no shacking in high speed.
- XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
- The professional mechanical design, scientific structure and generous appearance.
- XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
- High quality driver motor, spindle motor, cables, inverters, etc.
- Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Appplication:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.
Special configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.
Technical parameters:
| Model | FCT-1530W |
| Machine size | 1600*3125mm |
| Working size | 1500*3000*200mm |
| Control system | Water cooling 3000w |
| Spindle power | 6000~24ooorpm |
| Spindle rotation | Step motor driver
(Chinese servo motor and import servo motor is optional) |
| Tool diameter | 3.175,4,6,12.7mm |
| Machine structure | Industry square tube structure |
| transmission | TBI ball screw or high accuracy gear rack |
| XYZ Rails | Taiwan PMI |
| Mechanical accuracy | <0.03/300mm |
| Cutting speed | 12000mm/min |
| Data transmission | PC-Connection Directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50HZ or 380V/50HZ |
| Net weight | 1600kg |
Our services:
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our factory.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.We will solve your problems immediately by E-mail, fax, Skype ,wechat,whatsaap,telephone.
6.Machine has been adjusted before delivery.
FAQ
1. how should I pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment.I will send the machine to you.
2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine,
including how to install the machine,
how to use machine. how to let machine work. and so on.
usually we will teach you how to do by email or by skype,wechat,whatsaap .
our engineer has many years of experience for cnc machine service .
he can speak very good english , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,
quality can be trusted, and most important thing is we can do better service after sales.
we know how to fix the problem in each parts easliy.
so welcome to visit to our factory
4. How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to
client s specific requirements, it would be 15 to 30 days.
