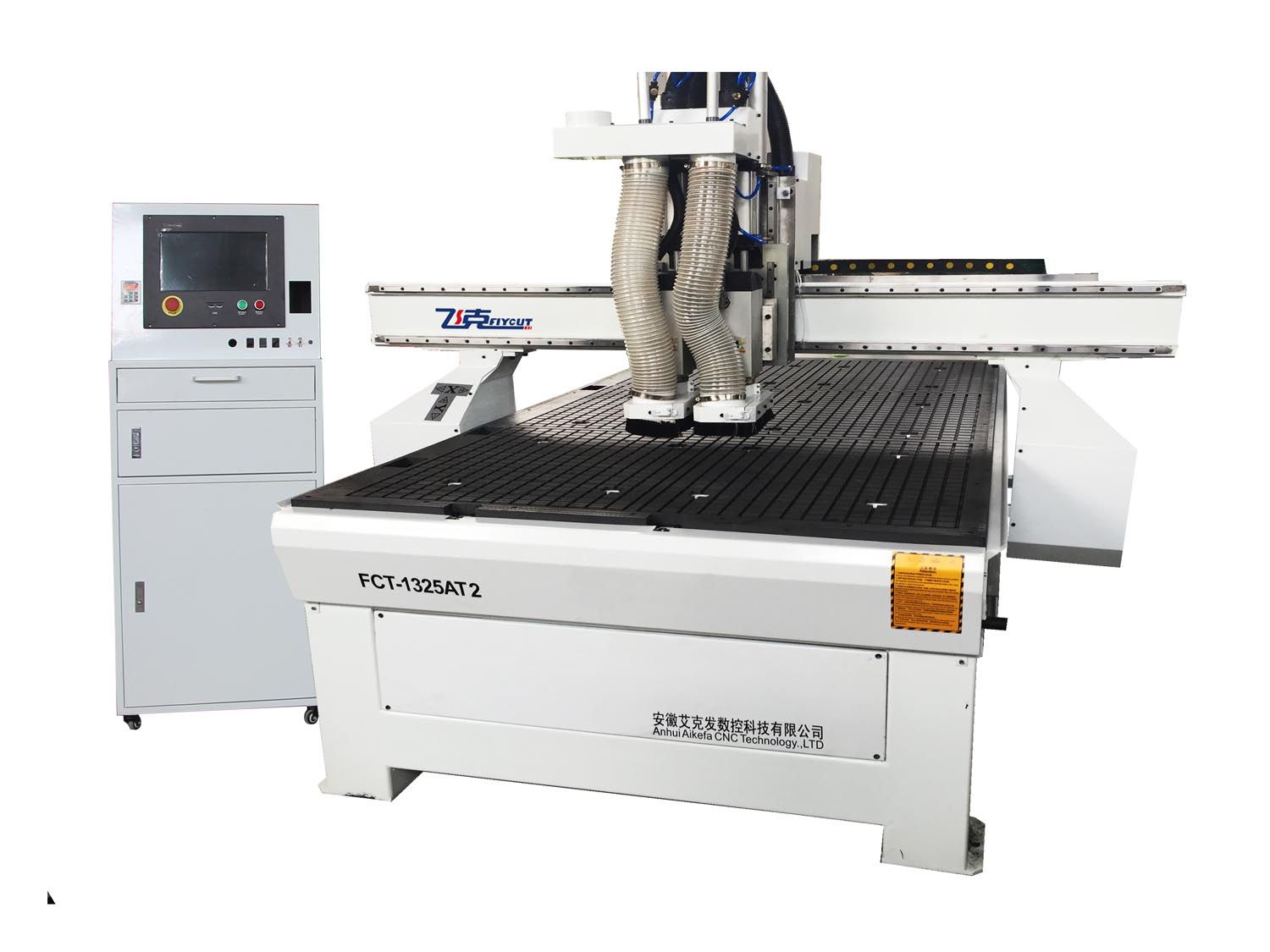

CNC Wood Engraver, CNC Router Machine Which Have Auto Change Spindle, Fast Processing Speed

CNC Wood Engraver, CNC Router Machine Which Have Auto Change Spindle, Fast Processing Speed
Price: US $ 9100-9300SET/SETS
Trade Terms: FOB,CFR,CIF
Min Order: 1SET/SETS
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FCT-1325W-AT2
Markets: North America,South America,Southeast Asia
Table Size: 1600X2640mm
Working Size: 1300X2500X200mm
Spindle Rotate: 6000~24000rpm
Engraving Speed: 12000mm/Min
Spindle Layout: Horizontal
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: Triple-Spindle

Product Description


Features:

1.This machine use 2 different tools for carving different design on wood,no need to change tools manually.It is easy to operate and make programme.
2.Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows,cabinets.
3.5.5kw water cooling spindle,much lower noise with rather big cutting power.
4.The working tabe surface adopts vacuum system to fix processing piece when engve or cut.
5.Independent Z axis structuer,2 air cylinders,high accuracy ball screw.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7.High quality driver motors, spindle motors, cables, inverters, etc.
8.Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special configuration:
Servo motor and driver, large models, imported spindles, etc.

Technical Parameters:

Model
FCT-1325W-AT2
Table size1600×2640mm
Working size1300×2500×200mm
Spindle powerNO.1 &NO2 spindle 5.5kw water cooling
Z axis structureIndependent Z axis,3 air cylinders,high accuracy ball screw
Spindle rotate6000-24000rpm
Motor driverStepper motor(Chinese servo motor or imported servo motor is optional)
Tool diameter3.175, 4, 6, 12.7mm
Machine structureIndustry square tube structure
TransmissionAccuracy gear rack
XYZ railsImported square rails
Mechanical accuracy<0.03/300mm
Data transmissionPC connection directly
Support formatG code or HPGL
Engraving speed12000mm/min
Working voltageAC220V/50Hz or 380V/50Hz
Net weight1200kg
