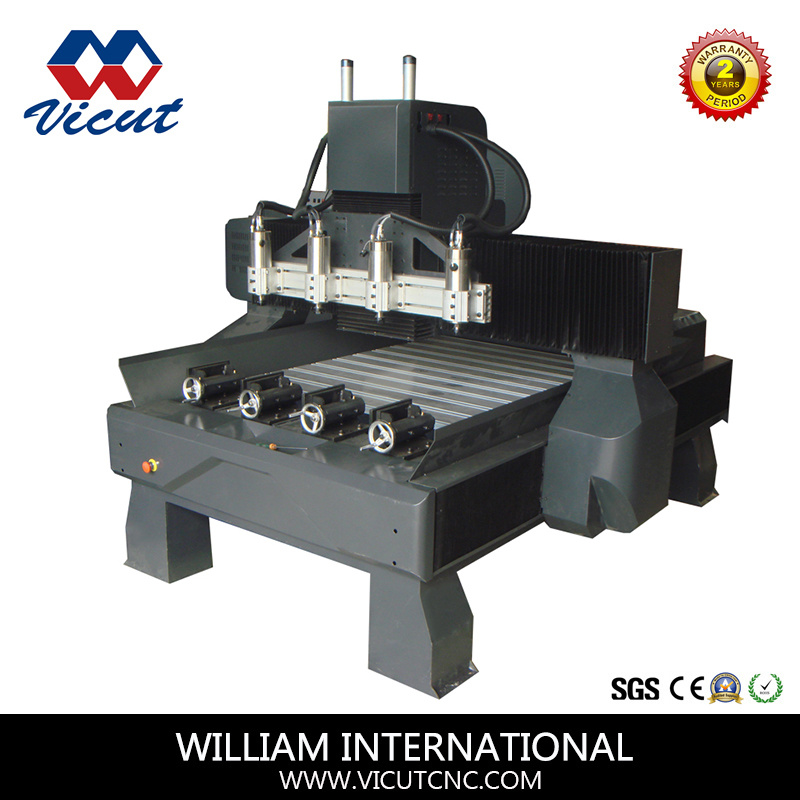

CNC Router Furniture Carving Rotary 3D Wood Router Wood Cutting Machine Engraving Machine
Price: |
US $ 4528-13584/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
VCT-7090R-4H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Size(X*Y): |
1000×940mm |
Spindle Power: |
Water Cooling 1500W×4PCS |
No. Of Rotary: |
4 PCS |
No. Of Motors & Drivers: |
7PCS Stepper Motors in Total |
3D Rotary Working Size: |
900mm(Length)*170mm(Rotary Diameter) |
Rotary Transmission: |
Belt Transmission |
Controlling Mode: |
CNC |
Customized: |
Customized |
Color: |
Customized |
Spindle Number: |
Four-Spindle |
Product Description

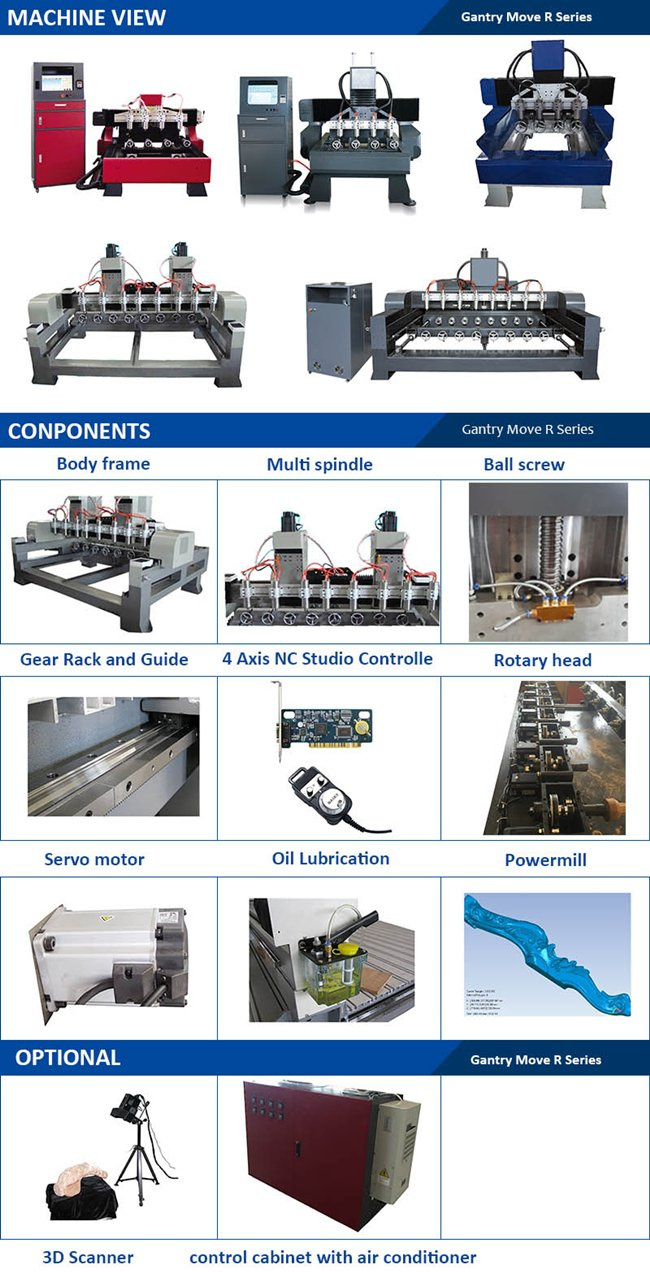

Multiple Rotary CNC Wood Router(R Series)
Features: - Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
2. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time to realize 3D rotary engraving column material.- Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
- Use gear rack locking system instead of common screws to adjust and fix the rotary device, more tight and stable.
Applications:
Material: engraving and cutting on various column materials, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters: Model | VCT-1590R-4H | VCT-3512R-6H | VCT-2512R-8H | VCT-2013R-2Z-8H |
Dimension(X*Y) | 1100×1500mm (3.6'x4.9') | 2600 x 2000mm (8.6'x6.6') | 2500 x2000mm (8.2'x6.6') | 2100×2000mm (6.9'x6.6') |
3D Rotary Working Size | 900mm(length) x 150mm(rotary diameter) | 1200mm(length) x 350mm(rotary diameter) | 1200mm(length) x 250mm(rotary diameter) | 1300mm(length) x 200mm(rotary diameter) |
Spindle Power | 1500W×4PCS | 2200W×6PCS | 2200W×6PCS | 2200W×8PCS |
No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 8 PCS |
Motor Driver | Stepper Motors (8pcs) | 6pcs Panasonic Servo Motors (2pcs support rotary, 1pcs for X axis, 1pcs for 2Z, 2pcs for Y axis) | 7pcs Panasonic Servo Motors (2pcs support rotary, 1pcs for X axis, 2pcs for 2Z, 2pcs for Y axis) |
Rotary Transmission | Belt Transmission | Gear box (reduction rate: 1:25) /Belts transmission is optional |
XYZ Transmission | TBI Ball Screw for XYZ axis | TBI Ball Screw 40mm for Z axis, High precision Gear Rack for XY axis |
Max Engraving Speed | 12000mm/m | 15000mm/minute |
Air Cylinder Support | Yes (300MM long air cylinder) |
Oil Lubrication system | Yes |
Tool Diameter | 4,6, 8, 12mm |
Body Structure | Thick steel tube welding |
Guiding Rails | XYZ Taiwan Linear Square Rails |
Reposition Accuracy | <0.03/300mm |
Spindle Speed | 6000~24000rpm |
Controller | 4 axis NC Studio Controller with handle wheel ( PC control ) |
Format of instructions | G code or HPGL |
Voltage | 380V/60Hz or 220V/50HZ |
Weight | 600KG | 2500KG | 2100KG | 2000KG |
Packing size(L*W*H) | 1485x 1300x1750mm ( 3.38CBM) | 4200x2200x2200mm (20CBM) | 2700×2200×2200mm(13.1CBM) | 2700×2200×2200mm(13.1CBM) |
