| Prod Model: |
VCT-TM2515FR-8H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2D Working Size: |
2500×1500×250mm |
| Spindle Power: |
Water Cooling 2200W×8PCS |
| No. Of Motors & Drivers: |
5PCS Panasonic Servo Motors in Total |
| Rotary Transmission: |
Gear Box (Reduction Rate: 1:25) |
| 3D Rotary Working Size: |
1000mm(Length)*250mm(Rotary Diameter) |
| Xyz Transmission: |
Z Ball Screw, Xy Gear Rack |
| Guiding Rails: |
Xyz Imported Linear Square Rails |
| Max Engraving Speed: |
15000mm/M |
| Controller: |
4 Axis Nc Studio Controller( Use Computer to Contr |
| Format Of Instructions: |
G Code or Hpgl |
| Spindle Layout: |
Spindle Underneath |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
RoHS |
| Spindle Number: |
Eight-Spindle |
Product Description

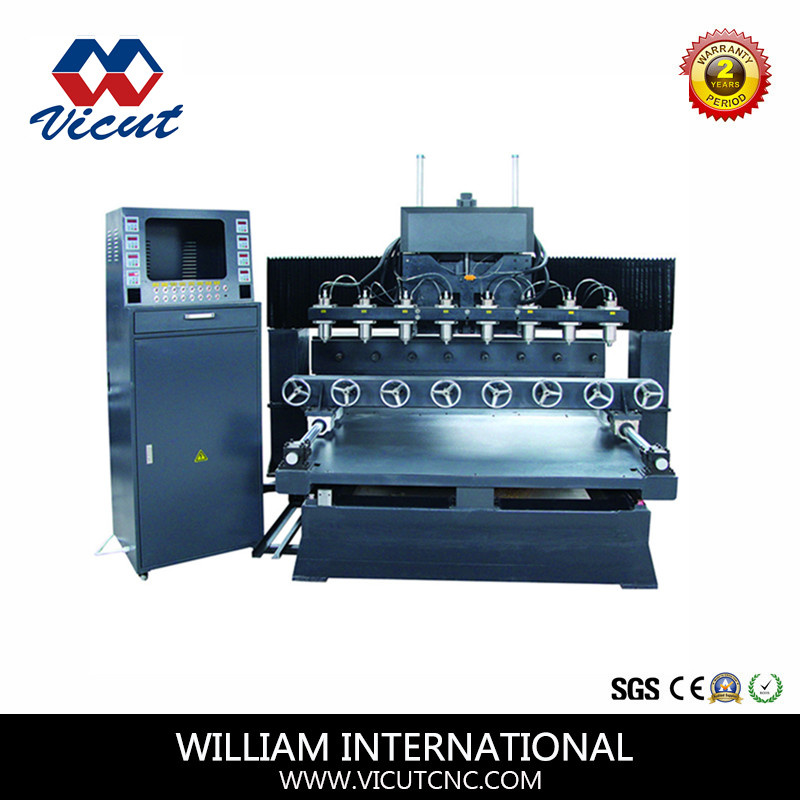

Table Move Flat & Rotary CNC Carving machine
Features:
1.Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2.Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3.Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
2D/3D Flat & Rotary CNC Carving Router
Features:

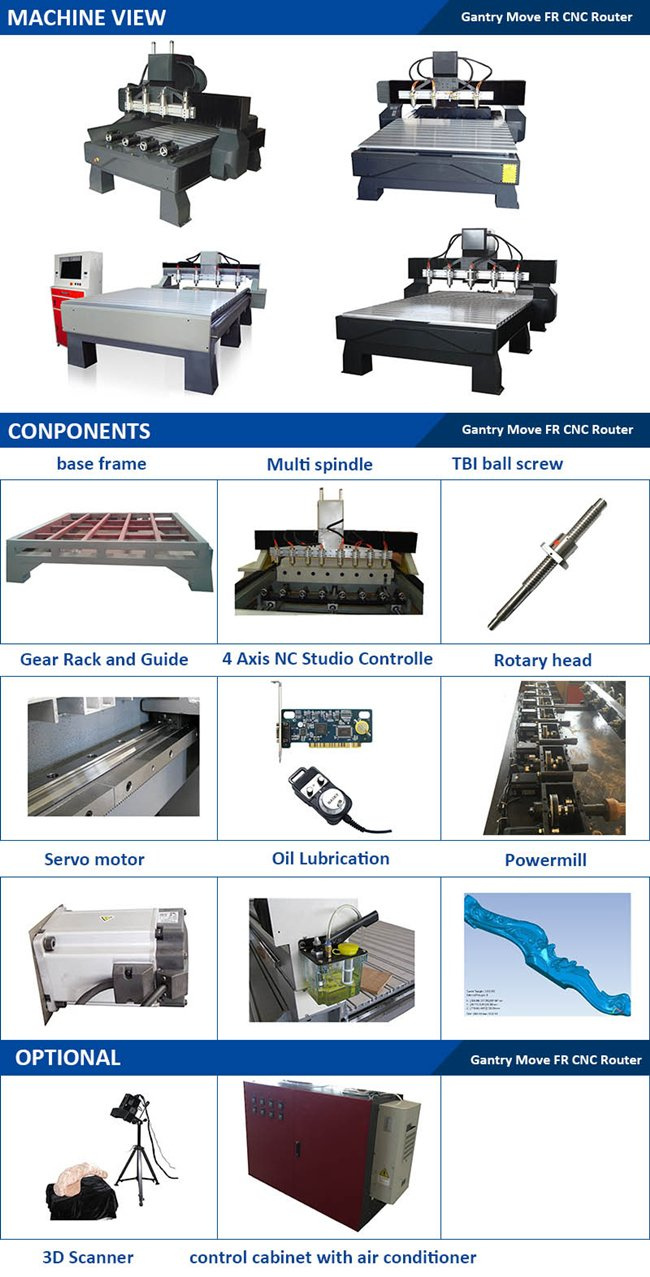

1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:| Model | VCT-1518FR-4H | VCT-1525FR-6H | VCT-2225FR-8H | VCT-3230FR-2Z-10H | | Dimension | 2000×2200mm (6.6'x7.2') | 2000×2900mm (6.6'x9.5') | 2700×2900mm (8.9'x9.5') | 3700×3400mm
(12.1'x11.1') | | 2D Working Size | 1500×1800×200mm
(4.92'x5.90'x0.66') | 1500×2500×200mm
(4.92'x8.20'x0.66') | 2200×2500×200mm
(7.2'x8.20'x0.66') | 3200 x3000×20 mm
(10.5' x 9.8' x 0.66') | | 3D Rotary Working Size(L*D) | 1500 x 250mm | 2000 x 250mm | 2000 x 250mm | 2000 x 250 mm | | Spindle Power | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw | Water cooling 2.2kw | | No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 10 PCS | | No. Of Motors & Drivers | 8pcs stepper motors (servo is optional) | 10pcs stepper motors (servo is optional) | 6pcs Panasonic/Schneider Servo Motors | 7pcs Panasonic /Schneider Servo Motors | | Air Cylinder Support | Yes (300MM long air cylinder) | | Oil Lubrication system | Yes | | Tool Diameter | 4,6, 8, 12mm | | Body Structure | Heavy-duty steel tube welding | | XYZ Transmission | XZ TBI ball screw, Y gear rack | | Guiding Rails | XYZ PMI or HIWIN linear square rails | | Reposition Accuracy | <0.03/300mm | | Max Engraving Speed | 12000mm /m | 15000mm /m | | Spindle Speed | 6000~24000rpm | | Controller | 4 axis NC Studio controller with handle wheel( use computer to control the machine) | | Format of instructions | G code or HPGL | | Voltage | 380V/60Hz or 220V/50HZ | | Weight | 800KG | 1500KG | 2500KG | 3000KG | | Packing size | 1485x 1950x1750mm ( 5CBM) | 1900×2200×2200mm(9.2CBM) | 3000×2200×2200mm(15CBM) | 4200x2200x2200mm (21CBM) |
