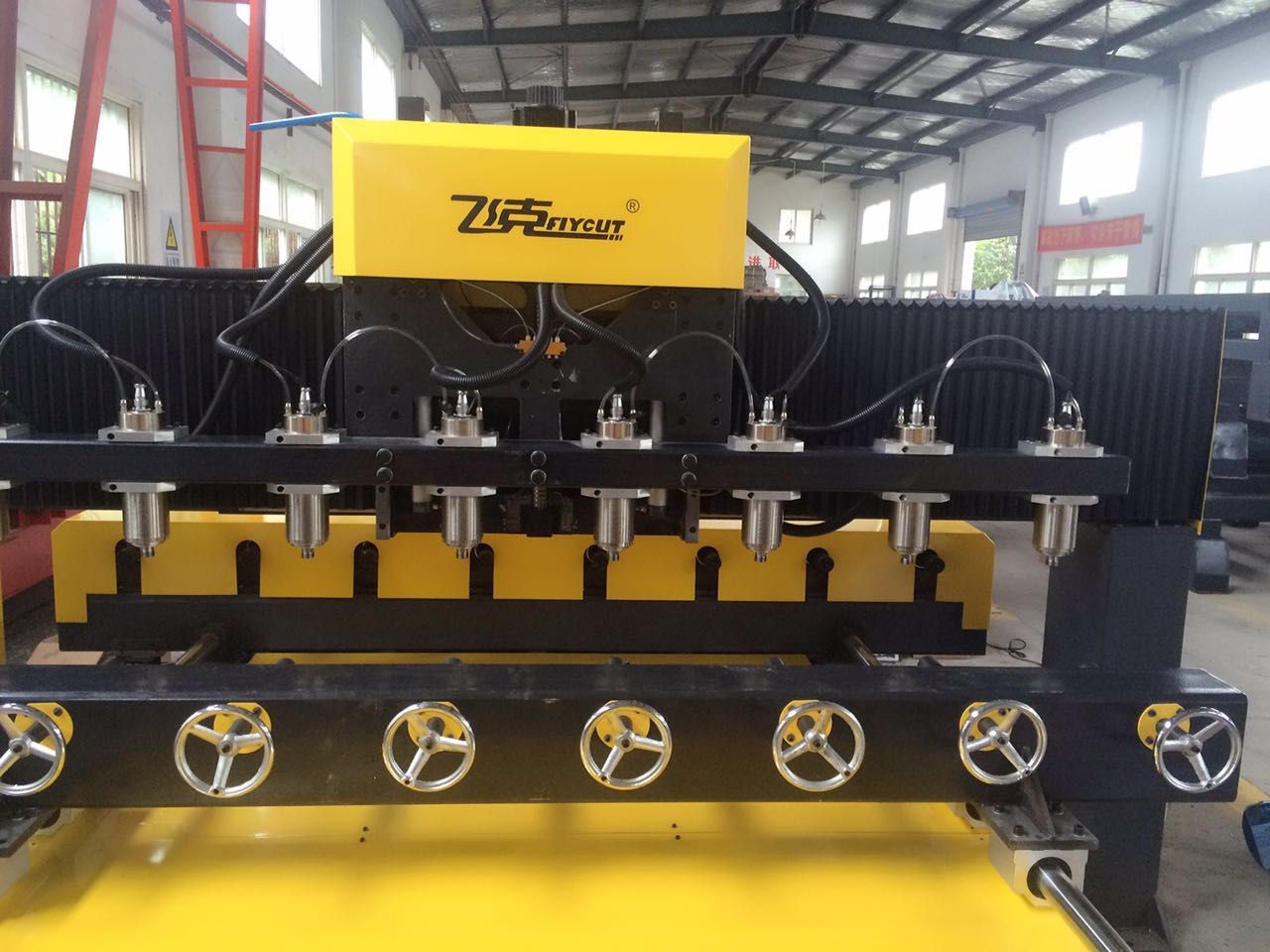

CNC Router, CNC Multi-Heads Engraver

Prod Model:	FCT-2515C&W-8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flat Orking Size:	2150*1500*200mm
Rotary Length:	1500mm
Rotary Diameter:	250mm
Spindle Power:	Water Cooling 2.2kw*8
Spindle Speed:	6000~24000rpm
Motor:	Stepper
Control System:	4 Axis Ncstudio
Inverter:	Fuling
Transmission:	Taiwan Tbi Ball Screw
Guide Rails:	PMI Square Rails

Product Description


Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Technical Parameters:

Model	FCT-2515C&W-4S
Rotary diameter	250
Rotary length	1500mm
Flat working size	2150×1500×200mm
Spindle power	Water cooling 2200W×8
Spindle rotate	6000~24000RPM
Tool diameter	3.175,6,12.7mm
Machine structure	Industry square tube structure
Transmission	TBI ball screw
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraveing speed	10000mm/min
Data transmission	by pc connection directly or USB
Support format	G code or HPGL
Working voltage	AV220V/380V 50Hz
Net weight	3500kg

The reason that you choose us :
1. One year warranty for the whole machine and maintenace for lifetime.
2. Free installation,testing,training before shipping .
3. Advice for the best solutions for your requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
6. All the components are from well-known international brands and undergo a rigorous assessment.
7.Under normal usage, 1 year for whole machine,lifelong technical surpport.
8.Free technical support for lifetime, including training at factory, door to door service, such as training & installment & adjustment & maintainence and so on.
9.Door to door service, buyer just need to bear round-trip tickets and accommodation.
