| Price: | US $ 8400-8500/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

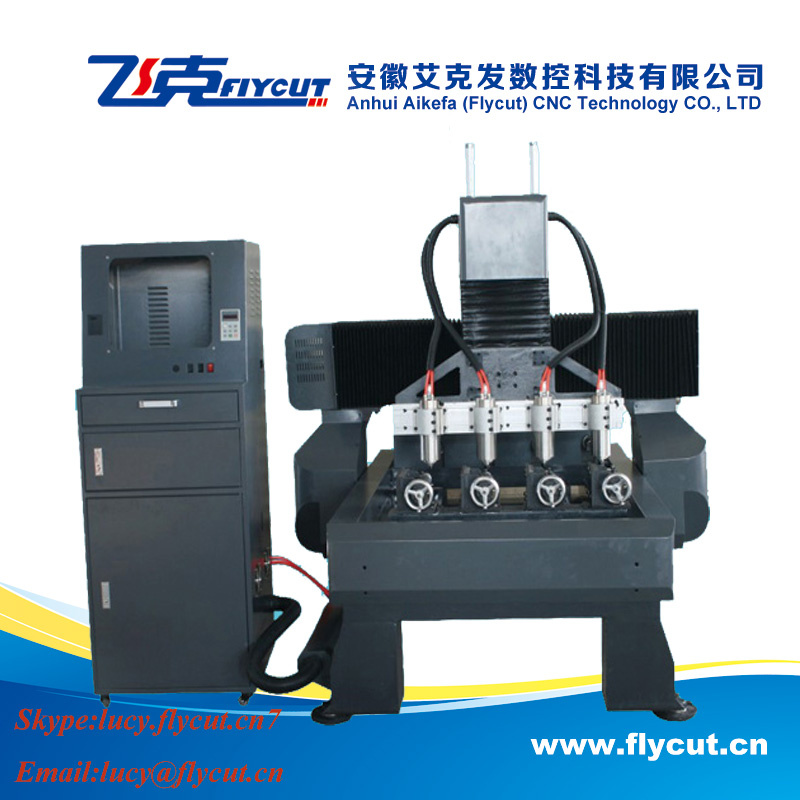

| Prod Model: | FCT-7090C&W-4S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 4 Head Rotary Carving Machine: | Rotary Engraving |
| CNC Rotary Router: | CNC Rotary and Flat Engraver |
| Small Machine: | Engraver Router |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Spindle Number: | 4 Spindles |
Features:
1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability
2. The Special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide ,ensure the high accuracy .
5. The professional mechanical design, scientific structure and generous appearance.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7. High quality driver motors, spindle motors, cables, inverters, etc.
8. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraving accuracy.
9. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Applications:
Rotary engraving: making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving:Antique reproduction furniture , Solid wood carving, arts and crafts carving, ornamental engraving, furniture- processing , instrument making ,etc.
Special Configurations: Customized model machine, imported spindles, servo motors, oil lubrication system, 6--12 spindle heads, etc.
| Model | FCT-7090C&W-4S | FCT-1618C&W-4S | FCT-1625C&W-4S |
| Rotary diameter | 230mm | 230mm | 230mm |
| Rotary length | 800mm | 1300mm | 2000mm |
| Flat working size | 700×900×200mm | 1600×1800×200mm | 1600×2500×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 2200W×4 |
| Spindle rotate | 6000--2400rpm | ||
| Motor driver | Chinese servo motor | ||
| Tool diameter | 3.175,4,6mm | ||
| Machine structure | Industry square tube structure | ||
| Transmission | X Z ball screw, Y high accuracy gear rack | ||
| XYZ rails | PMI square rails | ||
| Dust-proof system | XYZ high quality dust cover | ||
| Mechanical accuracy | Less than 0.03/300mm | ||
| Engraveing speed | 8000mm/min | ||
| Data transmission | PC-connection directly | ||
| Support format | G code or HPGL | ||
| Working voltage | AC220V/50Hz or 380V/50Hz | ||
| Net weight | 600kg | 1000kg | 1200kg |
