| Prod Model: |
FCT-7090C&W-4S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor And Driver: |
Stepper Motor and Driver |
| Control System: |
Original Nc Studio 74A Card |
| Transmission: |
Xyz Tbi Ball Screw, Z Gear Rack |
| Xyz Rails: |
Pmi Square Rails |
| Spindle Power: |
1500W X 4 |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
4 Spindles |
Product Description

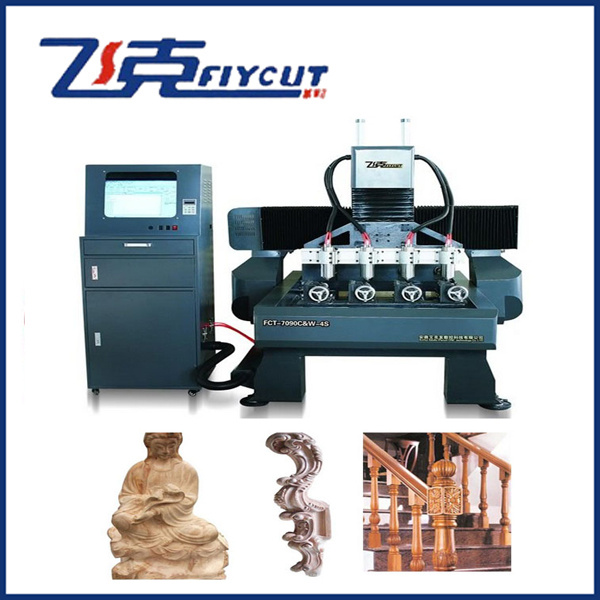

CNC Flat-Rotary Multi-heads Engraver
Features:
The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
The major machine body makes the stability and no shacking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
The professional mechnical design, scientific structure and generous appearance.
XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.
High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.
Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors. Oil lubrication system, 6- 12 spindle heads, etc.
If you have any question, pls contact with me:
Alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
Technical Parameters:
| Model | FCT-7090C&W-4S | FCT-1618C&W-4S | FCT-1625C&W-4S |
| Rotary diameter | 230 | 230 | 230 |
| Rotary length | 800mm | 1300mm | 2000mm |
| Flat working size | 700×900×200mm | 1600×1800×200mm | 1600×2500×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 2200W×4 |
| Spindle rotate | 6000--2400rpm |
| Motor driver | Chinese servo motor or France servo motor |
| Tool diameter | 3.175, 4,6 |
| Machine structure | Industry square tube structure |
| Transmission | XY ball screw, Yhigh accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | 0.03/300mm |
| Engraveing speed | 8000mm/min |
| Data transmission | PC-connecation directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 600kg | 100kg | 1200kg |
