CNC Engraving Machine 4 Axis CNC Wood Router

Name: CNC Engraving Machine 4 Axis CNC Wood Router
Brand: thisfurniture.com
SKU: 771697925
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 10300-10800set/sets
Trade Terms:	FOB,CFR,CIF
Min Order:	1set/sets
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FCT-1625C&W-4S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flat Working Size:	16001200200mm
Rotary Diameter:	230mm
Rotary Length:	1300mm
Spindle Type:	Water Cooling
Spindle Power:	1.5kw *8
Spindle Speed:	6000~24000rpm
Motor:	Stepper
Control System:	4 Aixs Ncstudio

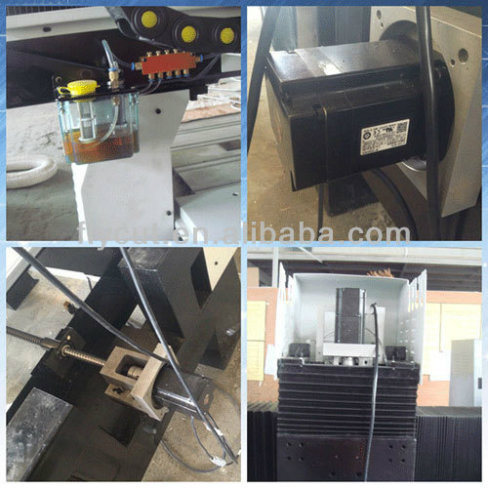

Transmission:	Xy Ball Screw, Y High Accuracy Gear Rack
Guide Rails:	PMI Square Rails

Product Description

Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Technical Parameters:

Model	FCT-1625C&W-4S
Rotary diameter	230
Rotary length	1000mm
Flat working size	1600×1200×200mm
Spindle power	Water cooling 1500W×4
Spindle rotate	6000~24000RPM
Tool diameter	3.175,4,6mm
Machine structure	Industry square tube structure
Transmission	XY ball screw, Y high accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraveing speed	8000mm/min
Data transmission	by pc connection directly or USB
Support format	G code or HPGL
Working voltage	AV220V/380V 50Hz
Net weight	1000kg

FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and the balance paid to us before delievery date.

2.How long is thedelievery time?
For standard machines, it would be 7 days; For non-standard machines and customized machines, according to clients specific requirements, it would be 14~25 days.

3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.

4.What about the packing?
Water-proof plastic film package with foam protection in each corner.

If you are not sure which machine you should choose,kindly afford us the following information.Suitable machine will be recommended to you.
1)What materials do you want to engrave or cut?2) 2)What's the max. size of the materials (Length*Width*Thickness)?
