| Prod Model: |
FCT-1325W-AT3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1600X2640mm |
| Working Size: |
1300X2500X200mm |
| Spindle Rotate: |
6000~24000rpm |
| Engraving Speed: |
12000mm/Min |
| Spindle Power: |
3.7kw+5.5kw |
| Motor: |
Stepper |
| Control System: |
Ncstudio |
| Inveter: |
Fuling |
| Transmission: |
Gear Rack |
| Guide Rails: |
PMI Square Rails |
| Type: |
Wooden Mold Router |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
| Color: |
Iron Grey |
| Spindle Number: |
Triple-Spindle |

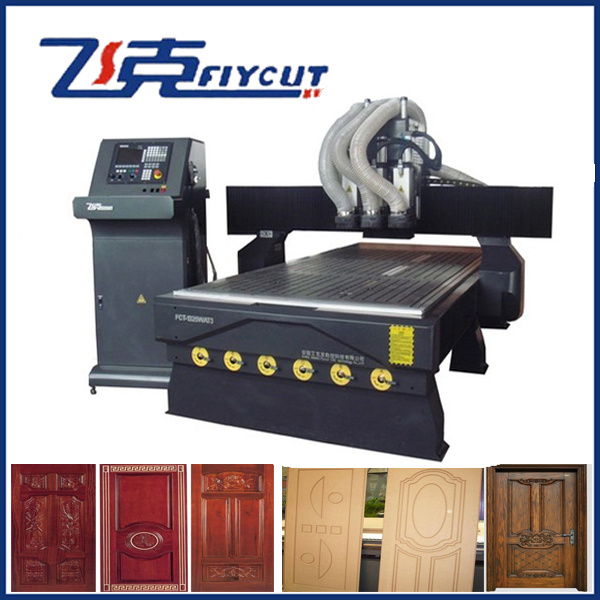

Product Description
Features:
1.This machine use 3 different tools for carving different design on wood,no need to change tools manually.It is easy to operate and make programme.
2.Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows,cabinets.
3.No.1 spindle with 5.5kw air cooling,No.2 and No.3 with 3.7 kw air cooling,big cutting power.
4.The working tabe surface adopts vacuum system to fix processing piece when engve or cut.
5.Independent Z axis structuer,3 air cylinders,high accuracy ball screw.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7.High quality driver motors, spindle motors, cables, inverters, etc.
8.Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Special configuration:
Servo motor and driver, large models, imported spindles, etc.
Tips to choose suitable machine:
1)What materials do you want to engrave or cut?
2)What's the max. size of the materials (Length*Width*Thickness)?
Model | FCT-1325W-AT3 |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | NO.1 spindle 5.5kw air cooling,NO.2&3 spindle 3.7kw air cooling |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | <0.03/300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 2000kg |
FAQS:
1.How about the payment?
T/T in advance.We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is thedelievery time?
For standard machines, it would be 7 days;For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.
