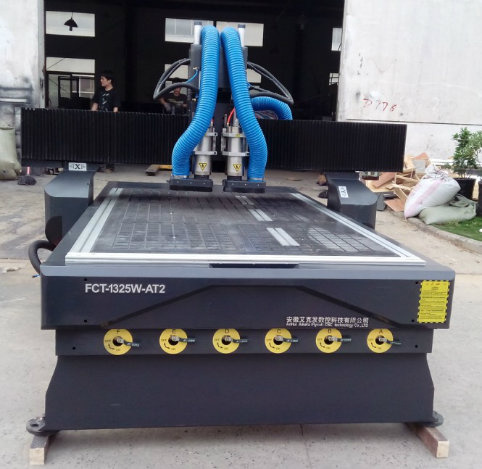

CNC Auto Change Spindle Wood Router

Name: CNC Auto Change Spindle Wood Router
Brand: thisfurniture.com
SKU: 750645845
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 9100-9300SET/SETS
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET/SETS
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FCT-1325-AT2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size:	1600X2640mm
Working Size:	1300X2500X200mm
Spindle Rotate:	6000~24000rpm
Vacum Pump:	5.5kw Water Cooling
Spindle Layout:	Horizontal
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO

Product Description

Features:

1.Intelligent linear ATC System, change tools fast and easily with 6~10 pieces auto tool changer.
2.Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows.

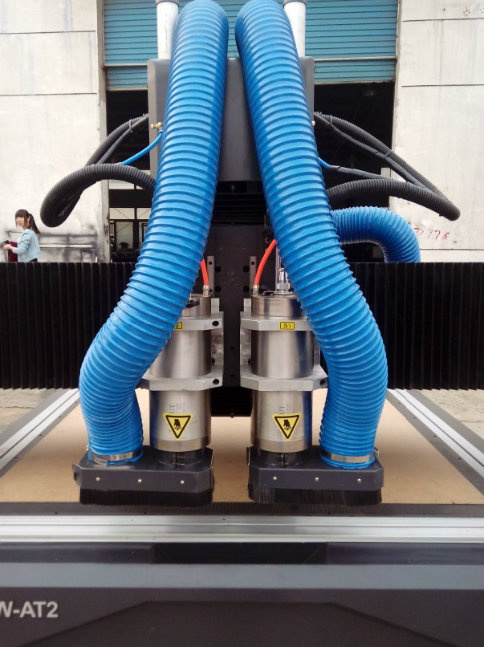

3.5.5kw water cooling spindle,big cutting power and low noise.
4.Table surface using vacuum system (option: T-slot and vacuum table)
5.Z with ball screw and XY all apply imported gear rack, high precision gear frame and linear square guide, ensure the high accuracy.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7.High quality driver motors, spindle motors, cables, inverters, etc.
8.Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special configuration:
Servo motor and driver, large models, imported spindles, etc.

Technical parameters:

Model	FCT-1325W-AT2
Table size	1600×2640mm
Working size	1300×2500×200mm
Spindle power	5.5kw water cooling,
Z axis structure	Independent Z axis,3 air cylinders,high accuracy ball screw
Spindle rotate	6000-24000rpm
Motor driver	Stepper motor(Chinese servo motor or imported servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	Accuracy gear rack
XYZ rails	Imported square rails
Mechanical accuracy	<0.03/300mm
Data transmission	PC connection directly
Support format	G code or HPGL
Engraving speed	12000mm/min
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	2000kg

The reason that you choose us :
1. One year warranty for the whole machineand maintenace for lifetime.
2. Free installation,testing,training before shipping .
3. Advice for the best solutions for your requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
