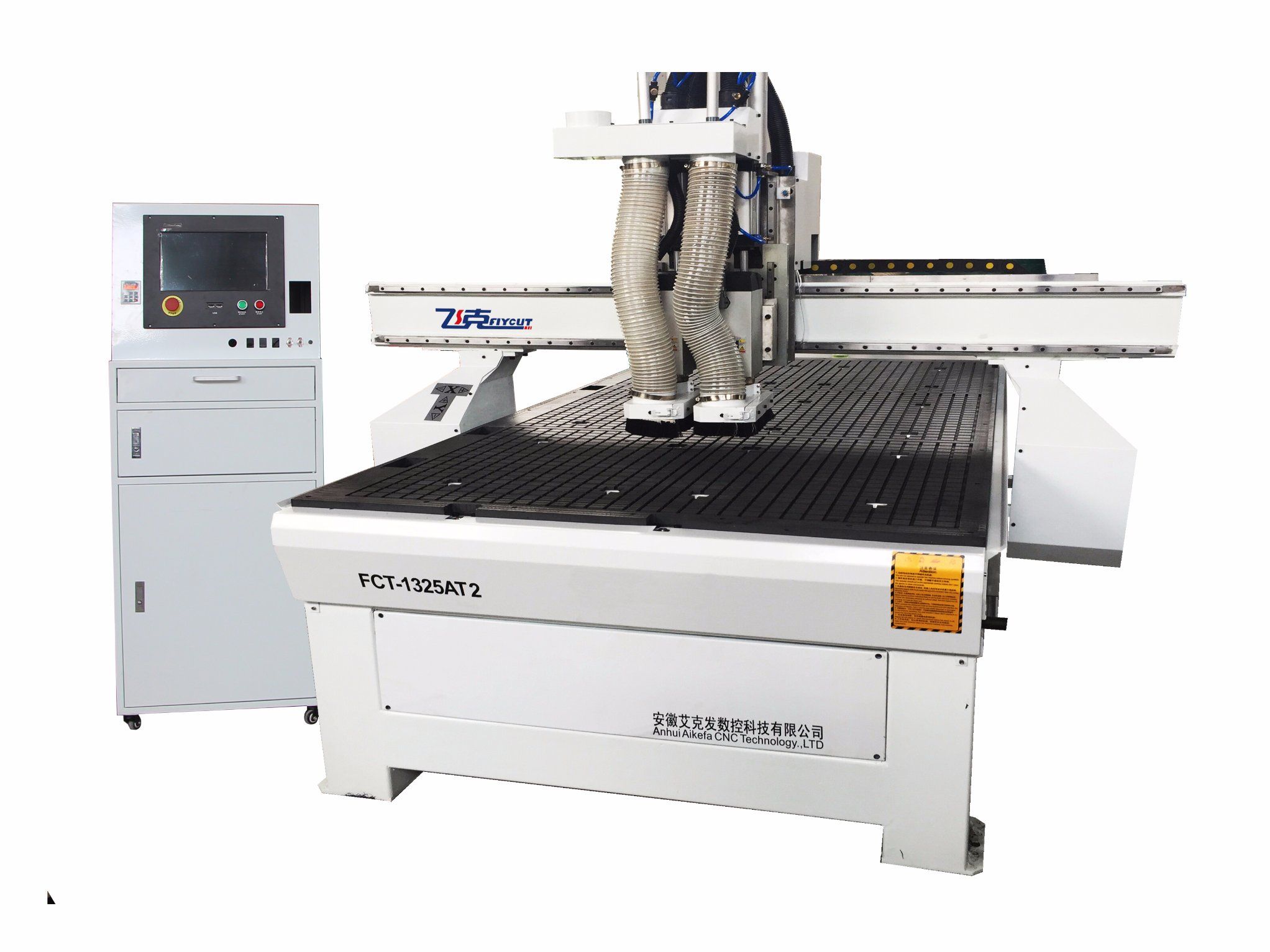

CNC Atc Wood Engraver Router

Prod Model:	FCT-1325W-AT2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area:	1300*2500mm
Spindle:	7.5kw/6kw/4.5kw
Controller System:	Original Nc Studio
Alarm:	Emergency Stop
Spindle Layout:	Horizontal
Spindle Number:	Double-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO

Product Description

Features:
1. This machine use 3 different tools for carving different designs on wood, no need to
Change tools manually, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability
3. The Special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical design, scientific structure and generous appearance.
7. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters, etc.
9. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraving accuracy.
10. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Applications:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making, instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special Configuration:
Servo motor and driver, large models, imported spindles, etc.
if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory

Model	FCT-1325W-AT2
Table size	1600×2640mm
Working size	1300×2500×200mm
Spindle power	spindle 5.5kw*2 air cooling
Z axis structure	Independent Z axis,3 air cylinders,high accuracy ball screw
Spindle rotate	6000-24000rpm
Motor driver	Stepper motor(Chinese servo motor or imported servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	Accuracy gear rack
XYZ rails	Imported square rails
Mechanical accuracy	300mm
Data transmission	PC connection directly
Support format	G code or HPGL
Engraving speed	12000mm/min
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1200kg
