| Prod Model: |
BSC-1500IIIX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size (W × D × H): |
1340*850*2100mm |
| Internal Size (W × D × H: |
1240*650*650mm |
| Gloves: |
One Pair 800mm Butyl Rubber Gloves |
| Air Velocity: |
440 ~ 870 Cfm |
| Negative Work Zone Pressure: |
- 120 PA |
| Pre-Filter: |
Polyester Fiber, Washable |
| Noise: |
≤ 63 Db |
| Front Window: |
Toughened Glass, Thickness Is No Less Than 8 Mm |
| Display: |
LCD |
| Power: |
110V~240V/50Hz~60Hz(Optional) |
Product Description

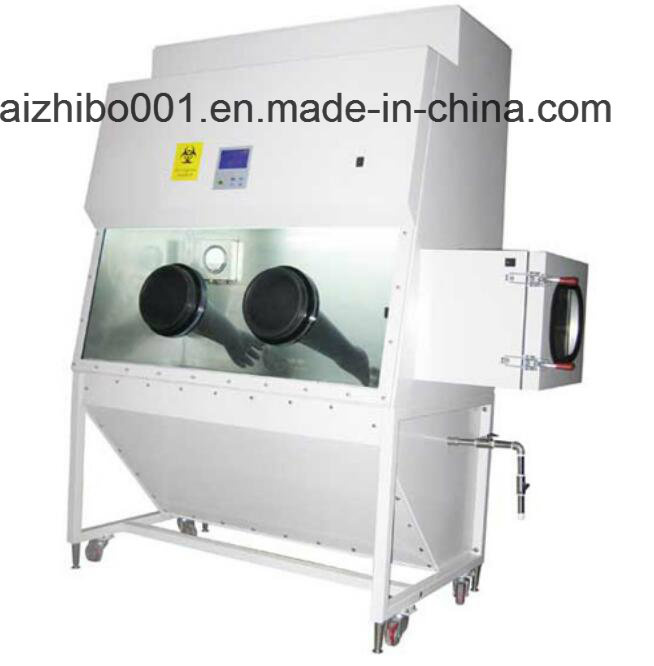

Class III Biosafety Cabinet
Our Class III Biosafety Cabinet is 100% air exhaust, no air recirculation, the air is exhausted by three ULPA filters and to the room directly. All operation is full sealed through a pare of quality gloves.
If the air needs to be exhausted to outdoors, another out connected duct need to be ordered, and extra duct and motor are required.
Main Advantages for our Safety Cabinet
1. Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.12μ M particles, better than HEPA filters.
2.10° Slope font allows an ergonomics design, fatigue-free working posture.
3. Cabinet operates at negative pressure relative to the laboratory in order to prevent migration of pathogenic materials out of the work area.
4. It effectively sterilizes work area with UV installed inside.
Production Standard
1, US Standard ANSI/NSF49: 2002; 2, European Standard EN12469: 2000; 3, Chinese Standard YY0569-2005 Certificates ApprovedISO9001, ISO14001, ISO13485, CE
| Model | BSC-1100IIIX | BSC-1500IIIX |
External Size
(W × D × H) | 1100*800*1600mm | 1340*850*2100mm |
Internal Size
(W × D × H) | 750*560*600mm | 1240*650*650mm |
| Pass Box Size | Internal Size: 390*380*330 mm | Internal Size: 390*380*330 mm |
| External Size:470*420*400mm | External Size:480*400*400mm |
| Gloves | One pair 800mm butyl rubber gloves |
| Material | Work Surface: 304 stainless steel |
| Body: Expoxy coated cold-rolled steel |
| Air Velocity | 240 ~ 470 cfm | 440 ~ 870 cfm |
| Negative Work Zone Pressure | - 120 Pa |
| Pre-filter | Polyester fiber,Washable |
| Main Filter | Air supply filter: ULPA filter 99.999% efficient(0.12 microns) |
| First exhaust filter: ULPA filter 99.999% efficient(0.12 microns) |
| Second exhaust filter: ULPA filter 99.999% efficient(0.12 microns) |
| Noise | ≤ 63 dB |
| Front Window | Toughened glass, thickness is no less than 8 mm |
| Display | LCD |
| Alarm | Visual and audio alarm |
| Lighting | ≥ 800 lux |
| UV lamp | 20W *1,8W *1 | 30W * 8W *1 |
| Fluorescent | 14W * 1 | 28W*2 |
| Power | 110V~240V/50Hz~60Hz(Optional) |
| Accessories | Gloves, fluorescent light, UV lamp, exhaust duct |
Our mission is to supply solution for Safety and Application for human health as we have always done during the past. For this mission, Dragon Group has developed the complete solution for Cold Chain Medical, Bio-safety and also got some achievements in line of Clinic and First Aid products. HEPO INTERNATIONAL was invested for settling the increasing demand for productivity, the international sales and logistics for our group. We mainly supply the reliable products for domestic health during the past 8 years, and now we focus on the world health more and more. HEPO INTERNATIONAL will bear this mission and walk towards it closer and closer.
By the end of 2012, we have established branches in Henan, Shandong, Hunan. The annual output for cold chain medical equipments is more than 200, 000.00 units and 100, 000.00 units around for Bio-safety products. The staff quarters has been arrived 1200 square meters. All our factories have adopt the standard of ISO: 9001: 2008 and ISO13485 quality management system based on domestic relative production standard.
Our Products: Solution for Cold Chain Medical, Solution for Biosafety Products and Lad Construction, Solution for Clinical and Solution for First Aid Products. Through imported famous production equipment from Italy, Switzerland and Japan, etc to keep the excellent performance for our products. And the cooperations with famous universities and scientific research institution make us do better in high and new technology and got award for patent of utility model in many zones.
Our Success: We have able to help customers establish the intelligentize and remote control for cold chain medical, and the solution for high standard laboratory construction. We have done successful projects in U. K., Holland, Australia, South Africa, Algeria, Pakistan, etc.
