| Prod Model: |
BXC-2000IIA2-X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(Mm): |
1800*600*660 |
| External Size(Mm): |
1950*850*2200 |
| Max Opening: |
400mm |
| Display: |
LCD Display |
| Control System: |
Microprocessor |
| Airflow System: |
70% Air Recirculation, 30% Air Exhaust |
| Standard Base: |
635mm Height |
| Electrical Parameter: |
110~240V/50~60Hz (Optional) |
| Net Weight(Kg): |
380 |
| Package (Mm): |
2090*1050*1860 |
| Type: |
Biosafety Cabinet |

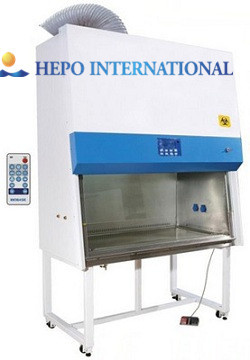

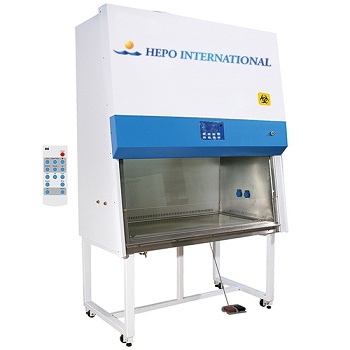

Product Description
The Class II biological safety cabinet is an open-front, ventilated cabinet with negative pressure inside. The Class II biological safety cabinet will provide personnel, environment and product protection.It's always used for doing dangerous experiments or infective experiments.
Main Advantages
1,Remote Control
All functions can be realized through it, the first choice for preventing cross contamination.Much Easy and Safe to control and operation the cabinet.
2,Foot Switch
You can use foot switch to adjust the height of the front window during the test,which is much convenient.It's our unique design.
3,Four Sides Air Course Design
The four side air course designing makes the work area all around surrounded by negative pressure.
4,Timer Reserve Function
Mush useful and safety function,such as the starting timer,the UV sterilization timer,etc.
5,Various Display Screen
Using VFD,LED,LCD digital displaying for various models according to different customers' needed.
6,Filter & UV Life Attention
It can be showed in our VFD display.
7,Safety Power Lock and Cabinet Lock
To make sure nobody else can use the cabinet without allow.
8,Motor Controlled Laminated Glass
Much safety once broken and better effect to prevent the UV light.
9,Audio and Visual Alarm Function (Filter replacement,window over height,air flow abnormal etc.)
10,Interlock Function:UV Lamp and front window,UV lamp and blower,fluorescent lamp,Blower and front window.
According to the performance criteria
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005
Parameters for Class II A2 Biological Safety Cabinet
Main Technical Parameters
Model |
BSC-1100IIA2-X |
BSC-1300IIA2-X |
BSC-1500IIA2-X |
BSC-1800IIA2-X |
BSC-2000IIA2-X |
Internal size(mm) |
900*600*660 |
1100*600*660 |
1300*600*660 |
1600*600*660 |
1800*600*660 |
External size(mm) |
1100*850*2200 |
1300*850*2200 |
1500*850*2230 |
1800*850*2300 |
1950*850*2200 |
Tested Opening |
Safety Height:≤200 mm |
Max Opening |
400mm |
Inflow Velocity/
Down Flow |
0.53 m/s;0.33 m/s |
Filter |
Two HEPA filter,99.999% efficient(0.3 microns) |
Front Window |
Two-layer toughened glass? >5mm |
Noise |
≤60 dB |
UV lamp |
18W×1 |
18W×1 |
30W×1 |
40W×1 |
40wX11 |
Fluorescent Lamp |
21W×2 |
21W×2 |
28W×2 |
28W×2 |
40WX2 |
Lighting (Lux) |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
Power(W) |
760 |
1060 |
1300 |
1350 |
1700 |
Water and Gas Tap |
Water Tap:1;Gas Tap:1.(Optional) |
Waterproof Socket |
Two,total consumption:500w |
Display |
LCD display |
Control System |
Microprocessor |
Airflow System: |
70% air recirculation,30% air exhaust |
Material |
Work zone interior is made of 304 stainless steel,
Body: Epoxy coated cold rolled steel |
Standard Base |
635mm height |
Caster Wheel |
Universal wheel with brake and leveling feet |
Electrical
Parameter |
110~240V/50~60Hz (optional) |
Net weight(kg) |
240 |
270 |
310 |
350 |
380 |
Gross weight(kg) |
255 |
305 |
350 |
390 |
420 |
Package (mm) |
1250*1050*1870 |
1450*1050*1870 |
1640*1045*1860 |
1940*1050*1960 |
2090*1050*1860 |
Standard Sets |
Remote control, Foot switch, UV lamp*2,Fluorescent Lamp,Base Stand,Drain valve
,Waterproof Sockets |
Optional
Accessory |
Armrest, Air curtain tester, Formalin fumigation sterilizer,
Ammonium hydrogen carbonate,
neutralizer,Infrared Sterilizer |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
