China Favorable Shaking Table Price
| Price: |
US $ 1700/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Shaking Table |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Feeding Granularity: |
2 Mm |
| Feeding Concentration: |
15-25 % |
| Distance: |
8-22 Mm |
| Frequency: |
15-57 F |
| Transverse Gradient: |
1-4.5 Deg |
| Benefication Area: |
7.6 |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
2T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
Product Description

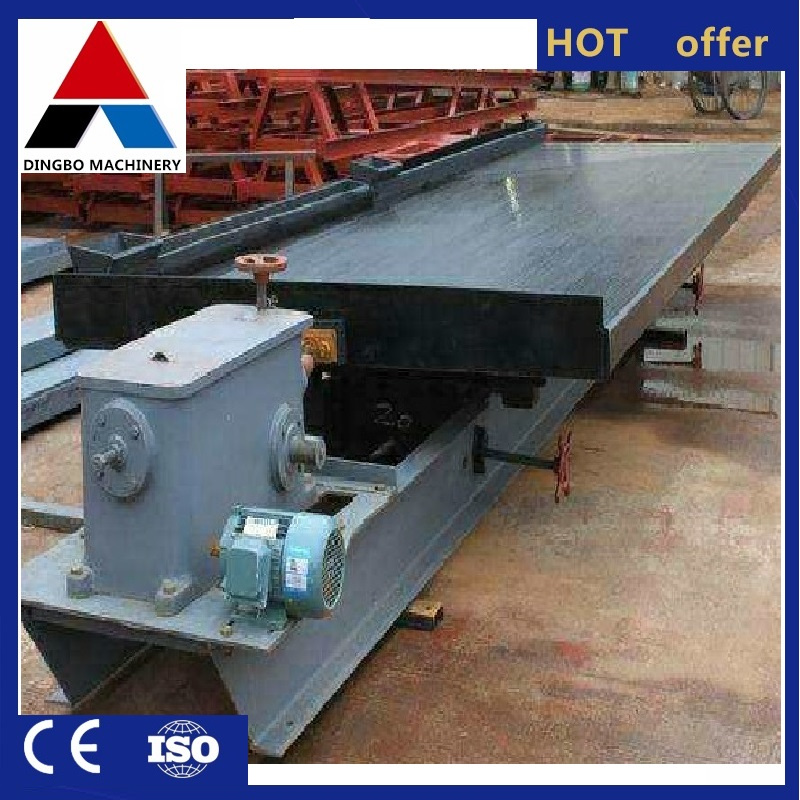

Shaking Table Price
It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
LS Gold Separator Gold Shaking Table (shaker table for gold) is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features. Shaking Table Price
spiral concentrator surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.
Main technical parameters
Name |
Unit |
Course ore Deck |
Fine sand
Deck |
Slime Deck |
Deck Size |
Length |
mm |
4450 |
4450 |
4450 |
transmission end width |
mm |
1855 |
1855 |
1855 |
Concentrate end width |
mm |
1546 |
1546 |
1546 |
Maximum Feeding Size |
mm |
2 |
0.5 |
0.15 |
Feeding Amount |
t/d |
30-60 |
10-20 |
15-25 |
Feeding Density |
% |
25-30 |
20-25 |
15-25 |
Stroke |
mm |
16-22 |
11-16 |
8-16 |
Frequency |
f |
45-48 |
18-53 |
50-57 |
Water added |
t/d |
80-150 |
30-60 |
10-17 |
Transverse slope of Deck |
° |
2°30-4°30 |
1°30-3°30 |
1°-2° |
Longitudinal slope of Deck |
° |
1.4 |
0.92 |
------ |
Beneficiation Area |
m2 |
7.6 |
7.6 |
7.6 |
Cross-section Shape of Deck |
|
rectangular |
saw tooth |
triangle |
Motor Power |
KW |
1.1 |
1.1 |
1.1 |
Transmission Mechanism |
|
Eccentric linkage |
LS Gold Separator Gold Shaking Table are effective gravity separation equipment which can be used for different operation such as rough selection, elaborate selection and scavenging for large, medium and small-sized factories and applies to the sorting of nonferrous metal, ferrous metal, rare and precious metal, gold and nonmetallic ores of fine grains. Such shaking tables are divided into ore sand tables and ore slime tables. Oresand tables apply to the sorting of coarse ores and ore slime tables apply to the sorting of fine ores. Shaking Table Price
concentrator table is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
