| Prod Model: |
LS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Feeding Granularity: |
2 Mm |
| Feeding Concentration: |
15-25 % |
| Distance: |
8-22 Mm |
| Type: |
Linear |
| Object: |
Ore |
| Shaft Number: |
Double |
| Condition: |
New |
Product Description

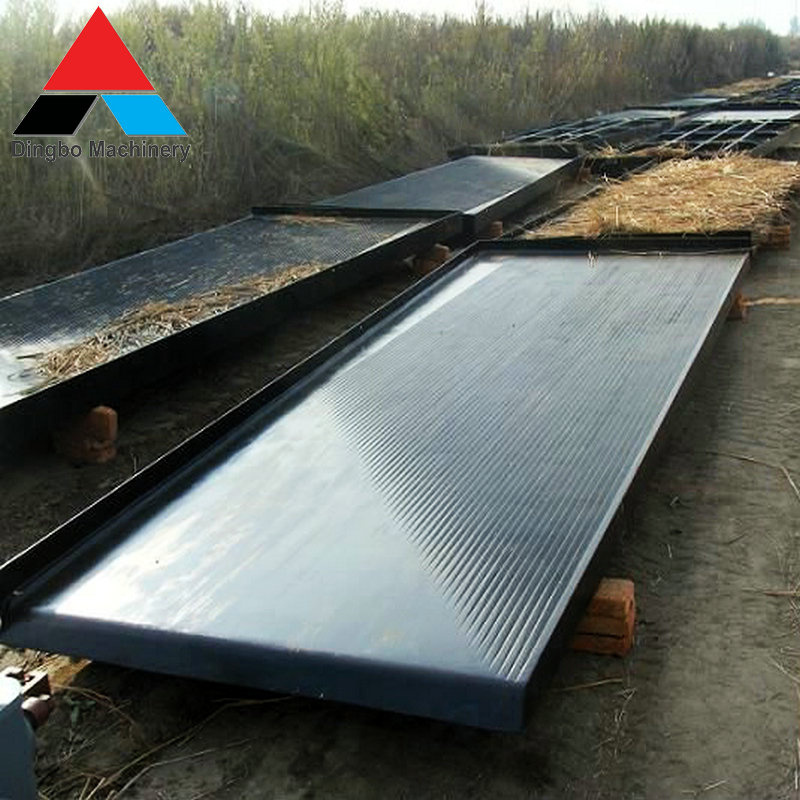

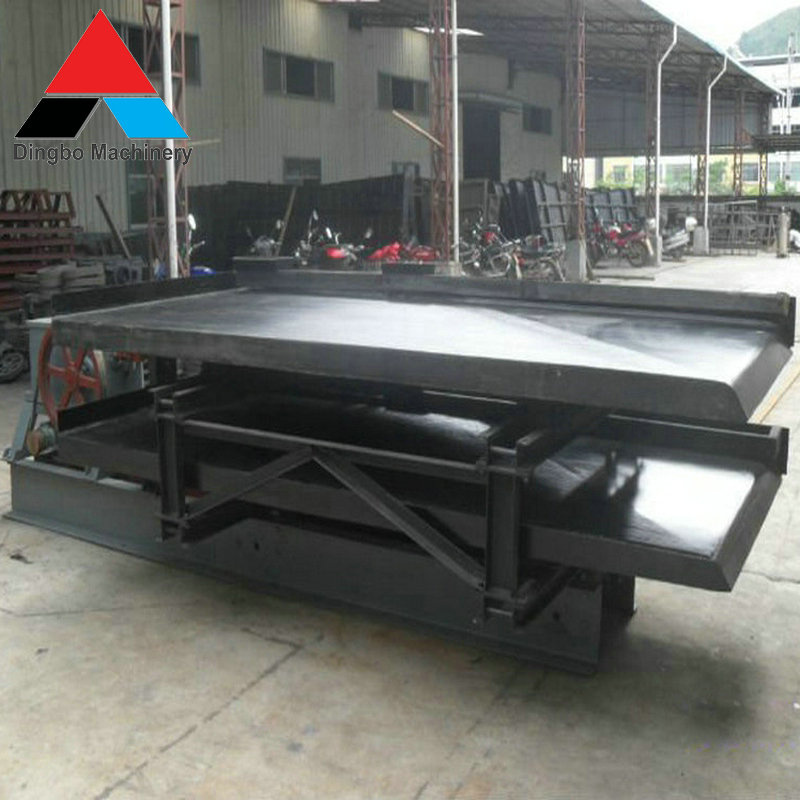

Desription of Shake Table
This kind of mining machine is designed for small-scale gold processing plant, especially adapt to free gold recovery. Since the technologic process doesn't need add any chemicals, it is environment friendly. Using the advanced crushing structure, the crusher can achieve crush and grinding at one time. It is especially suitable for the remote region, because of the simple structure, easy operation, maintenance and convenient for moving. You can operate it without receiving any special training.
LS Earthquake Shake Table (shaker table for gold) is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the
inclined table surface in the lateral water flow with obvious zone of the minerals with different specific
gravities on the table, high quality of concentrates produced, convenient operation and adjustment and
other features.
spiral concentrator surface is constructed of ore sand or slime and is made up of glass fibre reinforced
plastic or aluminum alloy.
LS Earthquake Shake Table are effective gravity separation equipment which can be used for different operation such as rough selection, elaborate selection and scavenging for large, medium and
small-sized factories and applies to the sorting of nonferrous metal, ferrous metal, rare and precious
metal, gold and nonmetallic ores of fine grains. Such shaking tables are divided into ore sand tables
and ore slime tables. Oresand tables apply to the sorting of coarse ores and ore slime tables apply to
the sorting of fine ores.
concentrator table is applicable for separations of fine-grained and micrograined rare metal, ferrous and
non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation
independently and also can operate in conjunction with jig, screw separator, centrifugal separator and
other equipment. The product is made by the only manufacturer designated by the former Ministry of
Geology and Mineral Resources, in compliance with the Industrial standards.
Main technical parameters
| Name |
Unit |
Course ore Deck |
Fine sand
Deck |
Slime Deck |
Deck Size |
Length |
mm |
4450 |
4450 |
4450 |
transmission end width |
mm |
1855 |
1855 |
1855 |
Concentrate end width |
mm |
1546 |
1546 |
1546 |
Maximum Feeding Size |
mm |
2 |
0.5 |
0.15 |
Feeding Amount |
t/d |
30-60 |
10-20 |
15-25 |
Feeding Density |
% |
25-30 |
20-25 |
15-25 |
Stroke |
mm |
16-22 |
11-16 |
8-16 |
Frequency |
f |
45-48 |
18-53 |
50-57 |
Water added |
t/d |
80-150 |
30-60 |
10-17 |
Transverse slope of Deck |
° |
2°30-4°30 |
1°30-3°30 |
1°-2° |
Longitudinal slope of Deck |
° |
1.4 |
0.92 |
------ |
Beneficiation Area |
m2 |
7.6 |
7.6 |
7.6 |
Cross-section Shape of Deck |
|
rectangular |
saw tooth |
triangle |
Motor Power |
KW |
1.1 |
1.1 |
1.1 |
Transmission Mechanism |
|
Eccentric linkage |
