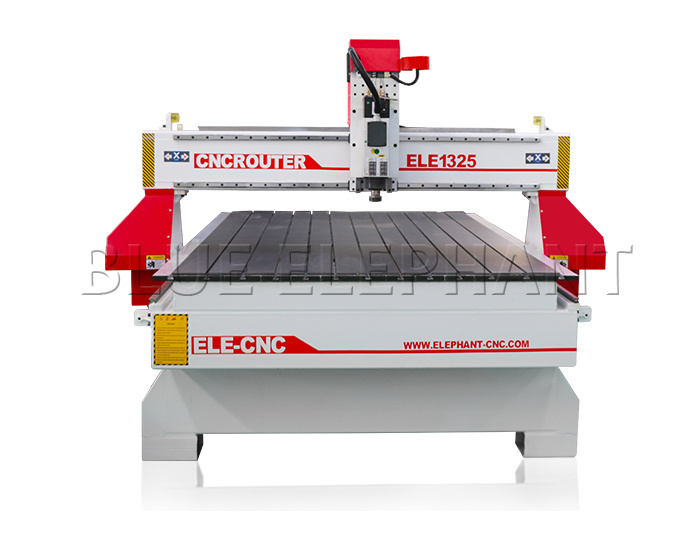

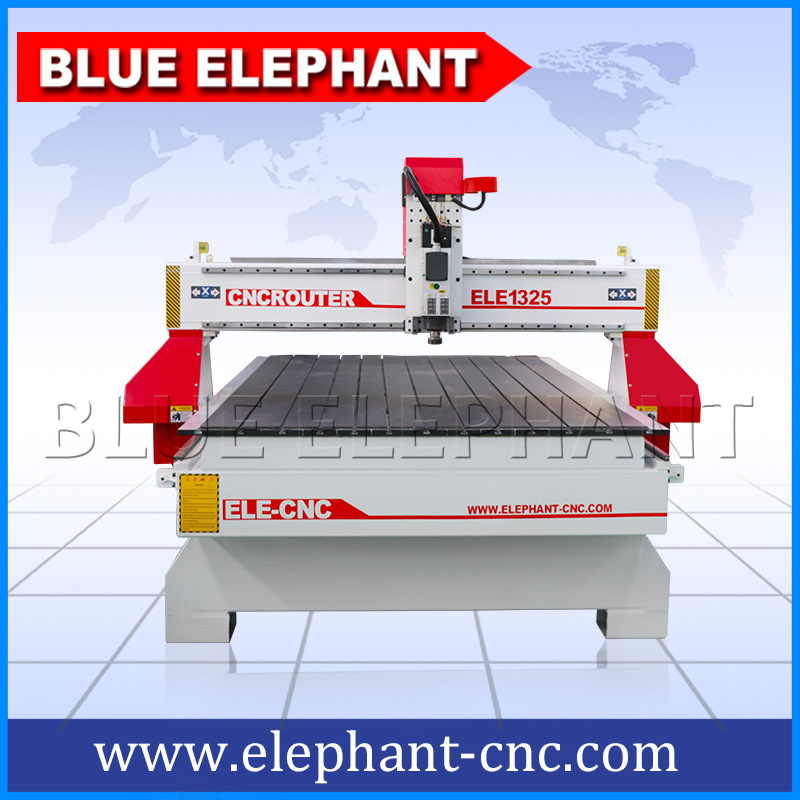

| Price: | US $ 5000-8700/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | ELE1530 |
|---|---|
| Spindle: | Original Italy Hsd 7kw Air Cooling Spindle |
| Motor: | FL118 Bigger Stepper Motor and Yako2811 Driver |
| Inverter: | Taiwan Delta 7.5kw Inverter |
| Working Area: | 1300*2500*200mm |
| Transmission: | Taiwan Tbi Ball Screw and Taiwan Hiwin Linear Guid |
| Software: | Ucancam / Artcam/Type3 |
| Features: | Blue Elephant New CNC Router 1325, Multi-Use |
| Weight: | 1500kg |
| Power(W): | According to Your Order |
Advantages:
♥ 10-12mm industrial class square tube strong bed. You can use our elephant cnc router more than 10 years.
♥ T-slot working table, pvc protection. T-slot table surface is generally designed for acrylic, aluminum, pvc, pcb etc plastic or metal cutting, milling carving. We can also design vacuum and t-slot table for you, if you also need wood carving.
♥ DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.
♥ Italy HSD 7KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service
♥ Stepper motor. Big power supply. Servo motor for your option
Features:
² 1300*2500*200mm effective working area
² Original Italy HSD 7KW Air cooling spindle, 24000RPM
² Taiwan DELTA 7.5KW inverter;
² FL118 bigger stepper motor and YAKO2811 drivers;
² RichAuto DSPA11 handle controller with USB port;
² Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel,
² All axis Sweden SKF group ABBA linear guide and rails, 20#;
² T-slot working table
² 1.5KW Double bags dust collector with CE Certificate
² French Schneider electric parts
² Independent control box;
² Artcam 2012 software for free
² Working voltage: 380V/50HZ/3PH
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300*2500*200mm |
Table Surface | T-slot working table |
Structure | 10-12mm industrial class square tube strong structure |
X Y Z Structure | Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel; all axis Sweden SKF group ABBA linear guide and rails, 20# |
Max. Working Speed
| 30000m/min |
Spindle | Original Italy HSD 7KW Air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 bigger stepper motor and YAKO2811 driver |
Inverter | Taiwan DELTA 7.5KW inverter |
Command Language | G Code |
Control System | RichAuto DSPA11 handle controller with USB port |
Computer Interface | USB |
Lubrication | Automatic Lubrication system |
Tool sensor | Manual tool sensor calibration |
X,Y Resolution | <0.01mm |
Spare parts | Japan OMRON limit switch for X, Y, Z axis; Highly flexible towline, fire-resistant double-sheathed Shanghai Cardiff cable; French Schneider electric parts; Independent control box; 1.5KW Double bags dust collector with CE Certificate; |
Software Compatibility | Artcam 2012 software for free, (Option: Artcam Type3 Software) |
Working voltage | 380V/50HZ/3PH |
Accessories (for free)
| 1 Tool Box 1 2 Woodworking Knife All type 21 Different size 3 collet 3.17, 4, 6, 12.7 4 4 Allen wrench M6 1 5 Open-end wrench 27-30 45-52 2 6 Certificate, CE 7 Adjustment screw 4 8 Clamps 8 9 Spanner, 3,4,5,6mm, 4 10 Fuse core 2 12 Software CD 1 |
PS: All the working area and specifications can be customized according to your requests.

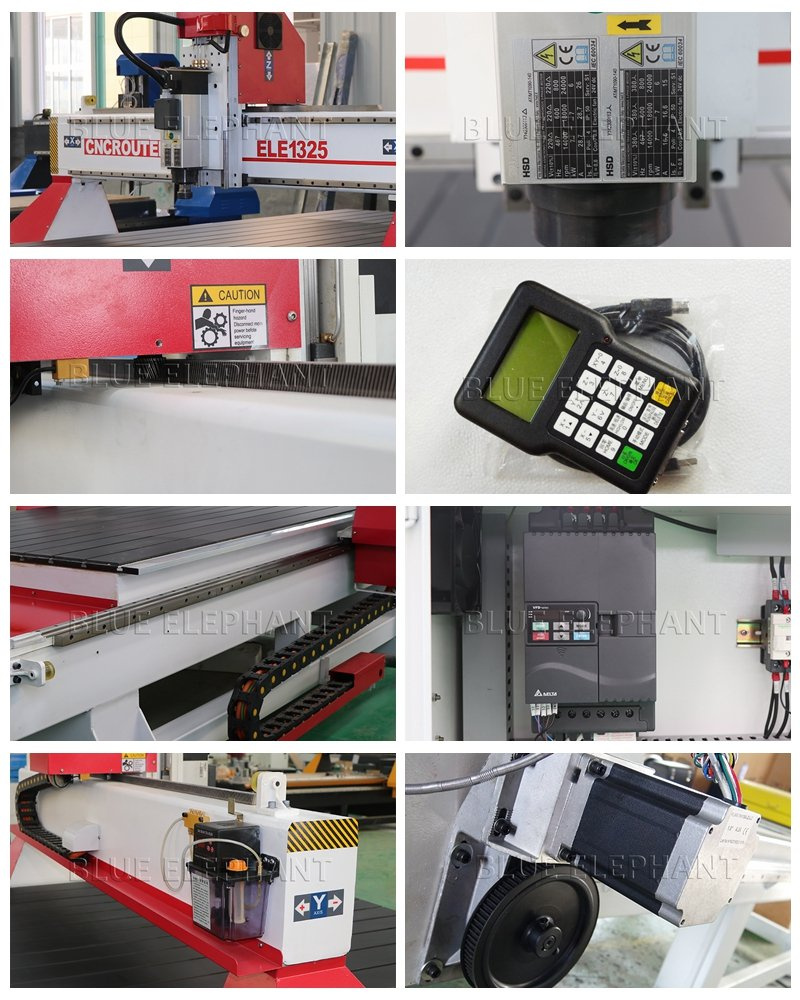

Details:
| Spindle | Italy HSD Air Cooling Spindle |
| Inverter | Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control. |
| Motor and Drive | Stepper Motor FL118 stepper motor, big power. YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed |
| Control system | DSP A11 Control System |
| Transmission system | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail |
| Working table | T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place. |
Optional Parts:
1. Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
2. Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
3. Pump
We can provide vacuum pump or water circulation pump for your choice.
4. Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.
Samples:

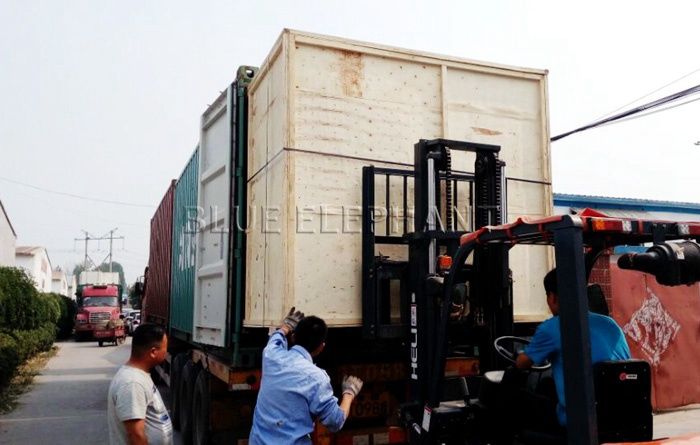

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

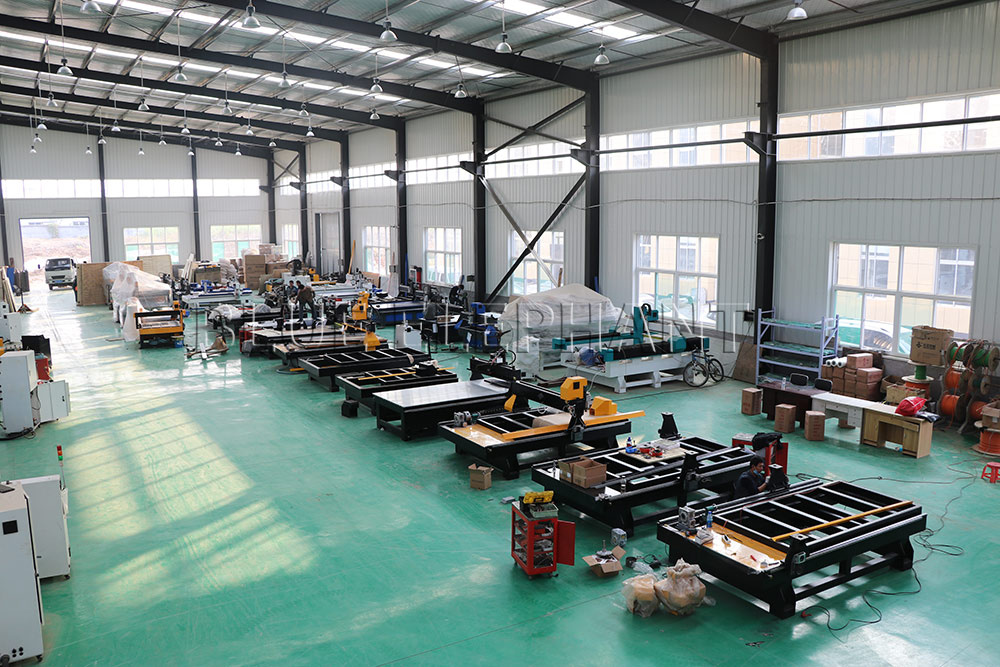

Welcome to our factory:
