China 19'' Wall Double Section Wall Mount Server Cabinet

Name: China 19'' Wall Double Section Wall Mount Server Cabinet
Brand: thisfurniture.com
SKU: 725960652
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 30-80/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WMG
Model No.:	Wmg
Product Name:	Server Cabinet
Optional Color:	Black,Gray,White
Feature:	Wall Mounted Cabinet
Width:	550mm/600mm
Depth:	450mm/600mm
Surface Finish:	Degreasing/Pickling/Phosphating/Power Coating
Material:	SPCC Cold Rolled Steel
Degree Of Protection:	IP20
Front Door:	Toughened Glass Door
Type:	Server Cabinet
Usage:	Wireless Monitoring System
Installation:	Wall-Mounted Cabinet
Certification:	IEC
Condition:	New
Fan Number:	Optional
Capacity:	4u-18u

Product Description

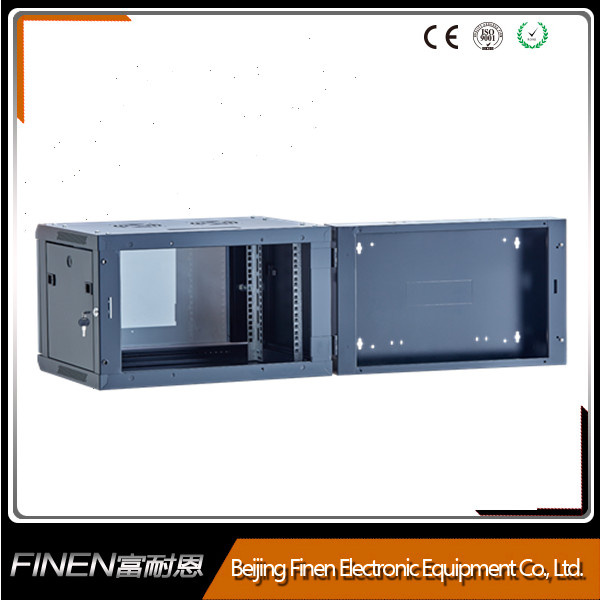

China 19'' wall double section wall mount server cabinet

Production Information

Server Cabinet Basic Information
1) Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm Others 1.0mm
4) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
5) Protection Degree	IP20
6) Loading Capacity	60kgs(=132lbs)
7) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features
2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door Specifications Width - 21.65 Inches (550mm) 23.62 Inches (600mm), Depth - 17.72 Inches (450mm) ,23.62 Inches (600mm) Rail Width - 19 inch EIA Compliant Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available Recommended options Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves

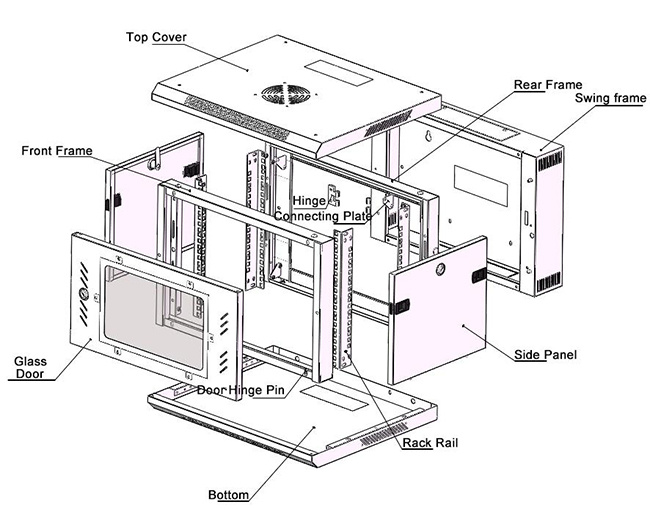

Server Cabinet Structure

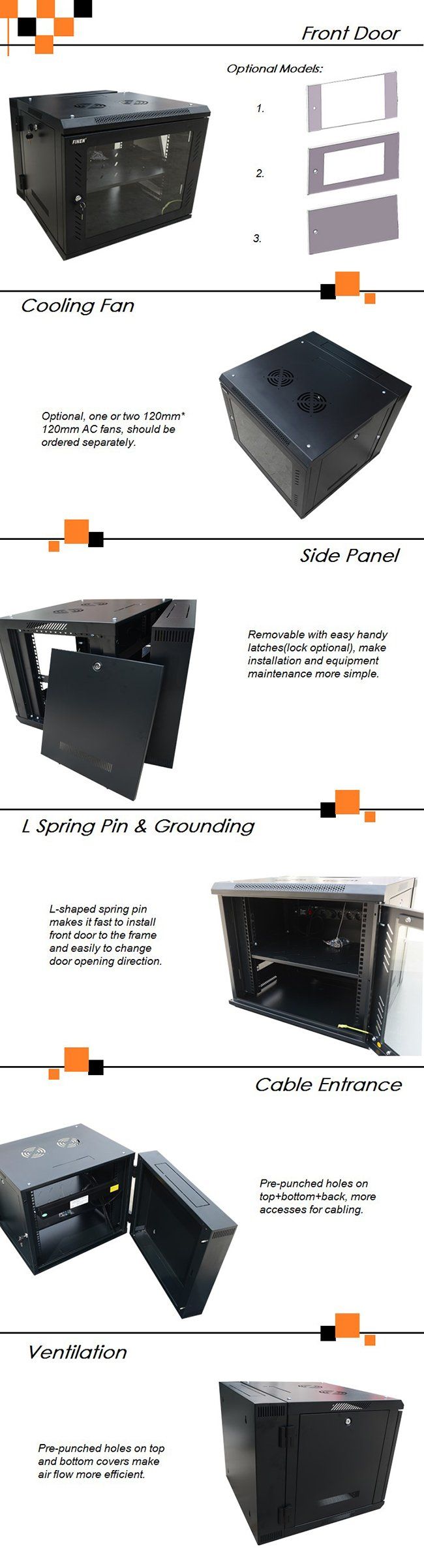

Server Cabinet Details

Server Cabinet Specification

Width(mm)	Depth(mm)	Capacity(U)	Height(mm)	Order No.
600	550	6U	368	WMG6506
		9U	501	WMG6509
		12U	635	WMG6512
		15U	769	WMG6515
		18U	901	WMG6518
		22U	1082	WMG6522
		27U	1304	WMG6527
600	600	6U	368	WMG6606
		9U	501	WMG6609
		12U	635	WMG6612
		15U	769	WMG6615
		18U	901	WMG6618
		22U	1082	WMG6622
		27U	1304	WMG6627
