| Price: | US $ 2000-5300/Piece |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

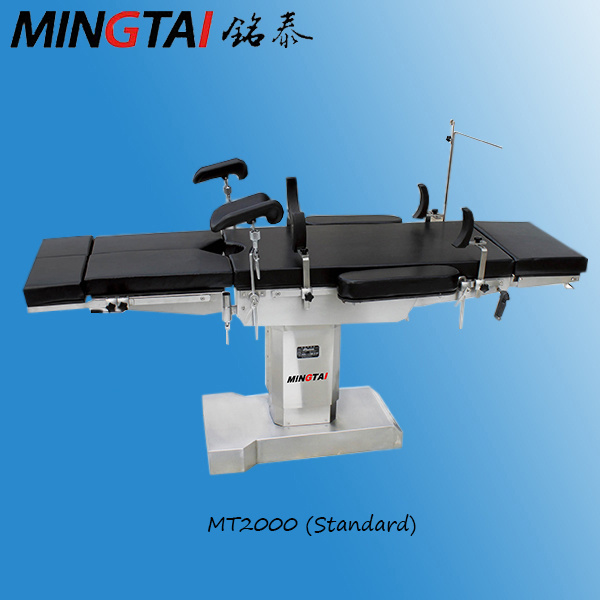

| Prod Model: | MT2000(Imported configuration model) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: | 2000±50mm |
| Width: | 555mm |
| Lowest And Highest Table Height: | (750-1000) ± 50mm |
| Forward/Backward Lean: | 32degree |
| Left/Right Lean: | 22degree |
| Head Board Up/Down: | 90degree |
| Head Board Down: | 130mm |
| Leg Board Down: | 90degree |
| Motor Brand: | "Linak" Brand |
| Input Power: | 500va |
| Material: | Metal |
| Type: | Medical Table |
3.2motors rise the back board, "T" shaped base design
4.Double control pattern,built-in emergency power
5.electrical brake and electrical kideny elevator(optional)
Main Feature
1.
Electric motor driving system: imported the Danish LINAK brand motor, 5 motors work, 2 of them rise the back board up and down, with low noise and smooth motion. Move stably and is durable.
2.
The whole bed is made of high quality SUS304# stainless steel, super thick≥4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation.
3. Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. 5 sections board design: head board, back board, built-in kidney elevator and leg board.
4.
Stable: Adopt the patent design of three lifting column. Pipe fitting column section: Square lifting column with patent design is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
5.
Braking system with patent design is specialized for operating table, pedal-braking, once braking, the operating table position will not change, to ensure table keeping stable and safe in operation.
6.
The operation table has excellent function, elegant appearance, easy to operate. Mattress: Memory sponge mattress which can prevent acne + use high grade material, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
7.
Leg board can be replication, outreach and removable, convenient for adjusting and urinary surgery.
8.
Operation table base has fix or movement function, flexible movement and stable fix, different function accessories can be provided for different surgery needed.
Technical parameters
| Length | 2000±50mm |
| Width | 555mm |
| Chinese standard lowest and highest height | (750-1000) ± 50mm |
| Optional table width | (480-600) mm |
| Optional table height of lifting up and down | (200-450) mm |
| Optional lowest height | 600mm |

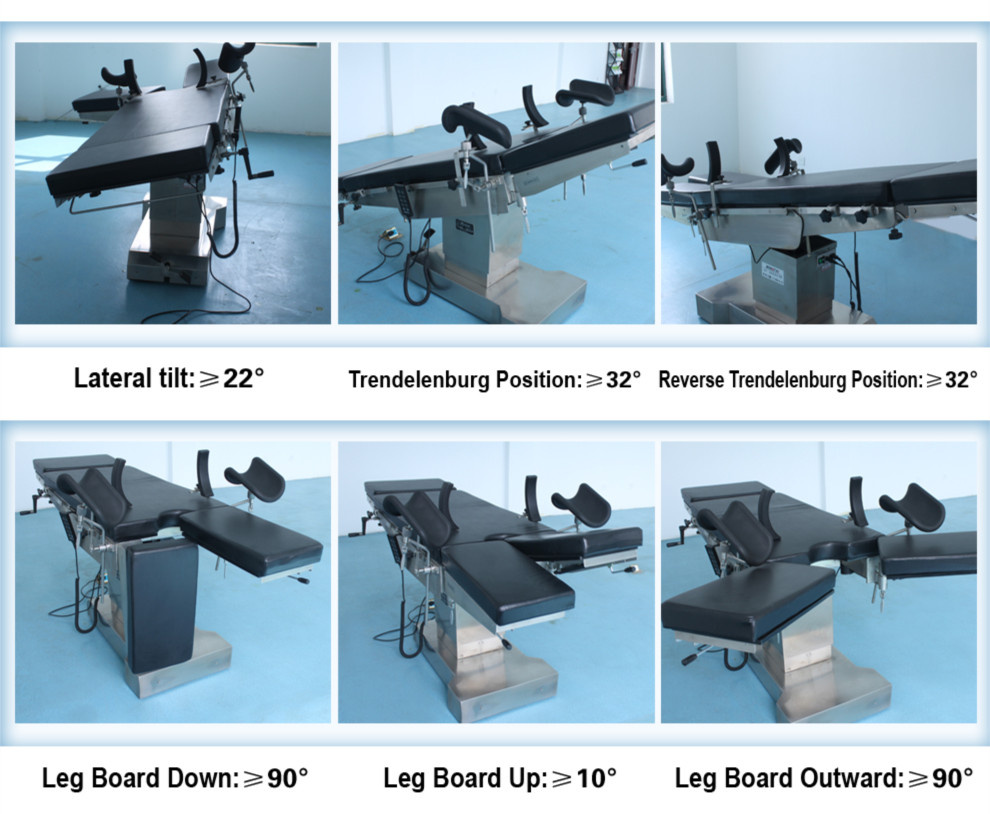

| Forward/ backward tilt | ≥32° |
| Left/right tilt | ≥22° |
| Head board up | ≥90° |
| Head board down | ≥90° |
| Waist bridge lift up | ≥130mm |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥40° |
| Power | AC 220V 50Hz |
| Input power | 500VA |
