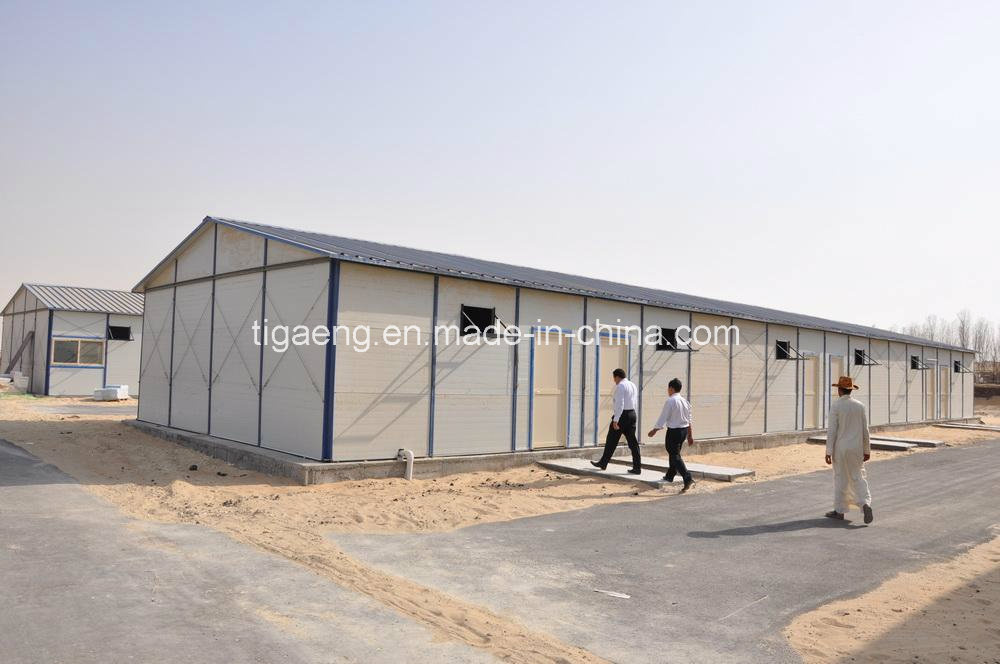

Cheap Prefabricated House Dormitory for Labor

Cheap Prefabricated House Dormitory for Labor
Price: US $ 30-50/Square Meter
Min Order: 100/Square Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: TIGA-PH 12369
Certificate: ISO9001,ISO14001,
Size: as Your Requirements
Materials Type: H Beam or I Beam with Q235 or Q345
Derusting: Ball Blast
Window: PVC Window or Plastic Steel Window
Doors: Color Steel Sliding Door or Electric Rolling Gate
Walls: EPS, Rock Wool,PU Sandwich Panel,Color Steel Sheet
Roofs: EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
Dimensions: According to The Need of Design
Designs And Drawings: According to Your Needs to Design
Material: Sandwich Panel
Usage: Workshop
Certification: BV
Customized: Customized

Product Description

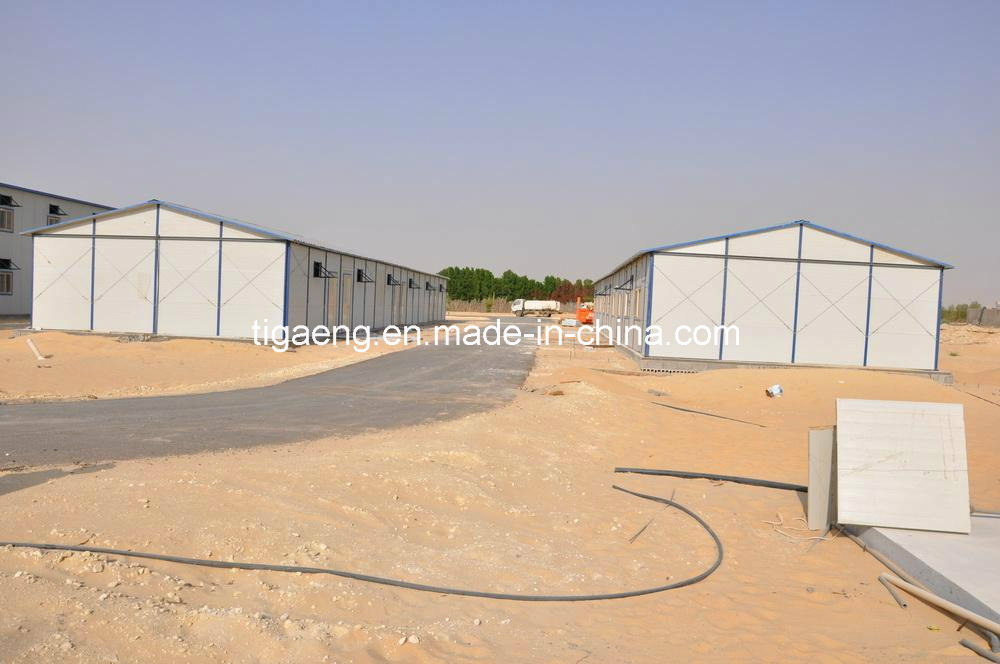

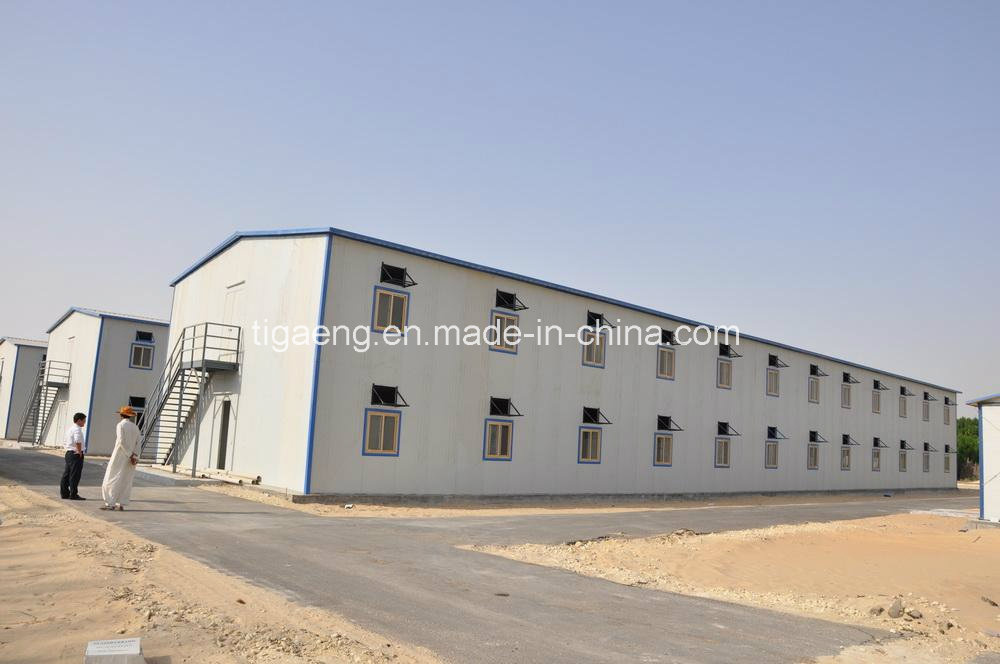

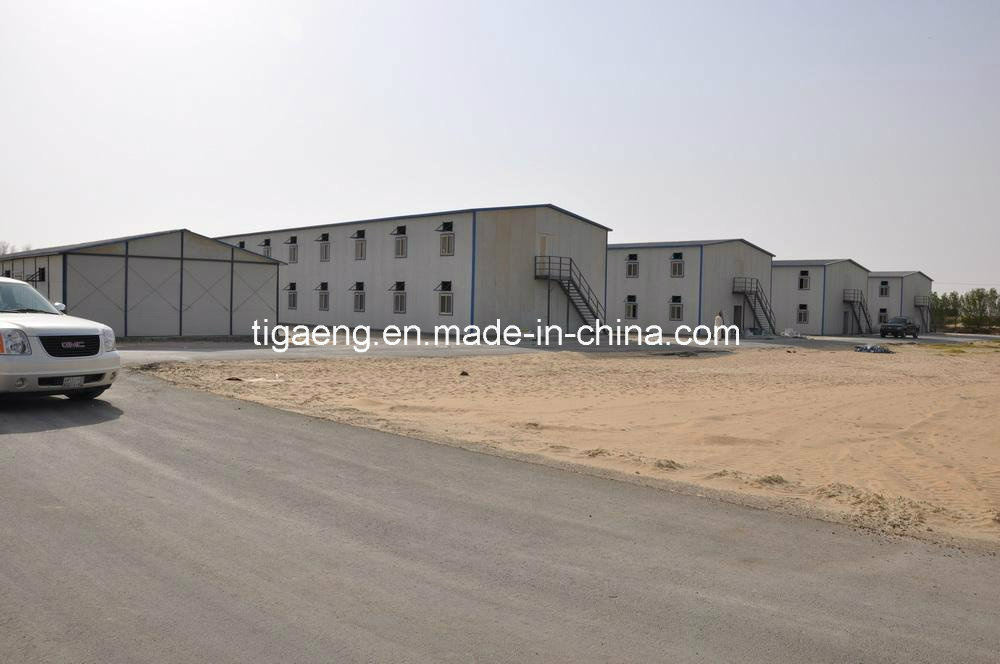

Prefabricated house (prefab house) is made of light steel as steel structure and sandwich panels for wall and roof. The insulation of sandwich panel can be polystyrene, polyurethane, rock wool and fiber glass. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable .It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc...



Characteristics

1.Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly.

2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.

3.Fast construction and easy installation.

4.Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.



Specification



Materialspecification
LengthAs customer's requirement
WidthMaximum 12 m
HeightMaxumum 9m
Column80*80/100*100/120*120 square tube Q235
BeamC80/C100/C120,Q235
PurlineC80/C100/C120,Q235
BraceL40*3/L50*4,Q235
Roof panel

sandwich panel 50/75/100 Eps/Rockwool/Fibreglass

Wall panel

sandwich panel 50/75/100 Eps/Rockwool/Fibreglass

Door

sandwich panel door/sliding door

Window

PVC window/Aluminium frame,4/5mm thickness glass

Gutter

0.8mm steel sheet/PVC gutter

Rain Pipe

PVC rain pipe



Technical Parameter:

Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

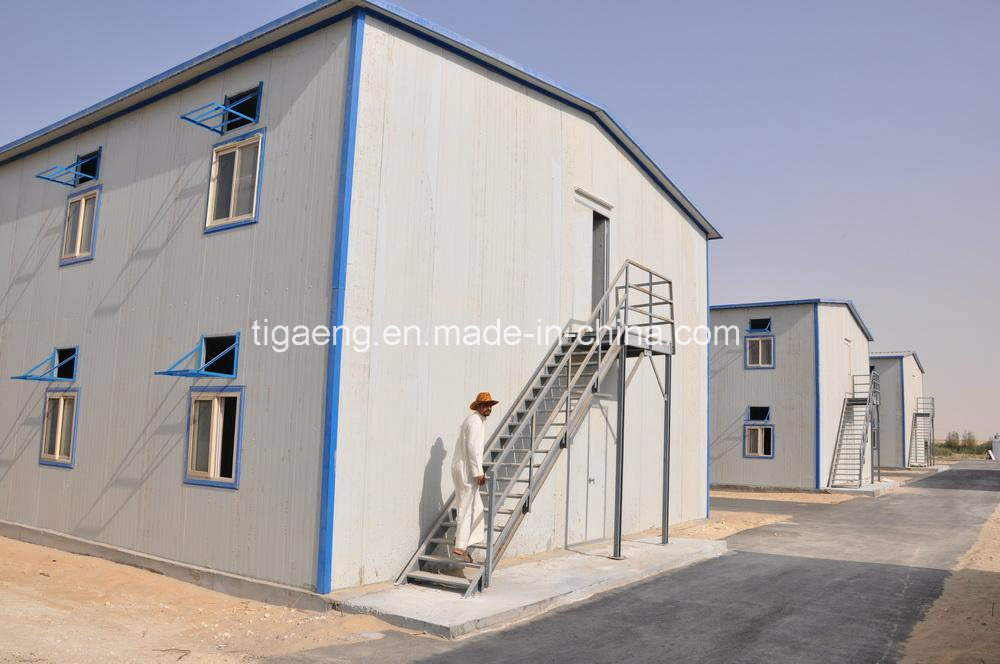

5. Second Floor Load Capacity: 150 kg/m2
6. Live load of corridor is 2.0kn/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Steel framework

Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel  Surface working: Alkyd painting,two primary and two surface.

Main triangle Beam:  fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting,two primary and two surface.

Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
Surface working: Galvanized


Floor

Groud floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor:  18mm plywood  with 2.0mm PVC floor leather for living rooms floor;

Ceiling

Construction:
6mm Gypsum board for dry room
12mm PVC ceiling for wet room

Walls


Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-1200mm.
Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3

Door

External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys. Inner door: Insulated steel door.

Windows

Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option

Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
double tube fluorescent lamp, 220V,50-60HZ
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings

Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

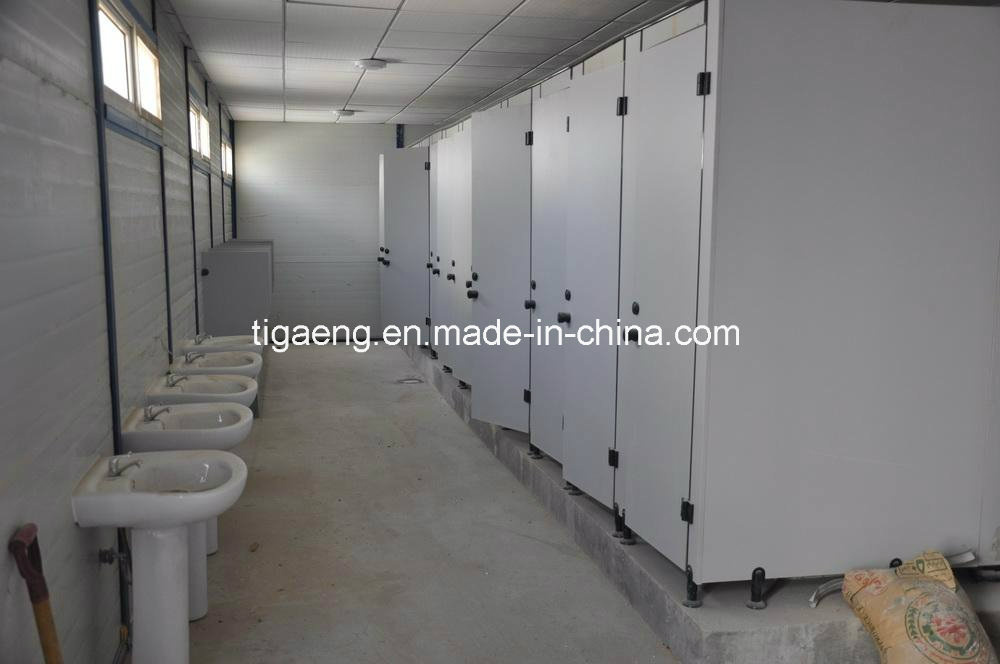

Sanitary ware:
Western Close tool: ceramic, with pipes and installation fittings
Urinal: ceramic, with pipes and installation fittings
Wash basin: ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

Tiga Group, as a member of the House Structure Association, branch of China Steel Structure Association and other associations, is one of the most powerful enterprises of steel structure and temporary building projects in Henan Province and in China. Tiga Group is an ISO 9001: 2000 registered enterprises and is appraised as AAA grade credit enterprise by Construction Bank of China, Qingdao Branch. Tiga Group has passed the approval of CE and SGS

Tiga Group is a high tech enterprise and is headquartered in Zhengzhou High Tech Development Zone. Tiga Group is a comprehensive enterprise of design, producing and installation. Now the group has three branches: Tiga Building Facility Company Limited, Tiga Steel Structure Company Limited, and Tiga Modular House Factory.

Tiga Group has leading R & D capabilities and technology advantages, and its products such as steel structure series, modular house series, and light steel sandwich panels series and roofing sheeting series are widely used in industry, traffic, city construction, commercial and other temporary accommodation. With the advanced technology, full products range, excellent sales and service teams, Tiga's products are sold throughout the home and abroad markets. Tiga Group is a supplier of the series products for the country's key projects, such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc. Tiga Group has the right of import and export, and its products have been exported to over 110 countires, such as, the UAE, Saudi Arabia, Oman, Angola, Equatorial Guinea, Libya, France, Poland, Romania, Russia, Australia, the Philippines, Indonesia...etc.

Tiga Group is dedicated to the developing the resource saving, environment protection products to enhance urban civilization and improve the living conditions. Through the incessant revolution in construction field, the new steel structure industry may achieve product standardization, modularization, universalization. Insisting on the maximization of customers' interest, Tiga Group's objective is to be the leader in the steel structure and temporary building field with the high quality products, and professional, efficient service.
