| Price: | US $ 25-60/Square Meter |
|---|---|
| Min Order: | 100/Square Meter |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TIGA-PH 336239 |
|---|---|
| Roof: | Mineral Wool,PU Sandwich Panel,Color Steel Sheet |
| Wall: | Mineral Wool,PU Sandwich Panel,Color Steel Sheet |
| Certificate: | ISO9001,ISO14001,Ce |
| Size: | 25-10000 Sqm |
| Materials Type: | Light Guage Galvanized Steel |
| Window: | Aluminium Alloy Window |
| Door: | Sliding Door Normal Doors or Electric Rolling Gate |
| Height: | 10 Floors |
| Designs And Drawings: | We Can Design Drawings According to Your Request |
| Anti-Fire: | High Anti-Fire |
| Material: | Sandwich Panel |
| Usage: | Kitchen, Bathroom |
| Certification: | BV |
| Customized: | Customized |
| 1.Steel Structure: | ||
| 1.1 | Steel column | 120x120x2.5 |
| 1.2 | Steel structure beam | C120x50x20x2.0 |
| 1.3 | Roofing Purlin | C140x50x20x2.0 |
| 1.4 | Wall purlin | C120x50x20x2.0 |
| 1.5 | Anchor bolts | M16 |
| 1.6 | Ordinary bolt | 4.8S,Galvanized |
| 2.Roof and wall: | ||
| 2.1 | Roofing-PU board Or Fiber glass board or EPS panel | 100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa; OR 100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa |
| 2.2 | ceiling upon the door | 100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa; OR 100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa |
| 2.3 | Exterior wall-PU board OR Rockwool board or EPS panel | 100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa; OR 100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa |
| 2.40 | edge cover plate | 0.5mm steel plate |
| 3. Ceiling and Ground Using gypsum board for normal rooms, and PVC ceiling for toilet and shower rooms | ||
| 3.1 | gypsum ceiling-for room | 600*600*6mm, including frame |
| 3.2 | PVC ceiling-for toilet | PVC board |
| 3.3 | flooring tile | 600*600mm |
| 3.4 | Gutter | PVC |
| 3.5 | drainpipe | 80mm |
| 4. Door and window: Light steel door for Exterior & Interrior, Windows is double glass | ||
| 4.1 | Exterior Door | light steel door |
| 4.2 | Interior Door | Sandwich panel door or light steel door |
| 4.2 | Window | PVC, with double glass 4+6+4mm |
| 5. Electric +water: High quality Electric unit, Chinese famous brand "HongYan", and More detials please referring to "Lida Electric System" as a separate attachment | ||
| 5.1 | Electric cable | lighting 2.5mmm2, air conditioner : 4.0mm2 |
| 5.2 | PVC wire Channel | |
| 5.3 | light | 220V,50HZ, ceiling light |
| 5.5 | Switches | with junction box |
| 5.6 | Socket | 16A Universal Socket |
| 5.7 | water heater | Haier Brand(ES60H-X1(E)), 100L, twin-tubeheater, 3000W, heating temperature 75degree |
| 5.8 | Power distribution cabinet | box+switch+earth leakage protective device |
| 5.9 | bidet | including accessories |
| 5.10 | closestool | including accessories |
| 5.11 | washbasin | including the water pipe |
| 5.12 | shower | shower base, shower head, water mixture |
| 5.13 | water pipe | input and output water pipe |
Technical Parameter:
Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150kg/m2
6. Live load of corridor is 2.0KN/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Steel Framework:
1,Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting,two primary and two surface.
2, Main triangle Beam: fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.
3, Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
4, Surface working: Galvanized
Floor:
Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor;
Ceiling:
6mm Gypsum board for dry room
12mm PVC ceiling for wet room
Walls:
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-150mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16Kg/m3 20Kg/m3
Density of Polyurethane: 40Kg/m3
Door:
External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys. Inner door: Insulated steel door.
Windows:
Window material: PVC window with fly screen, 4mm glass.
Electrical fittings option:
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five holes universal socket.
double tube fluorescent lamp, 220V,50-60HZ
Single Switch, Honyar brand, with junction box
Electrical distribution box, box + breakers + earth leakage protective device
Optional Water system fittings:
Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

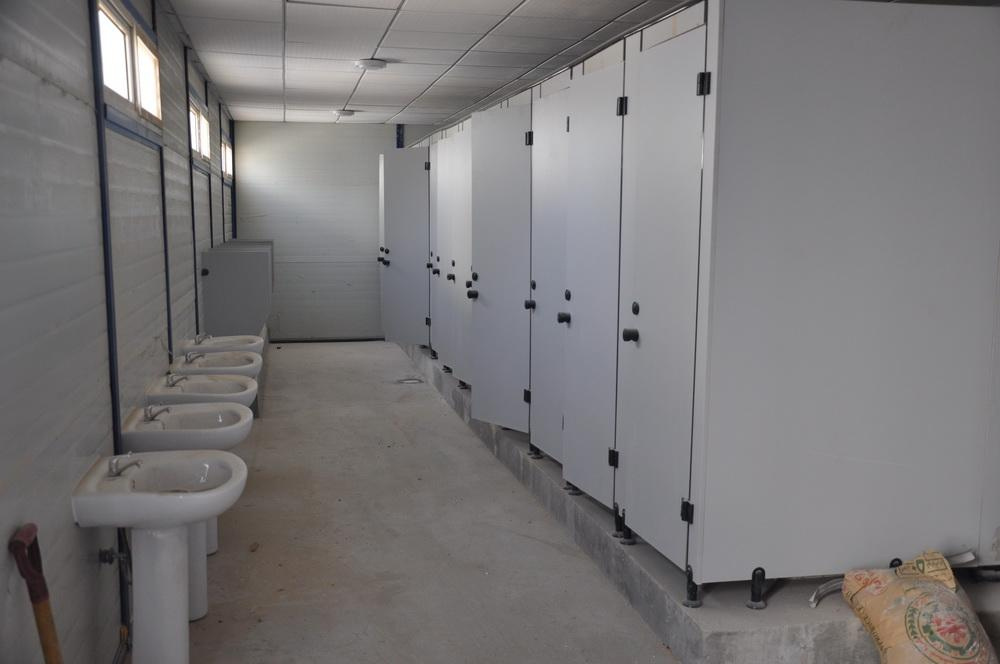

Sanitary ware:
Western Close tool: ceramic, with pipes and installation fittings
Urinal: ceramic, with pipes and installation fittings
Wash basin: ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

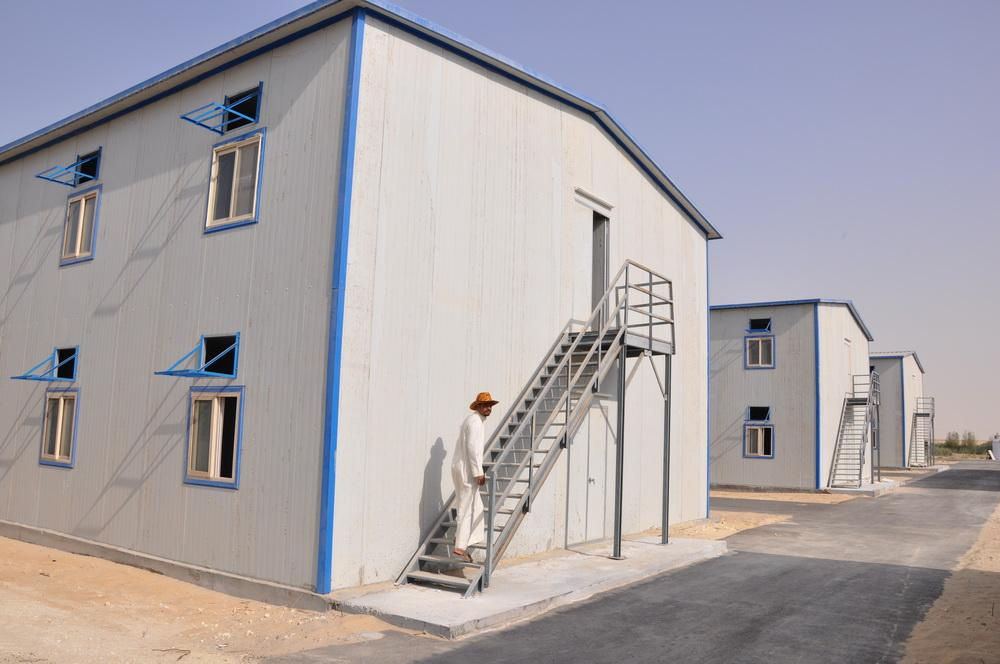

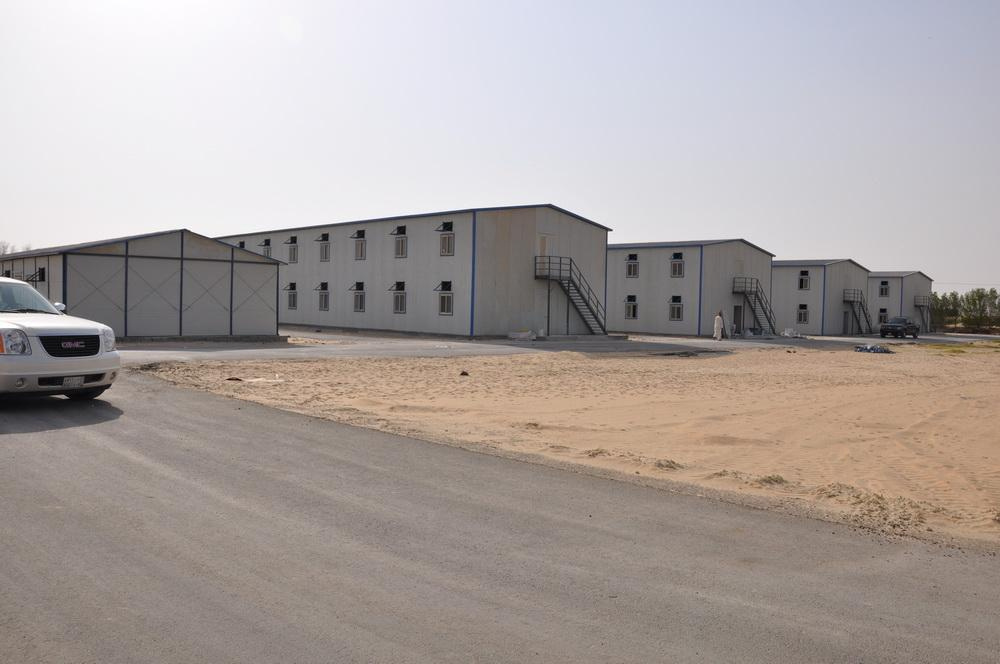

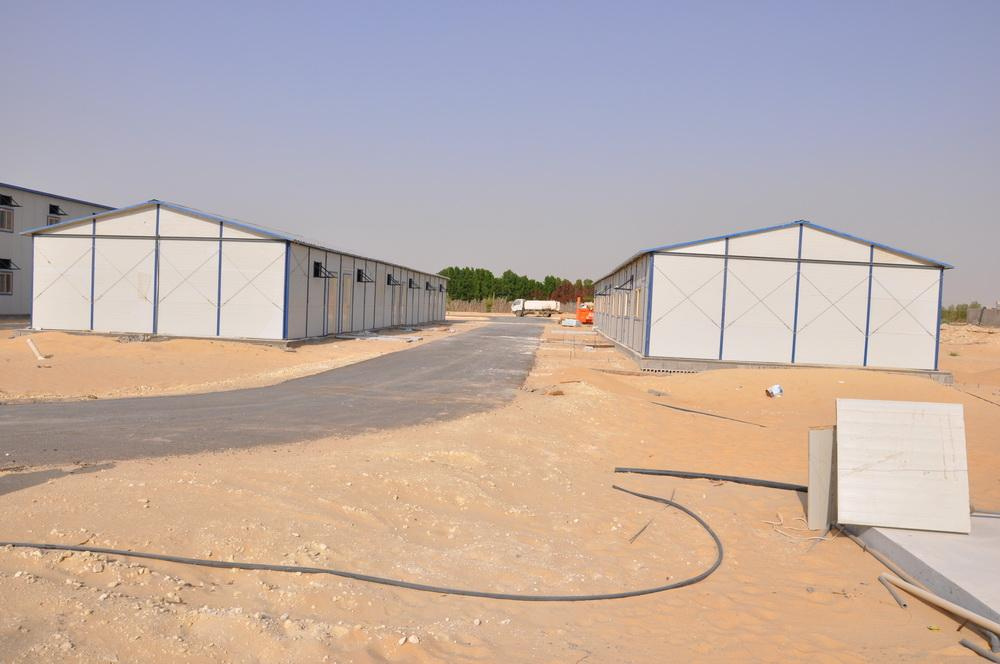

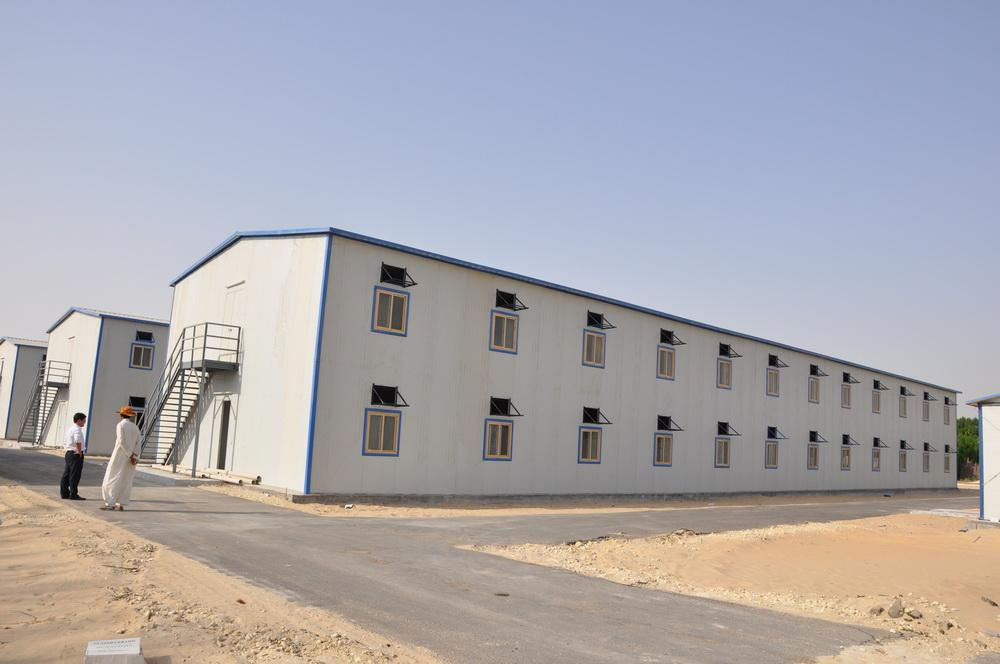

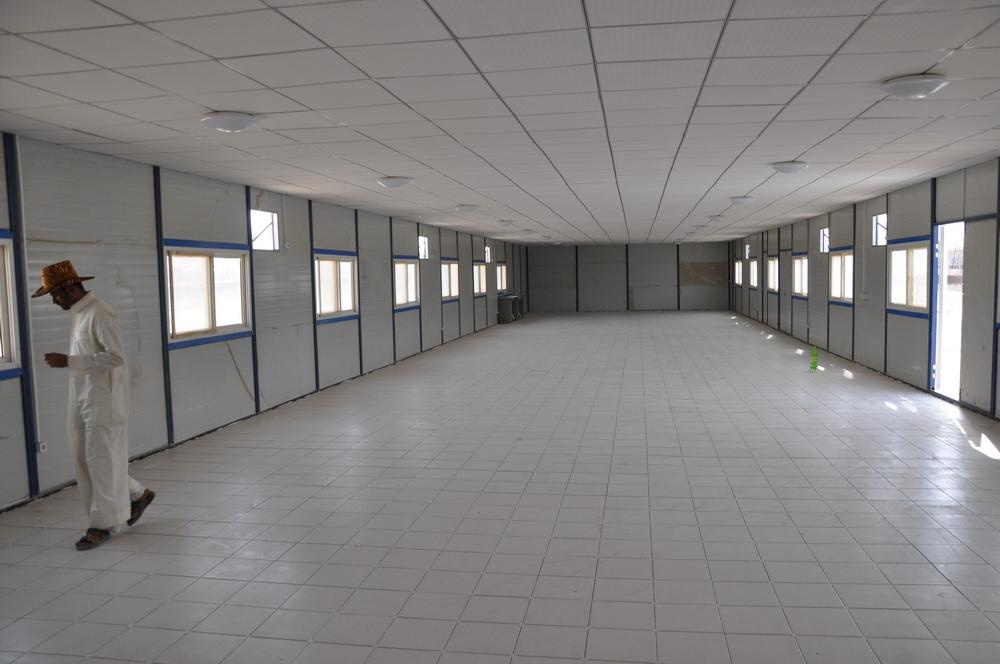

Finished Projects:
Loading & Transport:
1. Professional design and engineering team:
Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building:
We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision:
We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
