| Prod Model: |
CNC-2620 |
| Max. Glass Sheet Size: |
2600*2000mm |
| Glass Thickness: |
2-19mm |
| Dimensions (L*W*H): |
3560*2912*1300mm |
| Max. Cutting Speed: |
160m/Min |
| Air Pressure: |
0.6~0.8MPa |
| CNC System: |
Galil (USA) |
| Optimization Software: |
Optima (Italy) |
| Servo Motor: |
Yaskawa (Japan) |
| Pneumatic Parts: |
Airtac (Taiwan) |
| Low Voltage Electric Parts: |
Schneider (France) |
| Type: |
Glass Cutting Machine |
| Certification: |
ISO |
| Control System: |
Galia USA |
Product Description

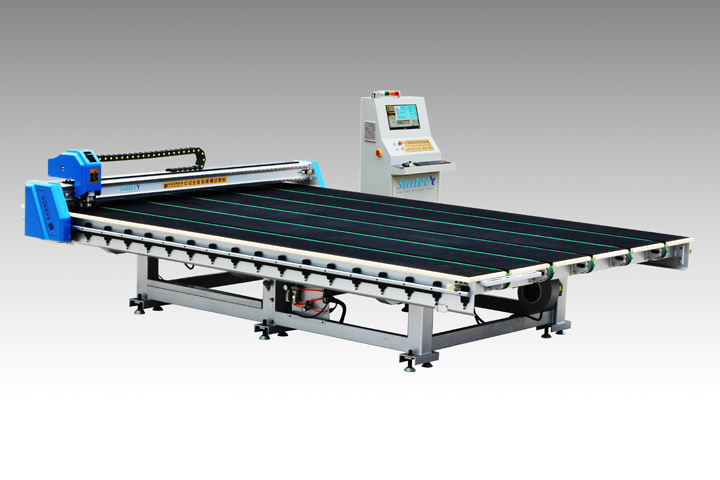

CNC-2620 Automatic Glass Cutting Machine (Double-drive model)
Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- Perfect machine body structure makes sure the tale flat enough and no out of shape
- Japan SMC valve controls the cutting pressure according to different thickness glass
- Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections
- High density water-proof table
- Imported felt, high flatness, antistatic
- 3D edge searing system, high precision automatic location function
- Automatic lubrication system, work in step with cutter head
- Air float function and belt transmit
- Linear guide rail makes sure the high cutting precision and low noise
Main mechanical parts:
Table panel: high density water proof panel (flatness≤±0.20mm/m)
Rack and rail: KHK Japan
Guide rail: Hiwin Taiwan
Belt: Maiku (Joint venture)
Cutter wheel and cutter holder: Bolhe Germany

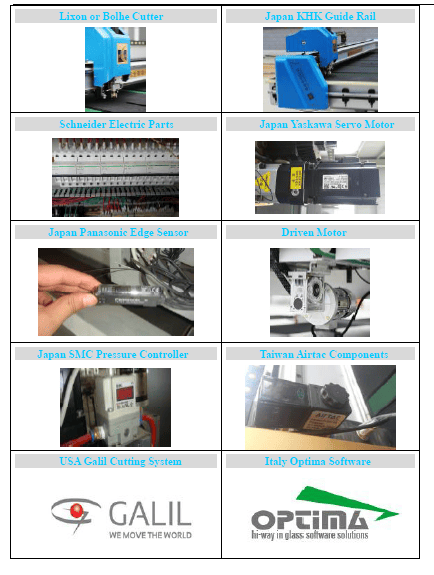

Main electric parts:
CNC System: Galil (USA)
Optimization software: Optima (Italy)/Guiyou (China best brand)
Servo motor: YASKAWA (Japan)
Pneumatic parts: Airtac (Taiwan)
Low voltage electric parts: Schneider (France)
Cutting pressure valve: SMC (Japan)
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Max. speed | Air pressure |
| CNC-1512 | 1500*1200mm | 2~19mm | 2480*2240*1275mm | 150m/min | 0.6~0.8MPa |
| CNC-2620 | 2600*2000mm | 2~19mm | 3560*2912*1300mm | 150m/min | 0.6~0.8MPa |
| CNC-4228 | 4200*2800mm | 3~19mm | 5320*3100*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-5133 | 5100*3300mm | 3~19mm | 6150*4212*1300mm | 160m/min | 0.6~0.8MPa |
| CNC-6133 | 6100*3300mm | 3~19mm | 7150*4212*1300mm | 160m/min | 0.6~0.8MPa |
Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
