Prod Model: |
A12123 |
Protective Film: |
OEM Accepted |
Surface Finishing: |
Coating |
Function: |
Mould-proof |
Usage: |
Advertising |
Certification: |
ISO |
Panel Thickness: |
3mm4mm5mm |
Aluminum Thickness: |
006to0.5mm |
Product Description

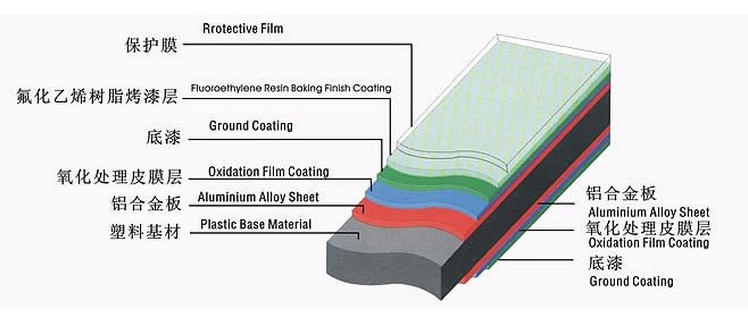

Product DescriptionAluminium Composite Panel (ACP) is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.
Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.1 )Coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting.
2) Core:non-toxic polyethylene or fireproof material(B1).
3) Back:aluminium alloy sheet coated with polyester resin painting.
4) Surface finish: PVDF / PE coated,brushed finish, mirror finish, wooden grain,marble gt
5) Surface coating thickness :25~30 μm 70% KYNAR 500 PVDF or PE.
Name | ACP |
Standard size | 1220mm*2440mm |
Width | 1000mm,1220mm (regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum); |
Length | 2440mm~6000mm |
Panel thickness | 2mm-6mm |
Panel thickness | 0.04mm-0.50mm |
Surface coating | Fluorocarbon resin (PVDF), polyester(PET) and other imitation marble, wood-like |
Core material | wood-fire flame-retardant, high-voltage low-density polyethylene(PE) |
Main ACP Product | PE coated ACP, PVDF coated ACP, Nano PVDF coated ACP, Mirror finish ACP, Brushed ACP, Wooden ACP, Granite ACP, PET film ACP and Fireproof core ACP. |
Packing | nude packing or wooden packing for Sparkle lamination film white black red ACP aluminum composite sparkle crystal cabinet knobs closet drawer door pulls panel |
OEM & ODM | Available, special size specifications can be custumized. |

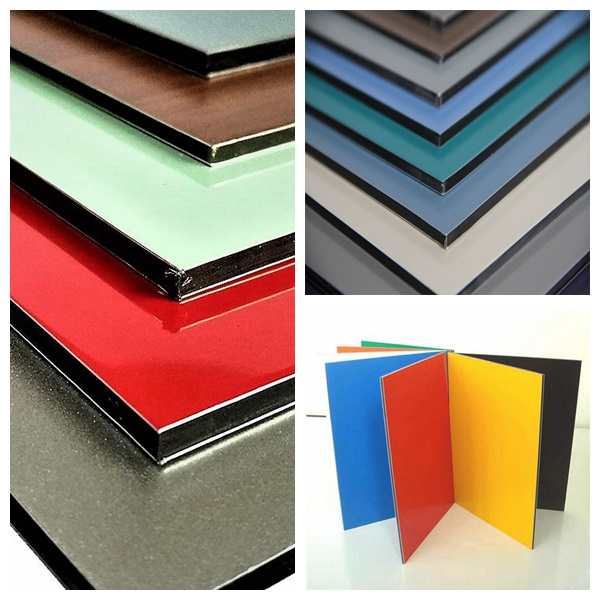

Detailed Image

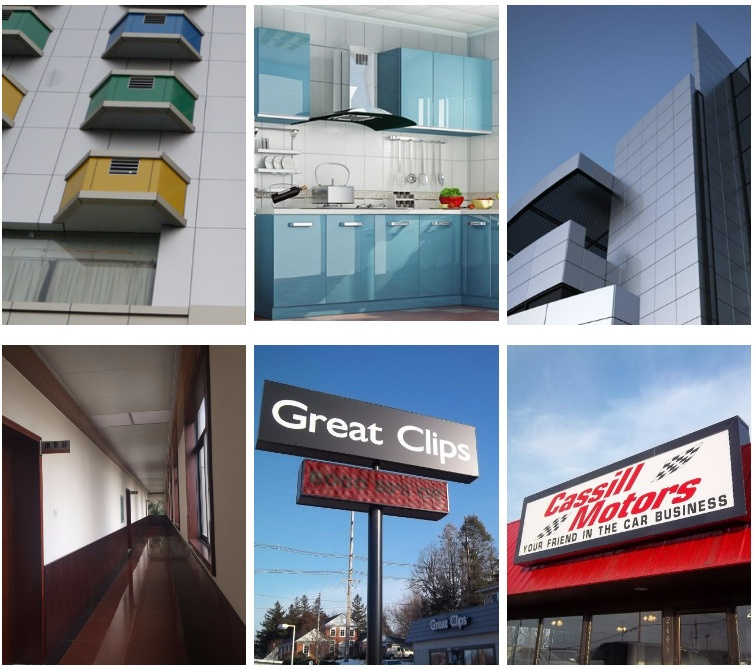

Case show

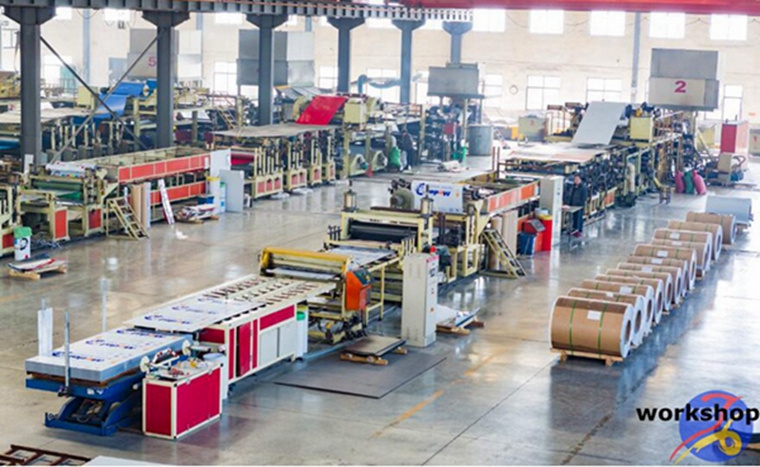

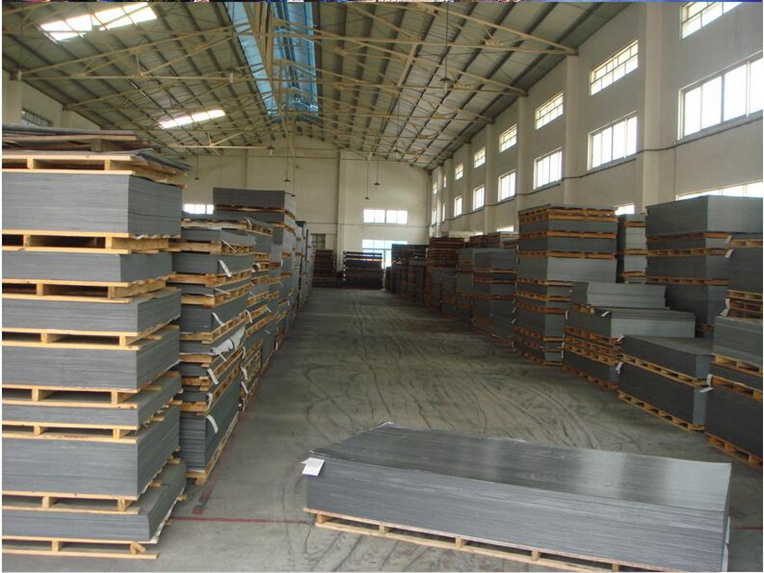

Our Company

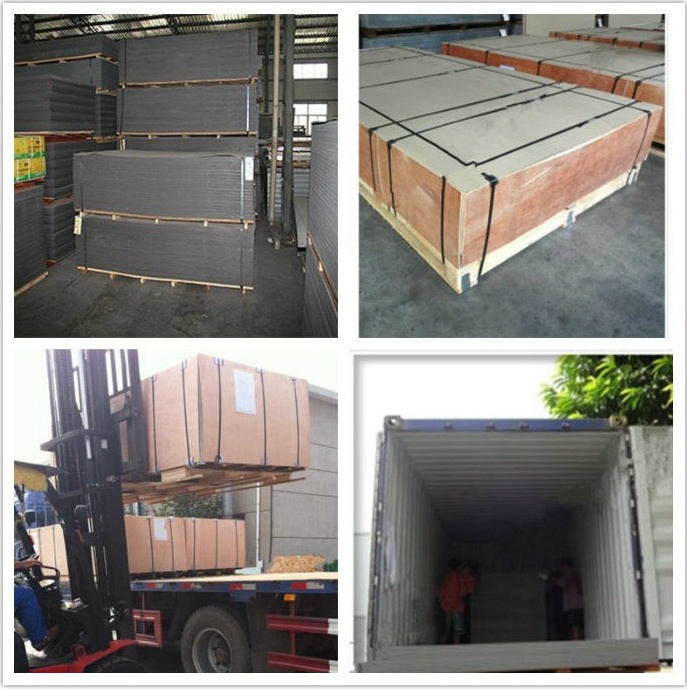

Packing of the Aluminium Composite Panel:There are 2 ways to load Aluminum Composite Panel (ACP) for Full container: in bulk, or in wood box
DUE TO THE LIMITATION OF WEIGHT, NORMALLY WE USE 20'GP FCL.
REFERENCE QUANTITY IN 1X20'FCL OF 1220MM X 2440MM:
3MM:5000 SQ.M. ~ 6500 SQ.M.(BY WEIGHT);DIFFERENT WITH ALUMINUM SKIN THICKNESSES;
4MM:4000SQ.M. ~ 5000 SQ.M.(BY WEIGHT); DIFFERENT WITH ALUMINUM SKIN THICKNESSES;
Our factory was founded in 1994, has 20 years of experience in production and research and development, the existing staff of 500 people. Industry and trade integration enterprise, specializing in the production and sales of aluminum-plastic plate, steel structure, plywood, construction template and other building materials. DUOSHUN group sincerely look forward to cooperating with you!
