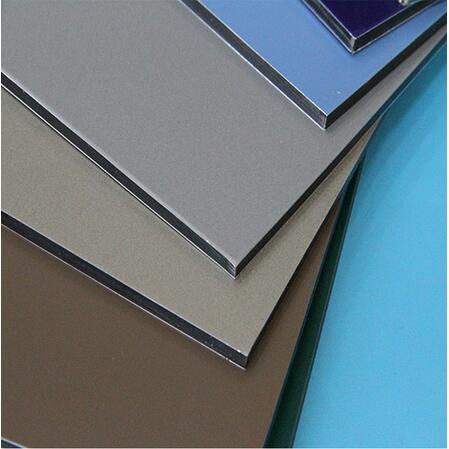

Cabinets Rattan/3mm Aluminum Composite Panel

Prod Model:	A1
Protective Film:	OEM Accepted
Surface Finishing:	Coating
Function:	Mould-proof
Usage:	Advertising
Certification:	ISO
Panel Thickness:	3mm4mm5mm
Aluminum Thickness:	006to0.5mm

Product Description

Product Description

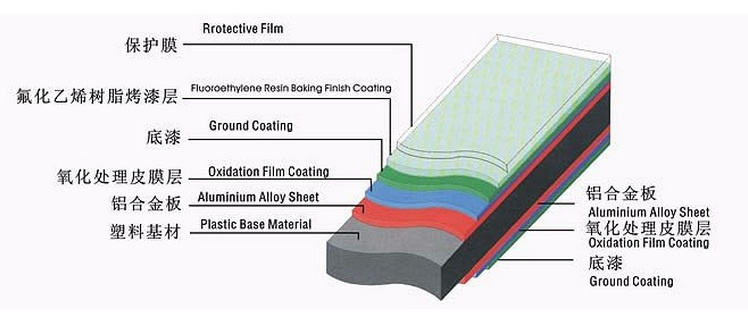

Aluminium Composite Panel (ACP) is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.
Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.

1 )Coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting.
2) Core:non-toxic polyethylene or fireproof material(B1).
3) Back:aluminium alloy sheet coated with polyester resin painting.
4) Surface finish: PVDF / PE coated,brushed finish, mirror finish, wooden grain,marble gt
5) Surface coating thickness :25~30 μm 70% KYNAR 500 PVDF or PE.

Name	ACP
Standard size	1220mm*2440mm
Width	1000mm,1220mm (regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum);
Length	2440mm~6000mm
Panel thickness	2mm-6mm
Panel thickness	0.04mm-0.50mm
Surface coating	Fluorocarbon resin (PVDF), polyester(PET) and other imitation marble, wood-like
Core material	wood-fire flame-retardant, high-voltage low-density polyethylene(PE)
Main ACP Product	PE coated ACP, PVDF coated ACP, Nano PVDF coated ACP, Mirror finish ACP, Brushed ACP, Wooden ACP, Granite ACP, PET film ACP and Fireproof core ACP.
Packing	nude packing or wooden packing for Sparkle lamination film white black red ACP aluminum composite sparkle crystal cabinet knobs closet drawer door pulls panel
OEM & ODM	Available, special size specifications can be custumized.

Detailed Image

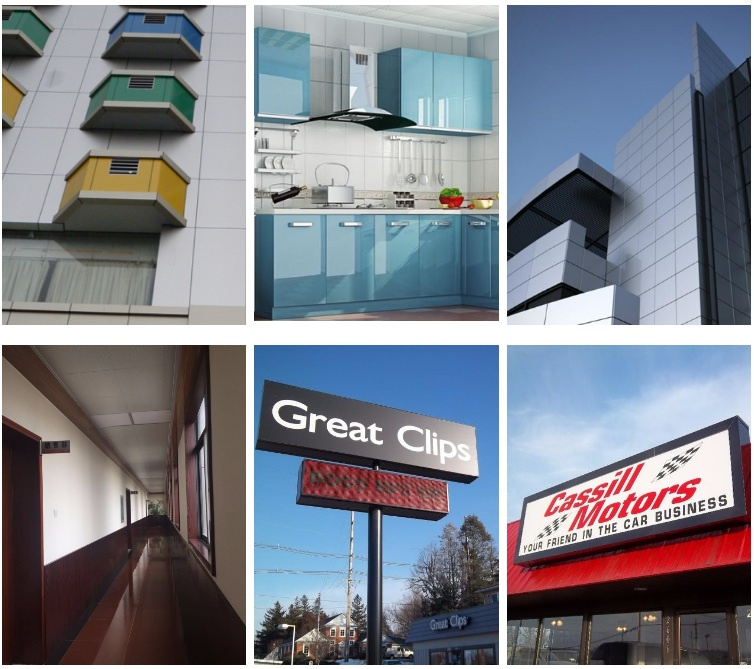

Case show

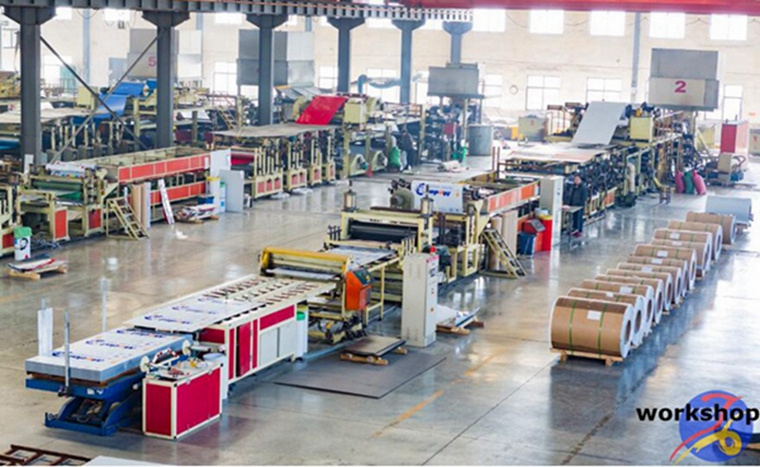

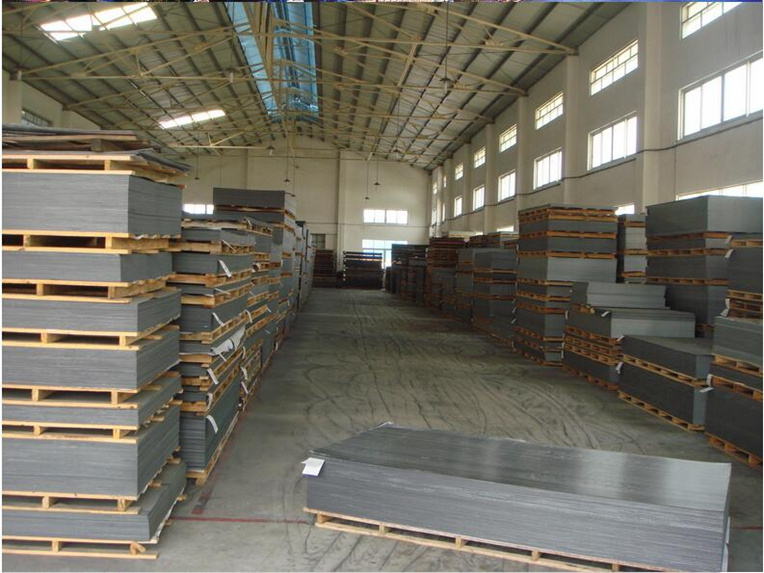

Our Company

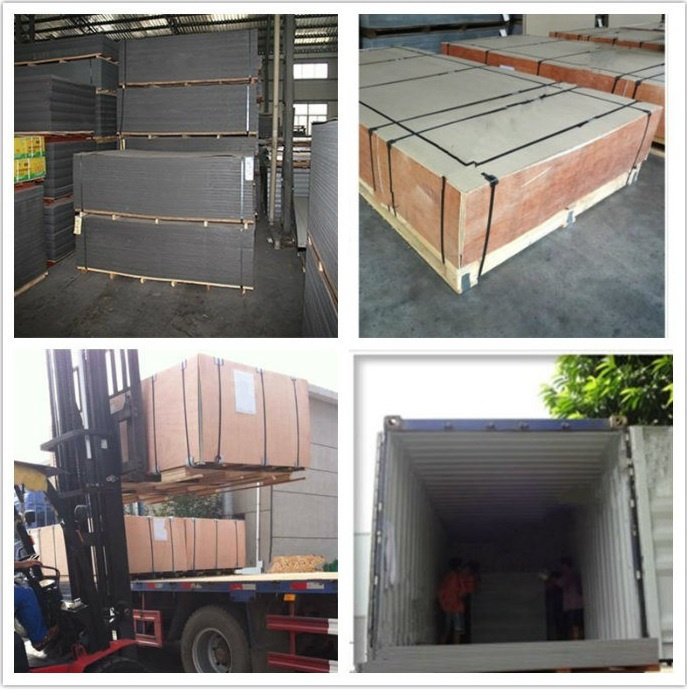

Packing of the Aluminium Composite Panel:
There are 2 ways to load Aluminum Composite Panel (ACP) for Full container: in bulk, or in wood box
DUE TO THE LIMITATION OF WEIGHT, NORMALLY WE USE 20'GP FCL.
REFERENCE QUANTITY IN 1X20'FCL OF 1220MM X 2440MM:
3MM:5000 SQ.M. ~ 6500 SQ.M.(BY WEIGHT);DIFFERENT WITH ALUMINUM SKIN THICKNESSES;
4MM:4000SQ.M. ~ 5000 SQ.M.(BY WEIGHT); DIFFERENT WITH ALUMINUM SKIN THICKNESSES;
