| Prod Model: |
JH-SL023 |
| Material For C-Frame: |
60X40X1.5mm Steel Pipe Coated |
| Colour: |
Based on Customer's Requirement. |
| Size: |
3000X750X900mm |
| Worktop: |
19mm Epoxy Resin/16mm Lab Grade Phenolic Resin |
| Drawer Slide: |
Dtc 3-Joints Drawer Slide Without Noise |
| Material For Drawer: |
1.0mm Steel Plate Coated with Epoxy Resin Powder |
| Material: |
Steel |
Product Description
Specification:

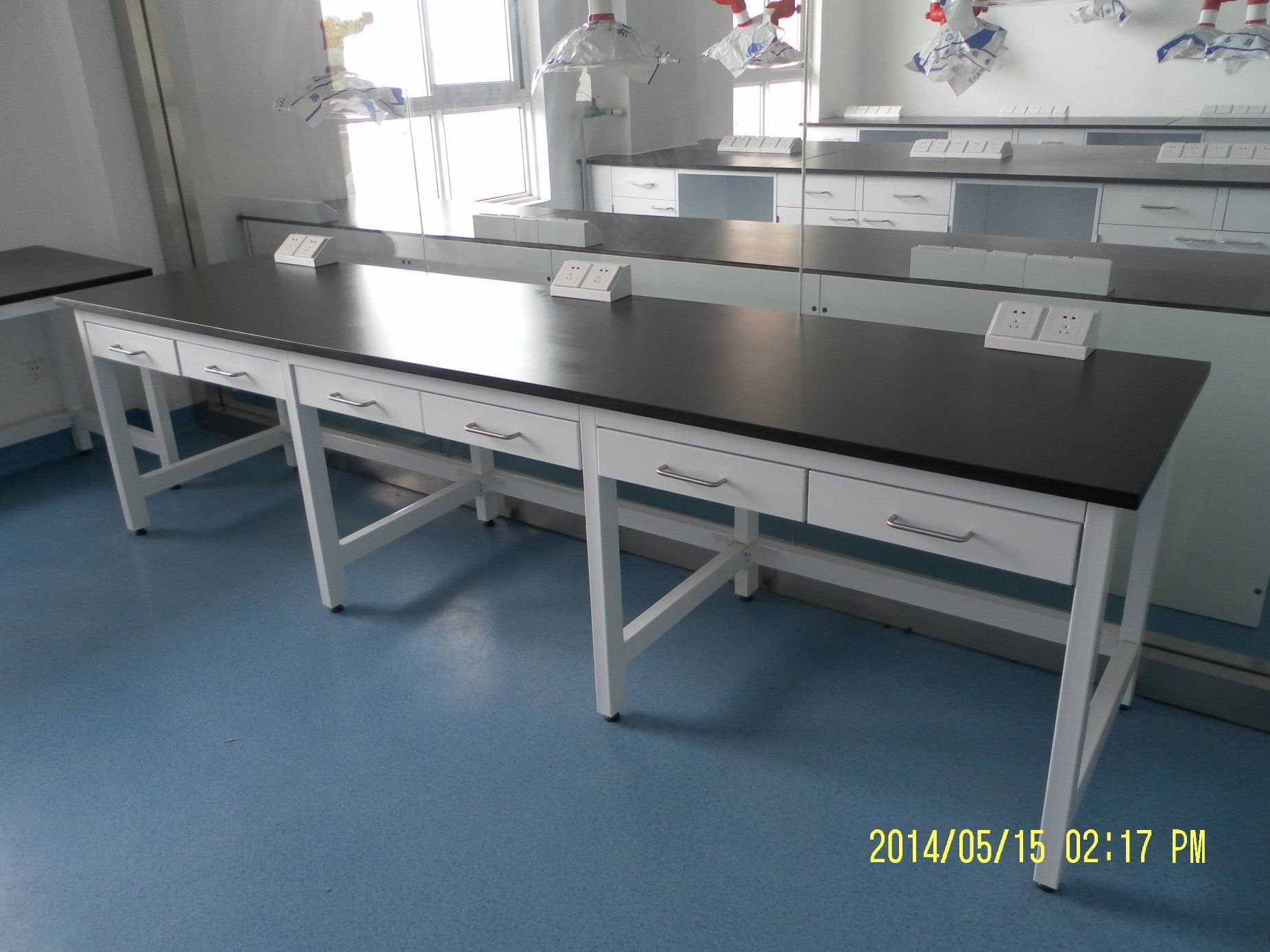

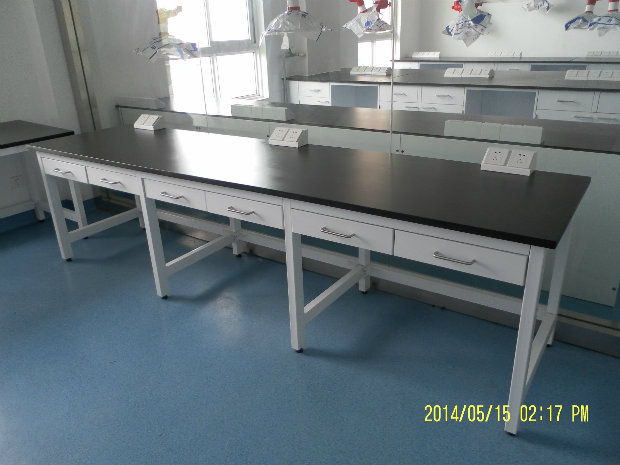

Product name: C-frame Steel Lab Furniture With Drawer
Type: JH-SL023
The size can be custom-made requested by customers.

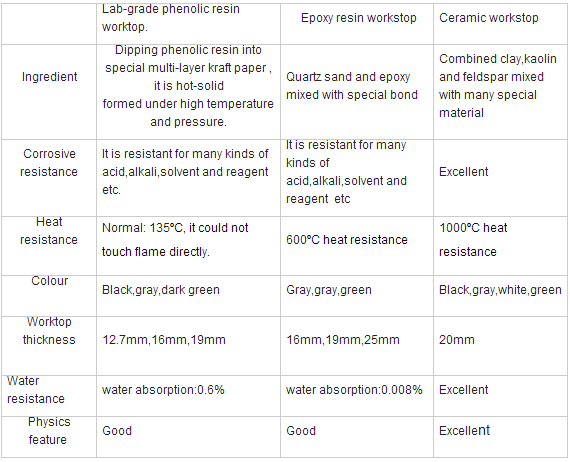

A. Worktop: The worktop is based on the requirement of customers such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.
B. Structure: Steel structure, the material for cabinet is 1.0mm BAOGANG cold rolled sheet. The processing procedures includes cutting, grooving, bending, shaping, assembling and polishing. The products are produced by precise CNC machine. All the welding points have been polished specially which will not hurt the hand. The inside cabinet is with front and back upright columns and reinforcing ribs to increase the bearing capacity and impact resistance capacity.
C. Drawer: The drawer is made of high quality cold rolled sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder.
D. C-Frame: It's made of 60x40x1.5mm steel pipe coated with epoxy resin powder.
G. Handle: Stainless steel U-type handle or long handle shaped once made of steel.
K. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.
Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.
Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.
We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.
Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.
Our company declare solemnly: We will furnish most professional information with the most honest heart if you are familiar with our field or not. Seeking the long cooperation with customers is our basic object. Pls tell us if you have any requirement for product quality or any suggestion for our products, we will furnish the best service for your satisfaction.
