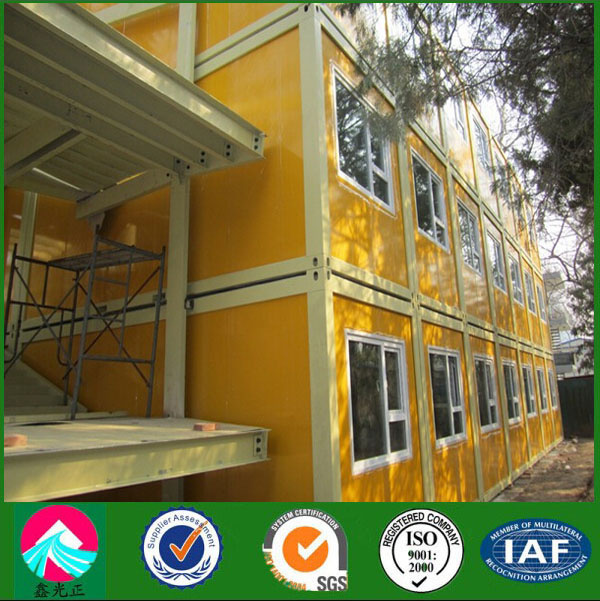

Brazil Sanwich Panel Prefabricated House

Brazil Sanwich Panel Prefabricated House
Price: US $ 40-50/Square Meter
Trade Terms: FOB,CFR,EXW
Min Order: 500/Square Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FW-PSSH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Qingdao China(Mainland)
Brand: Xgz
Wall: Sanwich Pannel
Skylight: Available
Surface: Galvanized or Painted
Dimensions: as Your Requirement
Material: Steel Structure
Usage: Workshop
Certification: BV
Customized: Customized

Product Description

Product Description

Technical Parameter:
Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150 kg/m2
6. Live load of corridor is 2.0kn/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Floor
Groud floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor;

Ceiling
Construction:
6mm Gypsum board for dry room
12mm PVC ceiling for wet room

Walls
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-1200mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3

Door
External door: Insulated with opening dimension 950*2100mm, furnished with lock
With 3keys. Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
Double tube fluorescent lamp, 220V, 50-60HZ
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

Sanitary ware
Western Close tool: Ceramic, with pipes and installation fittings
Urinal: Ceramic, with pipes and installation fittings
Wash basin: Ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

Product Details
                                                                    Main Material

Steel
Structure
and
Wall
Body
1.Wall structure frame"U" shape steel frame

Roof
&
Ceiling
1.Steel roof trussC80x40x15x2
    2.Roof panelLight weight cement
sandwich panel
 2.Exterior wallLight weight cement
sandwich panel
 3.Roof tileAsphalt shingle
 3.Exterior wall
decorative board
PVC plate 4.CeilingGypsum board
 4.Interior wallLight weight cement
sandwich panel




Floor
1.Floor lateral supportRound steel
 5.Interior wall
decorative material
Emulsion Paint or tile 2. Floor grider"H" steel
 6.Panel used in
Kitchen & toilet
Light weight cement
sandwich panel
 3. Floor panelLight weight cement
Sandwich panel
 7. Corner postSquare tube 4.Floor decorative boardTile or composite wooden floor  panel
 8.Wall PillarRectangular tube

 5.Toilet ground tilePolished tile




Since 1996, Qingdao Xinguangzheng Bere Steel Structure Co., Ltd. Has been specialized in designing and manufacturing steel structure workshop, steel structure warehouse, steel structure aircraft hangar, steel structure building, steel structure poultry house and prefab houses. We also passed approval of CE, BV, SGS and ISO9001 Certification. We can send our engineer to the project site overseas. Besides, We also have our own abroad guiding installation team consisting of more than 30 people. Our steel structure buildings products have been exported to Ethiopia, Tanzania, Nigeria, South Africa, Algeria, Dubai, Saudi Arabia, Thailand, Australia, France, Germany etc. Around the world.

Production Capacity

Highly precise equipment including gantry planers, automatic submergde arc welding equipment, assembling machines, slitting machines, and shot blasting machines. We have three EPS sandwich panel production line, an annual output of 300, 000 meters; Eight corrugated steel sheet production line, an annual output of 1.225 million meters; Three production line for H section steel with an annual output of 50, 000 tons; C section steel production line six, an annual output of 4, 000 tons; A Z section steel production line an annual output of 3, 000 tons. In this way, the whole system from steel structure design, manufacture, installation to after-service was established.

R&D Capacity and Quality Control

The design team at Xinguangzheng is comprised of ten professional design engineers with master's or bachelor degrees, in addition to twenty detail designers. They are able to ensure and improve our product quality through technological innovation and strict management. They use software: Auto CAD, PKPM, 3D3S, Tekla Structures(Xsteel)V12.0. etc. Our 21 QC inspectors with up to 30 years experience rigorously tracking each step of production to ensure high qualified steel structure building, steel structure workshop, steel structure warehouse, aircraft hangar and poultry house to reach our customers.

Honor & Certification

With the business principal of "credibility determines brand", we have got lots of honors: National Class-B Certificate of Professional Contracting of Steel Structure Projects; Top 10 Corporations for Professional Contracting of Building Construction in Qingdao City; Key Enterprises in Pingdu City; Trustworthy Enterprises in Shandong Province and so on. We have passed the approval of ISO: 9001: 2008, BV, SGS Certification, also we have got the qualification certification of construction enterprise: Class I Speciality Contractor for steel structure project.

Why choose us

We have rich experiences on steel structure workshop plant warehouse construction, equipments supply and installation, construction and installation of steel structure for 18 years. With high professional technical forces and completely related supporting facilities, concentrating on customers'satisfaction, we provide our customers with full sets of equipment scheme project to creat steel structure integration project.

With comprehensive advantages of light weight, industrialized manufacture, fast installation, shorter construction time, good performance of anti-quake design, fast investment recovery period, environment friendly, the steel structure has been reasonably and widely used in construction area all over the world, especially in the developed countries and regions. Our steel structure workshop, steel warehouse building, steel structure poultry house, aircraft hangar and prefab house have been exported to more than 60 countries, such as Ethiopia, Tanzania, Nigeria, South Africa, Algeria, Dubai, Saudi Arabia, Thailand, Australia, France, Germany etc. Around the world. Provided with professional equipments, skillful consulting team and completely construction scheme on steel structure integration project, you are welcomed to visit us.
