Boltless Storage Shelving Rack Metal Medium Duty Racking /Shelf

Boltless Storage Shelving Rack Metal Medium Duty Racking /Shelf
Price: US $ 40-80/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: YJG-Z12
Certification: ISO9001/ISO14001/ISO18001
MOQ: 100 PCS
HS Code: 73089000
Material: Steel
Structure: Rack
Mobility: Adjustable
Closed: Open
Development: Conventional
Serviceability: Common Use
Height: Sizes Can Be Customized
Weight: 500-4000kg/Level

Product Description

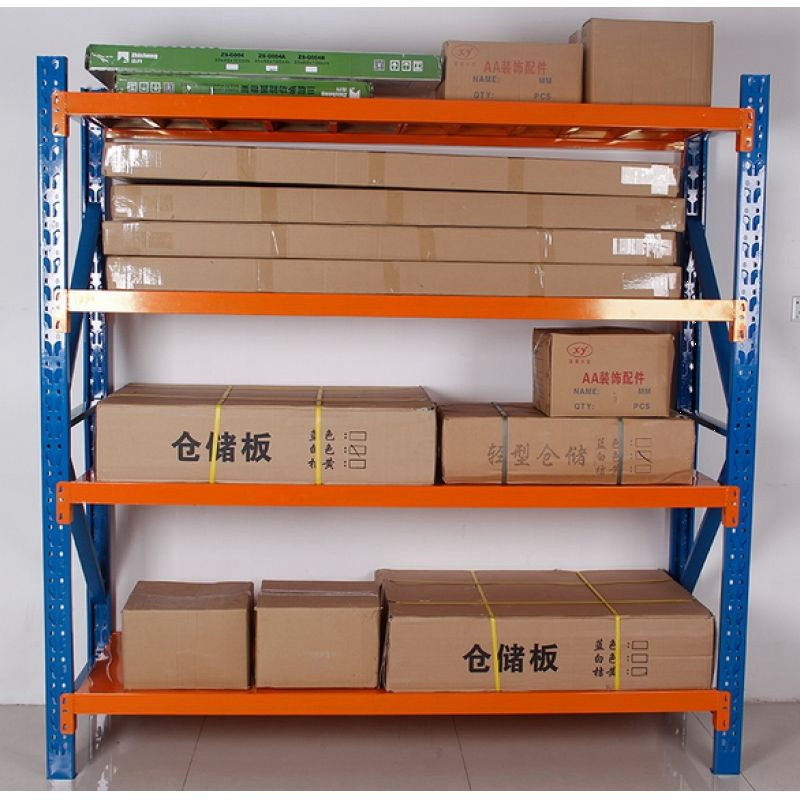

Boltless Storage Shelving Rack Metal Medium Duty Racking /Shelf

Medium Duty Rack Structure:
  1. Rack column is made of cold-rolled steel by a special roll forming machine. The upright column heads double row holes at 50mm pitch along a straight line. Column hole used to mount beams. The two columns are opposite, with the horizontal connecting beam and the diagonal bracing in the middle to assemble two columns into a shelf.
  2. Beams using "P" type pipe, commonly known as "ladder beam." The height of the ladder matches the height of the deck.
  3. Shelves steel plate with cold-rolled steel, according to the required size bending on the four sides.
  4. Beam and column mounted, assembled into a frame, and finally laid steel plate, thus a complete set of medium-sized shelf molding.
  5. All parts of the shelf are well formed, all finished, polished, pickled, phosphated, fully automated powder electrostatic sprayed and dried. Produced shelf surface smooth, beautiful. Shelf layer can be adjusted up and down according to 50mm pitch, easy disassembly.

Features:
  1. Fully assembled structure. Free combination, installation, disassembly convenient and flexible.
  2. Column for the assembly structure. The steel buckles are inserted between the beams and columns, and set a safety lock to prevent falling off.
  3. Shelf material cross-section optimization. A variety of pipe selection, improve the bearing capacity.
  4. Column with 50mm adjustment hole spacing, can be adjusted according to the level of goods.
  5. Adjacent back direction between the columns can be used to strengthen the connection bar. The bottom of the column can be matched with the ground to improve the safety and reliability.
  6. Suitable for general manpower or stowage delivery. Heavy load, simple structure. Each layer of the maximum load of up to 300kg, and freely be adjusted at 50mm pitch. Easy installation, no screws, easy assembly and disassembly, and infinite connection.

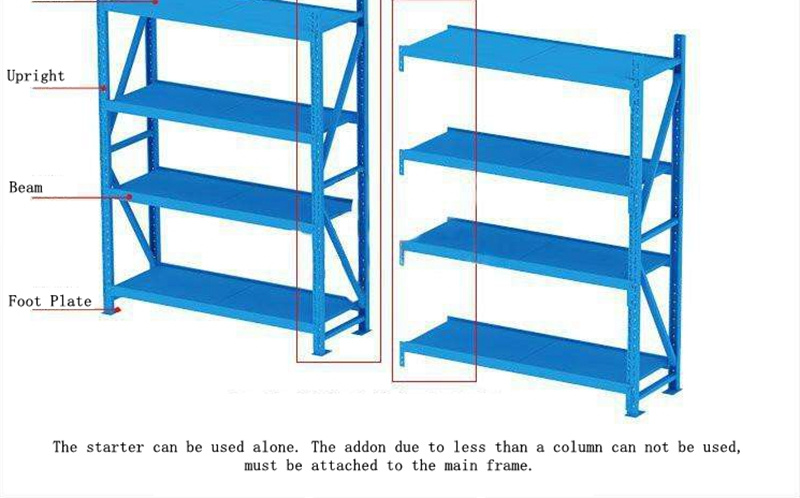

The composition of medium-duty racks:

Medium Duty Rack are assembled by columns, beams, laminates. Independent group has two pairs of columns. Such a shelf is called the main frame (Starter). If the assembly of several groups into a row, then in addition to the first group needs two pairs of columns, the other can share the columns in front of it, such a shelf is called the subframe (Addon).
Starter: two pairs of columns plus a few horizontal & diagonal bracing
Beam: 2 pcs/layer
Shelf board: are placed on top of two horizontal beams
Add-on: one pairs of columns plus a few horizontal & diagonal bracing







Yuanjin Science & Technology Group Co., Ltd. Which is located in Zhangshu, Jiangxi, China. Companies registered capital of 61.88 million Yuan, with a total investment of 180 million Yuan, covers an area of over 30, 000 square meters.

It is known as the State High-tech Enterprise possessed strong technical force and well-equipped workshop. Moreover, it converges a number of talented staff who are expert at the field of machine, CNC machinery (Computerized Numerical Control machinery), product research, software development and so on. And has a number of advanced CNC mechanized assembly line and automatic picking, phosphating, electrostatic spray lines introduced from Germany. The main products are: File equipment, books equipment, storage equipment, medical equipment, insurance equipment, office furniture, six series and over 512 varieties. Various products has been selling throughout the country and exported to Russia, Brazil, South America, Southeast Asia and other countries and regions.

Our main products as below:

1. Library equipment series:

1) Mobile shelving for archive storage (including manual shelves and power shelves);

2) Bookshelf (material: Steel or steel/wood);

3) Steel cabinets;

4) Carrels and chairs;

2. Office equipment series:

1) Office tables and chairs;

2) File cabinest;

3) Various steel lockers;

3. Insurance equipment series:

1) Iron cash box;

2) Explosive storage;

3) Vault door

4. Industry storage

1) Pallet racks;

2) Pallets and wire containers;

Yuanjin Products have their own core technology and intellectual property. 81 items' technologies obtained national patent certificates. "Yuanjin" trademark is identified as "Chinese Well-known Trademarks" by the State Administration of Industry and Commerce. "Yuanjin" brand compact shelving and bookshelf products are named "Jiangxi Province Famous Brand Products" which has passed through the ISO9001 quality management system certification, ISO14001 environmental management system certification, China Environmental labeling products certification, and OHSMS18001 occupational health and safety management system certification.

Adhering to the spirit of "quality is source, credit is gold'', Yuanjin insists on leading the way for high quality products and superior service, providing you with perfect solutions on the filing storage and industry storage.
