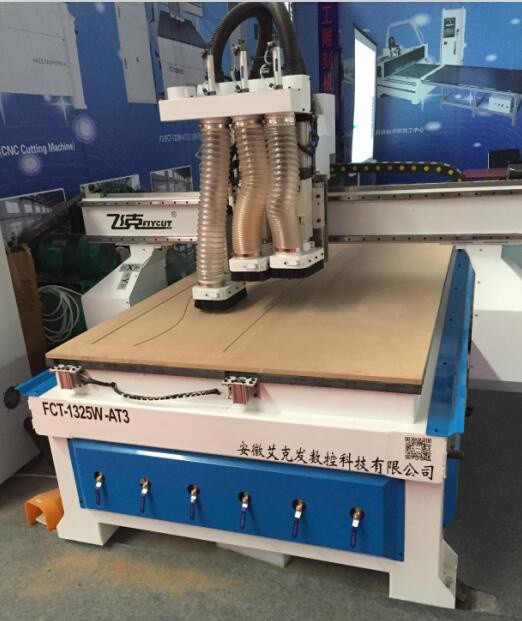

| Prod Model: |
FCT-1325W-AT3 |
| Model: |
Fct-1325W-At3 |
| Machine Size: |
1300*2500mm |
| Flat Working Size: |
1300X2500mm |
| Spindle Power: |
Air Cooling 6kw, 3.5kw*2 |
| Spindle Rotation: |
0-18000 Rpm |
| Tool Diameter: |
3.175, 4, 6, 12.7mm |
| Xyz Rails: |
Taiwan PMI |
| Mechincal Accuracy: |
<0.03/300 mm |
| Max Speed: |
30m/Min |
| Control System: |
Nc Studio |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Type: |
CNC ATS Wood Router |
| Spindle Number: |
3 |
Product Description
Application:
Large quantity production for different materials, best choice for making wood door, antique reproduction furniture, furniture making, instruments making, arts and crafts, vacuum 3D led box, aluminum composite boards, model-bulding, etc.
Features:
1. This machine use more different tools for carving different designs on wood, no need to change tools manually, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box- type structure to ensure high stability.
3. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical deisgn, scientific structure and generous appearance.
7. XYZ axis use abti-dust system, prevent dust during working, make sure long lifespan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters, etc.
9. HIgh accuracy, high torsion and professional gear box without any gaps, ensure high engraving accuracy.
10. Professional CNC control system, can compatiable with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Special configuration:
Servo motor and driver, large models, imported spindles, etc.
Our service:
1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
4. If you have any questions or requirement, feel free to contact us, it's our honour to serve you.
Techinical Parameters:
| Model | FCT-1325W-AT3 | FCT-1325W-AT2 |
| Table Size | 1300 X 2500mm |
| Working Size | 1300 X 2500 mm |
| Spindle Power | Air cooling 6kw,3.5kw*2 | Air cooking 6Kw*2 |
| Z Axis structure | Independent Z axis ,3 air cylinders ,high accuracy ball screw |
| Spindle rotation | 0--18000rpm |
| Motor Driver | Hybrid Servo |
| Tool diameter | 3.175, 4, 6, 12.7 mm |
| Machine structure | Industry square tube structure |
| Transmission | XY helical gear,Z ball screw |
| XYZ rails | Imported square rails |
| Mechanical accuracy | Less than 0.03/300mm |
| Engraving speed | 15000 mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net Weight | 1300KG | 1300KG |
