| Price: | US $ 35-85/Piece |
|---|---|
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | CB009 |
|---|---|
| Construction: | Frame |
| Material: | Russia Birch Wood |
| Style: | Customization |
| Certification: | Carb 2 |
| 1.Construction: Frame, full overlay, 1/4" reveal on the side and 1/2" reveal on top & bottom. | ||||||||
| 2.Material: | ||||||||
| 1 Door&drawer front: 3/4"thickness Solid Russian birch, shaker style, 2 3/4" stiles & rails | ||||||||
| 2 Face frame: 1 1/2"x3/4" Solid Russia birch | ||||||||
| 3 The carcass:All with CARB P2 standard plywood with wood veneer. | ||||||||
| A).Side panel,floor, top :1/2"plywood, | ||||||||
| B).Shelves;5/8"plywood, 10 1/2" depth for base cabinet , 10 1/2"depth for wall cabinet | ||||||||
| C).Back panel: 1/4" plywood with 3" x 1/2" frame. | ||||||||
| D).Drawer box: 5/8" solidwood with 1/4" plywood floor.dovetail joint | ||||||||
| 4 Hardware: A). White undermount glide( upgrade to soft closed under mount glide charge $4.3per drawer) | ||||||||
| B). 4 ways conceal Hinge( upgrade to soft closed hinge charge $0.33 per hinge) | ||||||||
| C). Handles are excluding | ||||||||
| 3.Finish: Box-UV clear coating for interior, UV coating for exterior(same color as door). | ||||||||
| Face Frame &Door: All PU painting | ||||||||
| Material | Feature | Thickness | Density |
| Partical board | Best choice for project, normal moisture resitant, low cost | 16mm/18mm/25mm | 620-660kg/m³ |
| HMR board | High moisture resitant, widely used for humid area (Austrilia/ Island country) | 16mm/18mm/25mm | 620-650kg/m³ |
| Plywood | Best material but more expensive, excellent nail-holding, not easy deformation, 100% water proof | 5mm/16mm/18mm | 570-630kg/m³ |
| MDF | Widely used for door panel, flatness, would be molding | 5mm/16mm/18mm/25mm | 680-720kg/m³ |
The Plywood with CARB 2 Certificate
All the plywood we used in cabinets are passed CARB 2 certificate, which guarantee our cabinets eco-friend, not easy deformation,100% water proof.

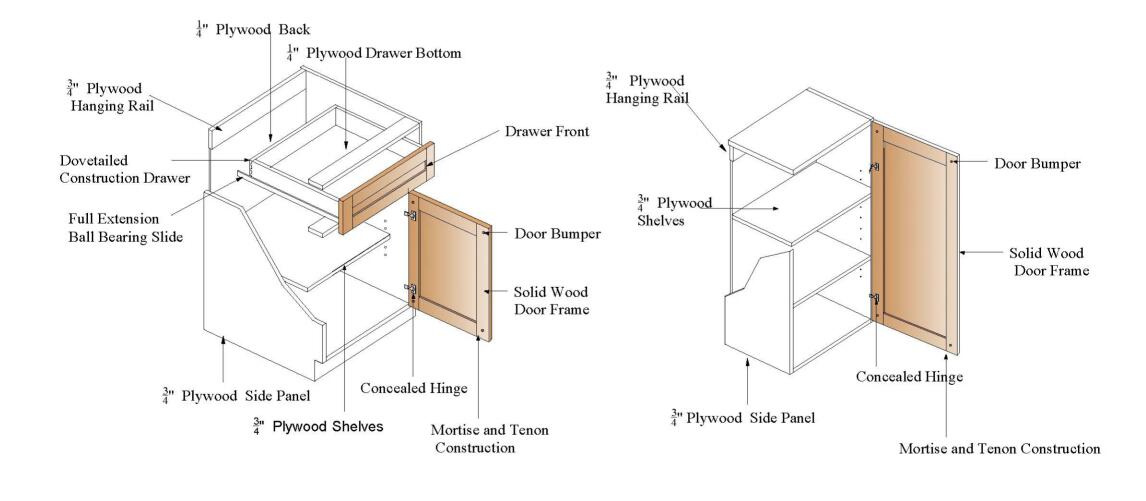

Face Frameless Cabinets Construction
Fuzhou Cabinext Furniture Manufacuring Co. Ltd is a professional millwork manufacturing company. We specialize in producing vanities, kitchens and wardrobe systems cabinets, also includes the accessories that pertain to this industry.
Cabinext has been in this field since 1998. During the past 20 years we have become one of the largest manufacturing and exporting companies in Fujian, China. Our facility encompasses more than100,000 sq ft with more than 150 experienced workers. Abundant human resources combined with our courteous and efficient management team make us very ompetitive in the international markets.
As an authorized ISO9001/2000 & SGS factory, using CARB 2 plywood in cabinets, the strictest quality control measures have been put in practice to cover all procedures. We ensure quality in these fields:
1. moisture content of solid woods
2. abrasion resistance to all finishes
3. structural stability
4. formaldehyde release levels
5. we also adhere to western standards with regards to lead and other hazardous product.
Welcome world-wide clients to contact us for mutually beneficial business.
Send me inquiry to got more information.
