| Price: | US $ 35-85/Piece |
|---|---|
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | CB003 |
|---|---|
| Construction: | Frame |
| Material: | Russia Birch Wood |
| 1.Construction: Frame, full overlay, 1/4" reveal on the side and 1/2" reveal on top & bottom. | ||||||||
| 2.Material: | ||||||||
| 1 Door&drawer front: 3/4"thickness Solid Russian birch, shaker style, 2 3/4" stiles & rails | ||||||||
| 2 Face frame: 1 1/2"x3/4" Solid Russia birch | ||||||||
| 3 The carcass:All with CARB P2 standard plywood with wood veneer. | ||||||||
| A).Side panel,floor, top :1/2"plywood, | ||||||||
| B).Shelves;5/8"plywood, 10 1/2" depth for base cabinet , 10 1/2"depth for wall cabinet | ||||||||
| C).Back panel: 1/4" plywood with 3" x 1/2" frame. | ||||||||
| D).Drawer box: 5/8" solidwood with 1/4" plywood floor.dovetail joint | ||||||||
| 4 Hardware: A). White undermount glide( upgrade to soft closed under mount glide charge $4.3per drawer) | ||||||||
| B). 4 ways conceal Hinge( upgrade to soft closed hinge charge $0.33 per hinge) | ||||||||
| C). Handles are excluding | ||||||||
| 3.Finish: Box-UV clear coating for interior, UV coating for exterior(same color as door). | ||||||||
| Face Frame &Door: All PU painting | ||||||||
| Material | Feature | Thickness | Density |
| Partical board | Best choice for project, normal moisture resitant, low cost | 16mm/18mm/25mm | 620-660kg/m³ |
| HMR board | High moisture resitant, widely used for humid area (Austrilia/ Island country) | 16mm/18mm/25mm | 620-650kg/m³ |
| Plywood | Best material but more expensive, excellent nail-holding, not easy deformation, 100% water proof | 5mm/16mm/18mm | 570-630kg/m³ |
| MDF | Widely used for door panel, flatness, would be molding | 5mm/16mm/18mm/25mm | 680-720kg/m³ |
The Plywood with CARB 2 Certificate
All the plywood we used in cabinets are passed CARB 2 certificate, which guarantee our cabinets eco-friend, not easy deformation,100% water proof.
Brand Glue
 |  |

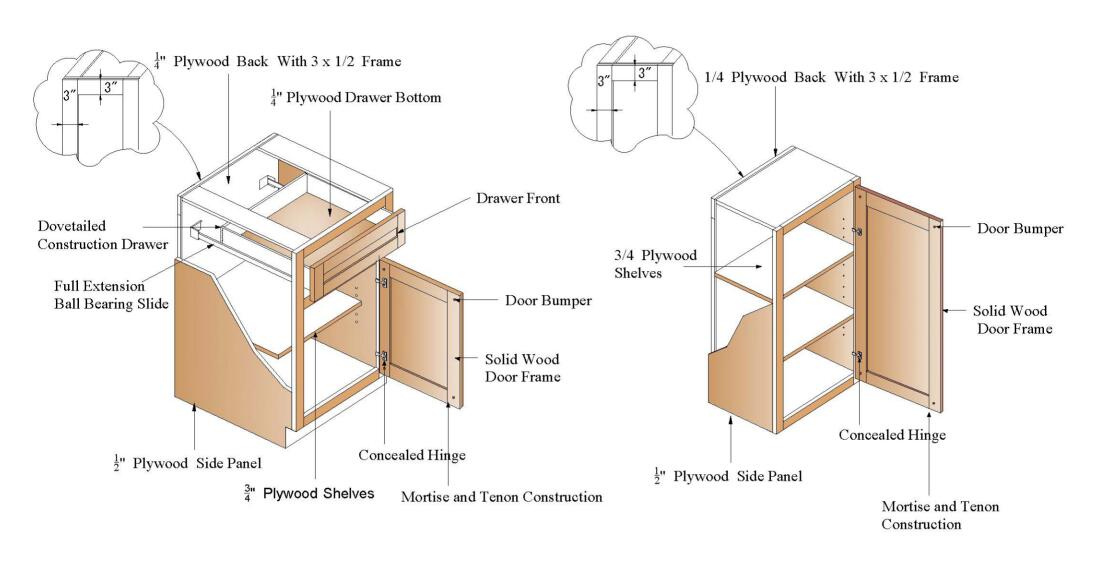

Face Frame Cabinets Construction
