| Prod Model: |
THR-FC001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Food Trolley Size: |
L1250*W540*H980mm |
| Material: |
Metal |
| Metal Type: |
High Quality Stainless Steel |
| Thickness Of Bottom: |
1.5mm |
| Thickness Of Other Parts: |
1.2mm |
| Weight: |
115kg |
| Working Voltage: |
220~380V |
| Heating Power: |
3.6-4.2kw |
| Heating Time: |
10-20minute |
Product Description

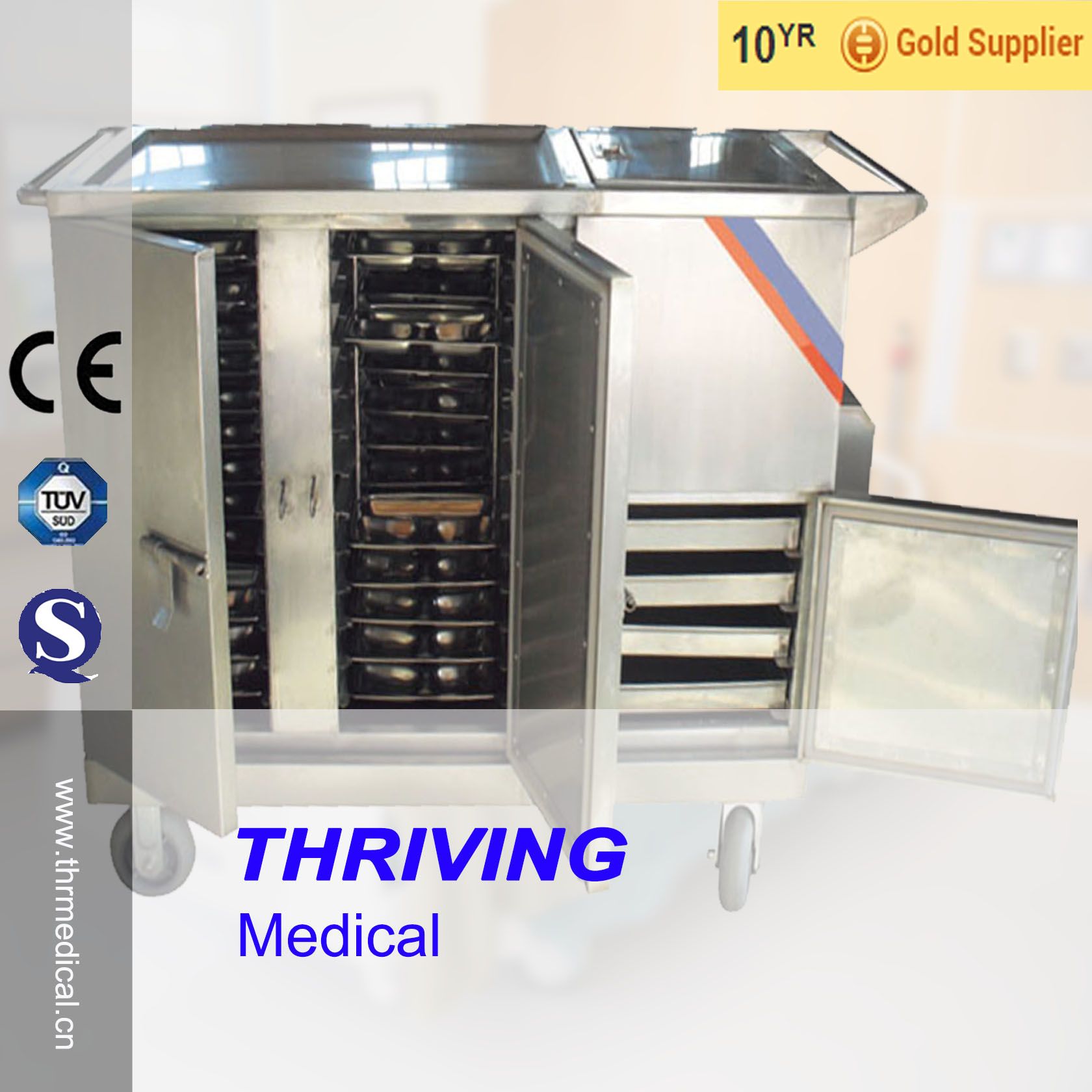

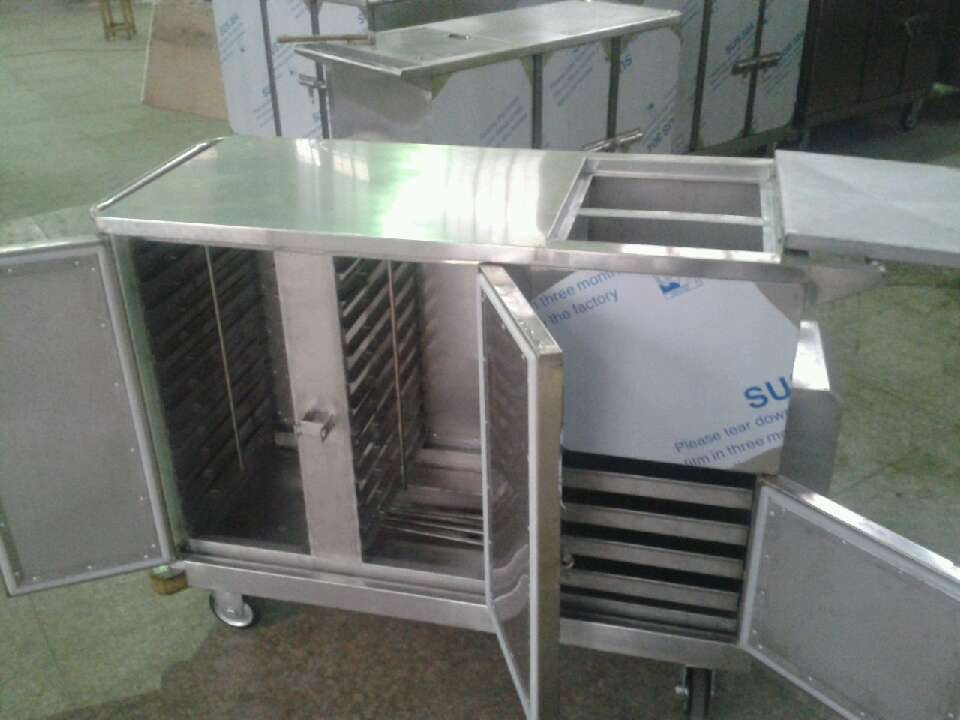

THR-FC001 hospital heating food trolley
Brief Description: 1.Heat retaining function
2.Able to contain up to 48 plates
3.Stainless steel Specification
1.Insulated food trolley's capacity of food plate:48pcs
2.Heating time(80-110°C)10-20minute
3.Heating power:3.6-4.2KW
4.Working voltage:220-380V
5.Weight:115kg
6.The main cart and electric controller box are separated.
7.When installing the electric controller box,should be connected with earth well.
8.Also our food cart can be used as food deliver cart without electric controller box.
Standard Accessories
Stainless steel fast foot plate--------------48pcs
Stainless steel soup bucket----------------2pcs [Size:200*290*290mm]
Stainless steel plate-------------------------- 4pcs [Size:400*320*40mm]
Installation :The main cart and electrict controller box are separated.When installing the electric controller box, should be connected with the earth well.Also our food cart can be used as food deliver cart without electric controller box.
Operating Method
1. When the food cart in working conditions,should be placed in the horizontal ground.
2. Inject enough clean water to the water plate in the bottom of the cart.
3. Put in all the foods to the cart,close the airproof-door.
4. Connect the food cart with electric controller box,also connect with power.
5. Push the switch to turn on the food cart,the light indicator in green show us in working condition.The working time could be fixed 1-20mins according to detail requirement.
6. When heating for10-20mins,power would be cut off automatically by the time-controller.
7. Checking the temperature on the board,should be 80-100°C.Because of the Heat retaining functions,the temperature will raise about 10°C.
8. As to different temperature each season,the heating time should be fixed flexible.

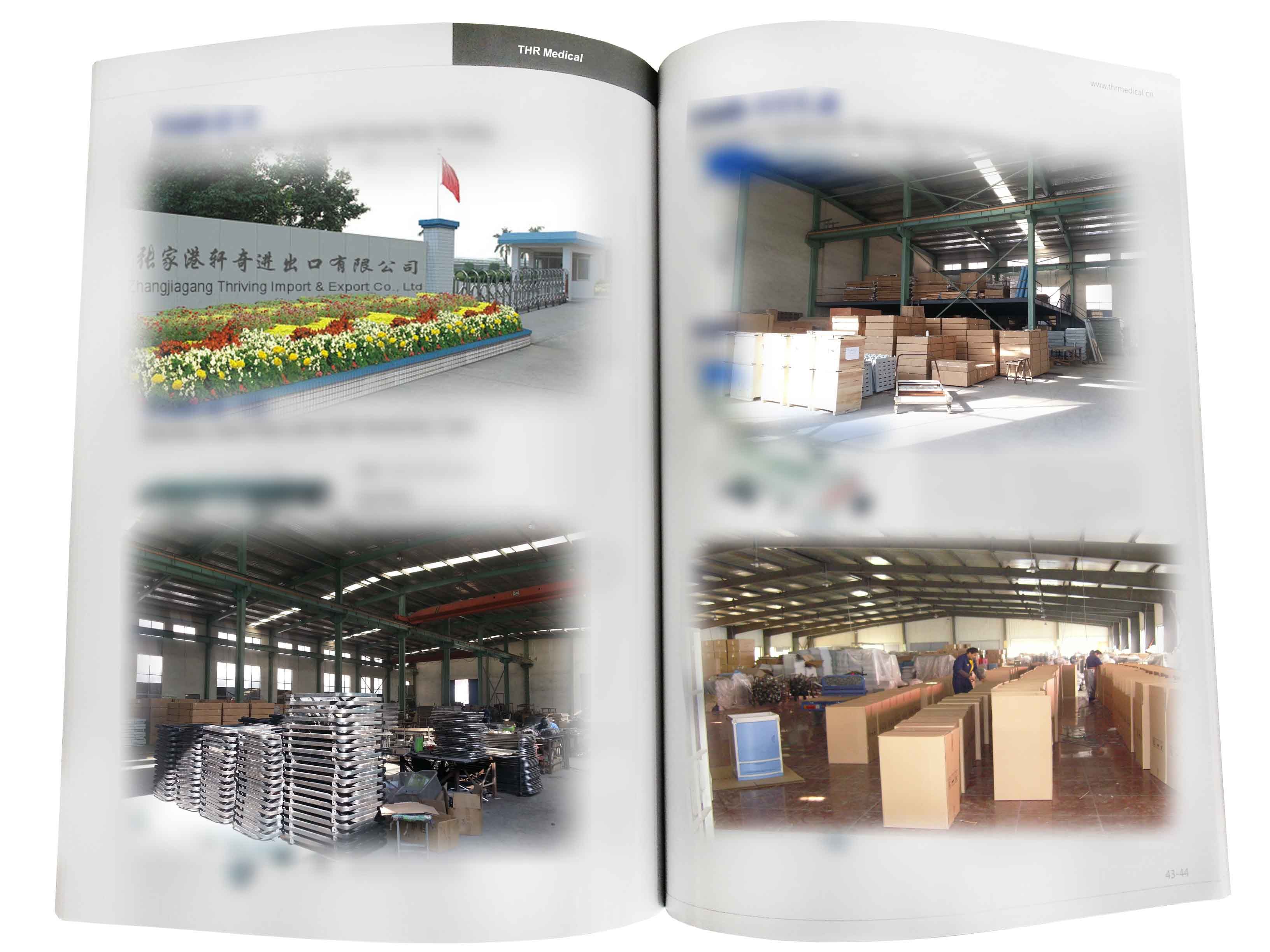

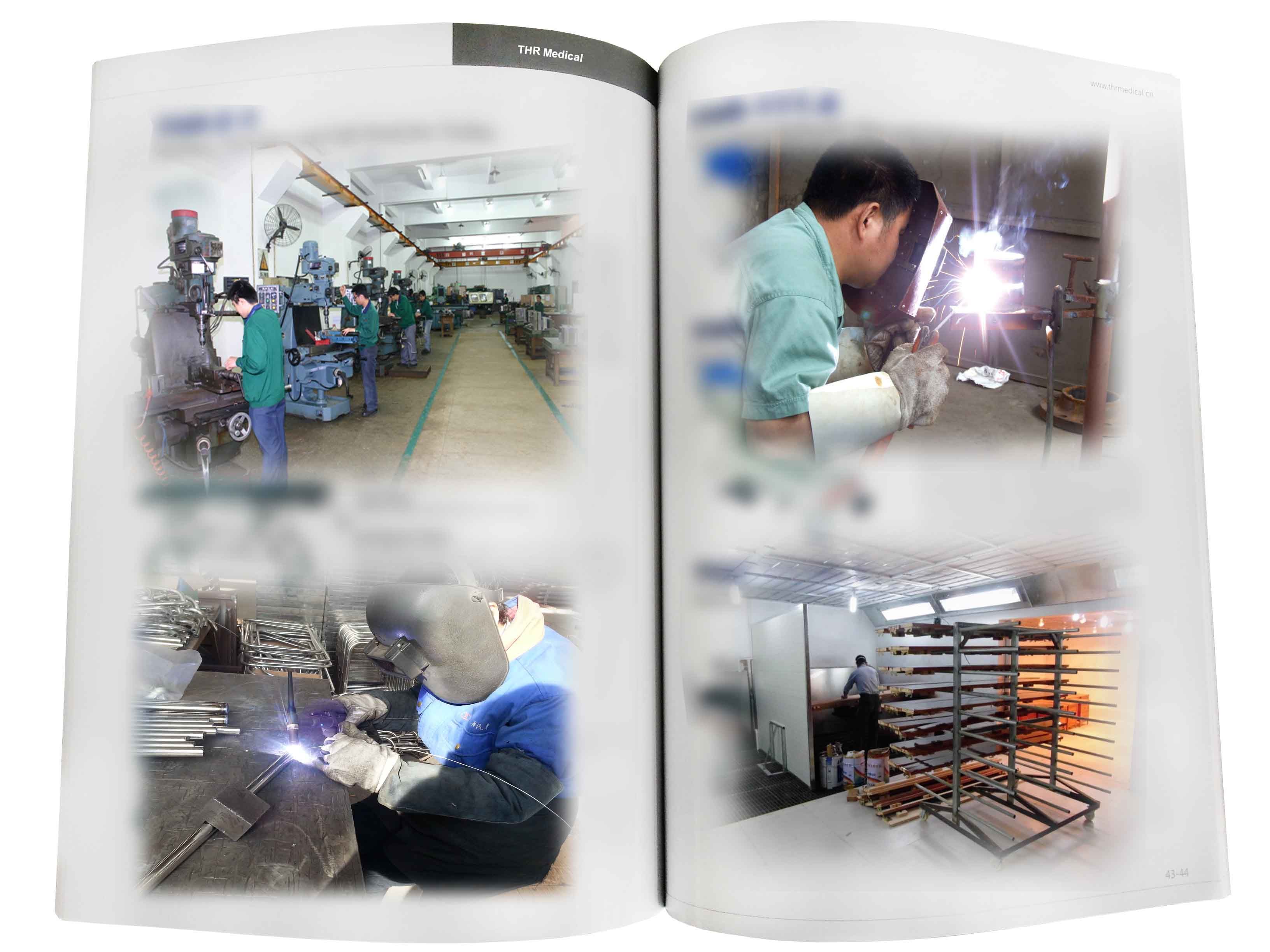

Factory Show:
Our advantages:
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries
| Specification | |
| outside dimension | 1250L*540W*980H mm |
| Material: | high quality 304# stainless steel. |
| Thickness of bottom | 1.5mm |
| Thickness of other parts: | 1.2mm |
| Food warmer | electric heated type |
| working voltage | 220-380V |
| Heating time(80~110°C): | 10~20min |
| Heating power: | 3.6~4.2kw |
| Door Open type | can be open freely from two sides of the cart. |
| Packing Dimension | 1430*695*1170mm=1.163cbm |
| N.W/G.W: | 130kg/160kg |
| Standard Accessories | |
| Stainless steel fast food plate: | 48pcs (270*210mm) |
| Stainless steel soup bucket: | 2pcs (200*290*290mm) |
| Stainless steel big meal plate: | 4pcs (400*320*40mm) |
Suzhou Thriving Medical Equipment Corp., was established in 2000. We are mainly engaged in hospital furniture, medical equipments, and funeral products etc. With strong technical force, advanced equipment and five large-scale production lines, we can complete deep processing of various metal products, specializing in the furniture and hardware products. In order to best meet customers' requirements, we have implemented a quality control system that is in strict accordance with ISO9001 standards.
Abut on Shanghai, Suzhou, Wuxi, Changzhou and other medium-large cities, we enjoy very convenient transportation arising from the Huning Expressway, Riverine expressway, Zhangjiagang port and Shanghai port. This advantageous geographical position has also facilitated our products' exportation and helped us expand overseas market and seek for overseas partnership.
Adhering to the management principle of 'Honesty, Dependence, Advance, Innovation', we offer excellent service and superior quality products at very competitive price to customers from around the world. Please feel free to contact us for more details.
