| Prod Model: |
A3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
18u,22u,27u,32u,37u,42u |
| Loading Capacity: |
800kg |
| Color: |
Black,Gray,White |
| Width: |
600mm,800mm |
| Depth: |
600mm,800mm,1000mm |
| Optional Service: |
OEM |
| Certificate: |
ISO |
| Protection Grade: |
IP20 |
| Doors: |
Vented Flat Mesh |
| Type: |
Server Cabinet |
| Fan Number: |
Four |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Vertical |
| Condition: |
New |
Product Description

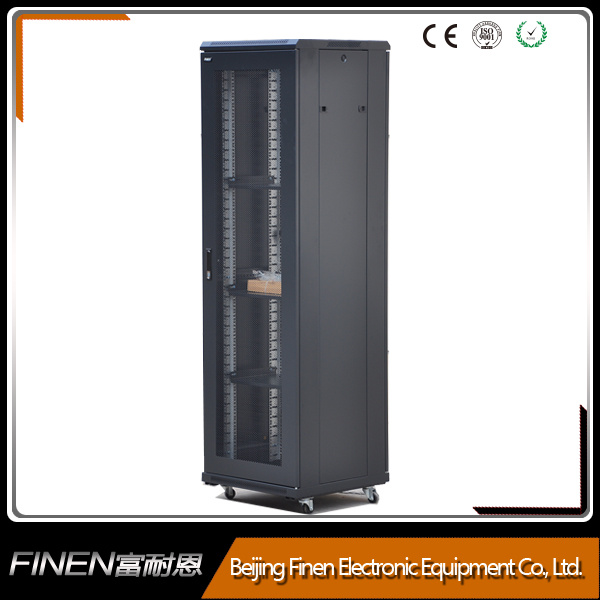

Best Sale OEM Server Rack Network Cabinet
1).20 year's production experience.
2).Certificate:ISO9001.
3).Quick delivery(7-10 days)
4)High quality & reasonable price
1. Product Information
1). Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Feature
-High-Density square holes Front Door With Over 180 Turing Degree-Vented rear door with round lock
-High-Density square holes Rear Door (Ventilation Rate Above 75%)
-Side Panel: Removable Side Panel, easy To Install And Miantain (Lock Optional)
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and eA3e of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, eas to install and remove, key locks available are accessory.
3). Main Material: SPCC Cold rolled steel
4). Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
5). Degree of Protection: IP20
6). Loading Capacity: 800kg
2. Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
3. Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
4. Other choice
AS series cabinet- with toughened glass front door and mesh rear door
WL series cabinet- wall mounted cabinet(4U 6U, 9U, 12U)
Cabinet Package Contents
No.
Component name
Quantity
Unit
Material
Remark
1
Top Cover
1
pc
SPCC cold rolled steel T1.0
2
Fan Unit
1
pc
---
With 2/4 fans
3
Mounting Profile
4
pc
Zinc plated T2.0
4
Mounting angle
6
pc
SPCC T1.2
4pcs for lower 30U
5
Frame
2
pc
SPCC T1.2
6
Lock
2
pcs
---
Handle lock
7
Front Door
1
pc
SPCC T1.2
Mesh door
8
Rear Door
1
pc
SPCC T1.0
Mesh door
9
Side Panel
2
pcs
SPCC T1.0
Removable
10
Bottom Panel
1
pc
SPCC T1.0
11
Screw
20
pcs
---
80pcs
12
Square Nut
20
pcs
SPCC T1.0
80pcs
13
Castor
4
pcs
Steel
14
Adjustable leveling feet
4
pcs
Steel
15
Other components are available according to request
Specification
Model No.
Capacity(U)
Width(mm)
Depth(mm)
Height(mm)
Cubic(CBM)
A3-6618
18
600
600
988
0.17
A3-6818
600
800
988
0.20
A3-6018
600
1000
988
0.23
A3-6622
22
600
600
1166
0.192
A3-6822
600
800
1166
0.243
A3-6022
600
1000
1166
0.30
A3-6632
32
600
600
1610
0.28
A3-6832
600
800
1610
0.33
A3-6032
600
1000
1610
0.38
A3-6637
37
600
600
1833
0.30
A3-6837
600
800
1833
0.35
A3-6037
600
1000
1833
0.42
A3-6642
42
600
600
2055
0.32
A3-6842
600
800
2055
0.38
A3-6042
600
1000
2055
0.46
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
