| Prod Model: |
11231BBC86 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Panel: |
LCD |
| Front Window: |
Motorized |
| HEPA Filter: |
Double H14 |
| Time Reserve: |
30minutes |
| Alarms: |
Airflow,Filter,Front Window |
| Noise: |
No More Than 65 dB |
| UV Lamp: |
15W× 1 |
| Fluorescent Lamp: |
40W× 1 |
| Lighting(Lux): |
:680 |
| Color: |
White |
Product Description
Product Description

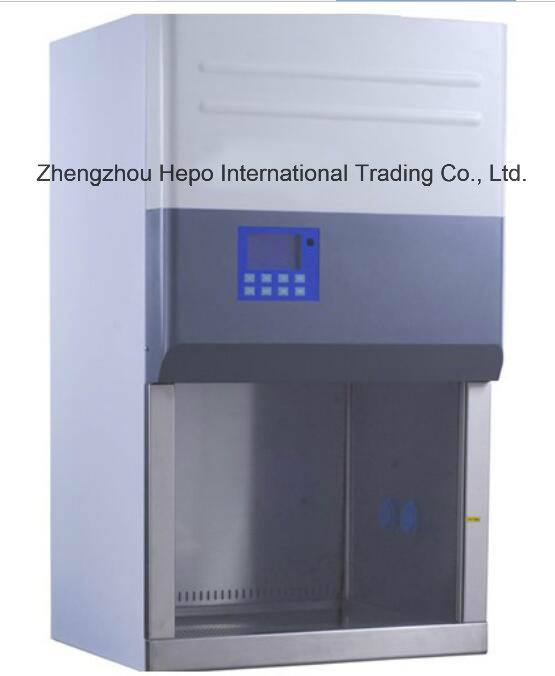

We developed this Mini style Biological Safety Cabinet for customers' table top usage.
Main Advantages:
1,Small dimension,save space.
2,Centrifuge fan,speed adjustable;H14 HEPA Filter.
3,Large LCD display:Operators can be check detailed status of the cabinet,such as inflow and downflow velocity,work area temperature and humidity,filter pressure,UV working time and filter working time,filter life indicator etc.
4,Time reserve function.30minutes can be saved after you active the cabinet and the sterilization waiting time after experiment finishing.
5,Motorized front window:The front window is motorized for convenient,one-hand operation.
6,Voice prompt function:Airflow alarm,filter replacing alarm and front window height alarm.
7,Optional:Base stand with caster
Technical Parameters
Internal Size(mm) | 600*500*540 |
| External Szie(mm) | 700*650*1230 |
| Tested Opening | Safety Height ≤ 200 mm |
| Max Opening | 400 mm |
| Inflow Velocity | 0.53 m/s |
| Downflow Velocity | 0.33 m/s |
| Filter | Two HEPA filter 99.999% efficient(0.3 microns) |
| Front Window | Two-layer toughened glass > 5mm |
| Noise | ≤ 65 dB |
| UV Lamp | 15W× 1 |
| Fluorescent Lamp | 40W× 1 |
| Lighting(Lux) | 680 |
| Power(W) | 800 |
| Waterproof Socket | 2 |
| Display | LCD display |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Material | Work zone interior is made of 304 stainless steel |
| | Body: Expoxy coated cold rolled steel |
| Base Stand | Height: 635mm |
| caster Wheel | Universal Wheel |
| Electrical | 110~240V/50~60Hz (optional) |
| Net Weight(kg) | 80 |
| Gross Weight(kg) | 110 |
| Package(mm) | 950× 850× 1430 |
| Standard Configuration | Body, UV lamp and Fluorescent Lamp |
| Optional Accessory | Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
