Pingxiang Bestn Chemical Packing Co., Ltd. >> Beehive Packing

Beehive Packing

Beehive Packing
Price: US $ 50-100M3
Min Order: 1M3
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: BT-BP
Type: Structured Packing
Usage: Chemical Industry Product
Effect: Reduce Cost
Material: PP
Source: PP PE PVC CPVC PVDF

Product Description

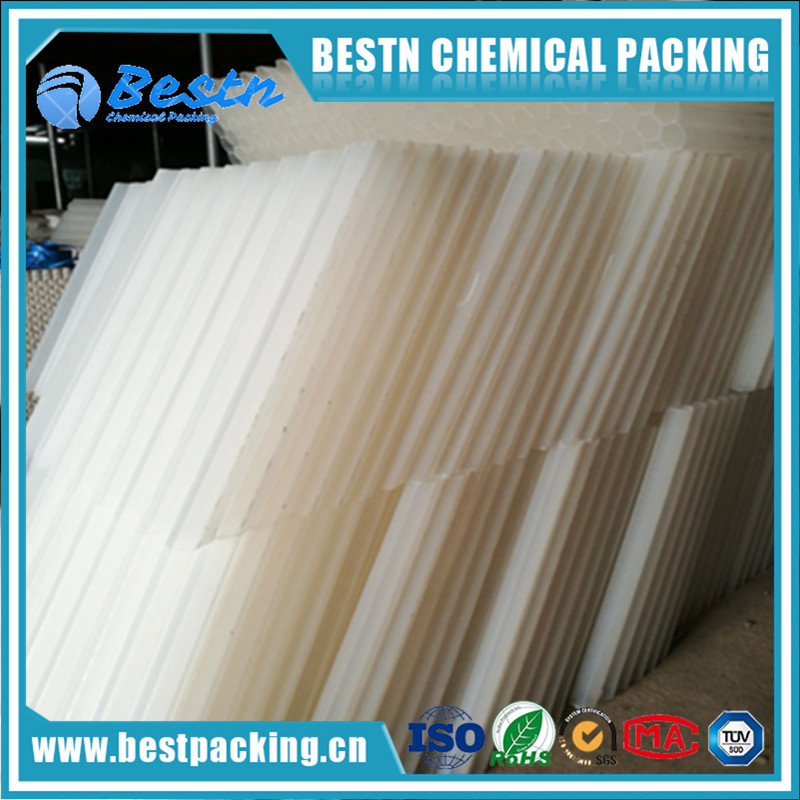

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.
tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
1. Process efficiency

From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5.Strong and high quality material
· We provides high stability of the modules for easy maintenance - PP material approved for high standards of potable water applications

Applications:
Design and build new clarifiers and settling tanks equipped with tube settlers
· Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput
· Provide replacement tube modules for existing installations
Our Environmental designs and builds liquid cleaning and recycling equipment including:
· Circular Clarifiers
· Parallel Plate Settlers
· Tube Settlers
· Horizontal and Vertical Clarifiers
· Air Strippers
· API Separators
· Oil Recovery Units
· Complete Engineered Systems

Technical Data
TypeThe key technical indexes
Inscribed circles diameterExteriors size of Single UnitAngle of bevelThickness of PipeWeight /Single Unit
Kg
DimenDeviaDimenDeviaDimenDeviaDimenDevia
PP
Oblique
Pipe
-sion-tion-sion-tion-sion-tion-sion-tion
25±1.51000
*500*
1000
±1060±20.4-0.5±0.0519-30
30±1.50.45-0.55±0.0518-27
35±2.00.5-0.6±0.0518-25
50±2.50.6-0.8±0.0814-24
Product namePP PVC RPP Plastic Inclined Fliter Tube Lamella Clarifier For Water Treatment
Material                      PP/RPP/PVC
 Certification                     ISO9001:2008
Others                     life span > 3years
Below are the different types of Tube Settlers
Model IHoneycomb Inclined Tube
Model IIS Wave Lamellas
 Model IIIOblique Wave Lamellas
 Model IVOblique Double Lamellas
 Model VOblique Cross Round Lamellas
 Model VICustonized Lamellas

Funtion1.Increasing settling area whitout incrasing footprints
2.Minizime turbidity load on filters
3.Cut coagulant dosage by up to half
4.Ingegrate sedVac & Polychem for sludge removal
5.Increase alloable flow capacity by expanding settling capacity and incresing the solid removal rate in the settling tank.
6.New installation can be designed smaller because of the increased flow capacity
7.Less filter backwashing equates significant

Application1.Drinking water & wastewater treatment plants
2.Water following physical & chemical treatment
3.Tailing in mining and metallurgical beneficiation
4.Solutions from gold leaching processes
5.Wet scubbing effluents
6.Effluents treatment in pulp and paper mills
7.Filter backwash











Pingxiang Bestn Chemical Packing Co., Ltd was established in 2007, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in Hi-Tech Industrial Park, Development area, Pingxiang city, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

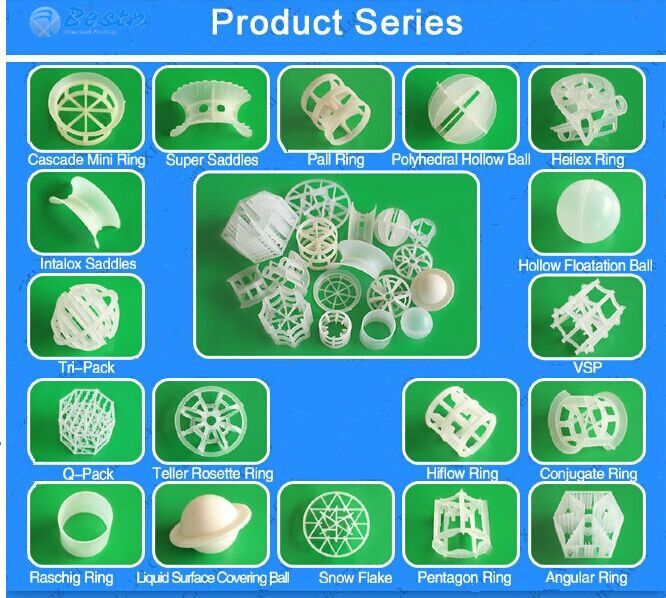

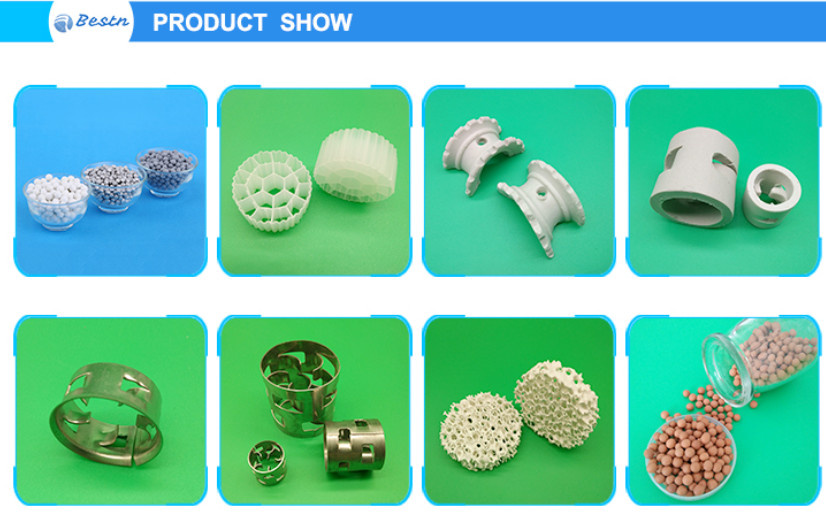

Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, Plastic lamella clarifiers, MBBR Media, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001: 2008 certificate, SGS report, etc. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven Continents.

Since its foundation, our company keeps living up to the belief of "honest selling, best quality, people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with you, also warmly welcome to visit our factory.
