| Prod Model: |
BAE500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Electric Hospital Bed |
| CPR Release Mechnism: |
Yes |
| Battery Backup: |
Yes |
| Motor: |
Linak |
| Size: |
2230*1050*450-790mm |
| OEM&ODM: |
Available |
| Certificates: |
ISO, CE |
| Steering Fifth Castor: |
Yes |
| PP Long Siderail: |
4PCS |
| Embeded Button: |
to Reach All Function |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

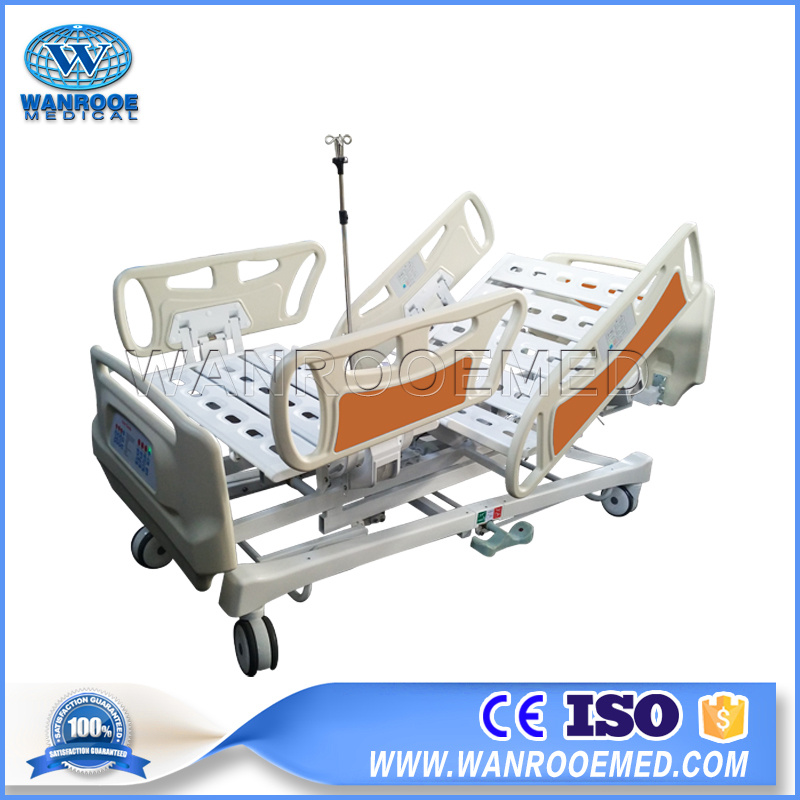

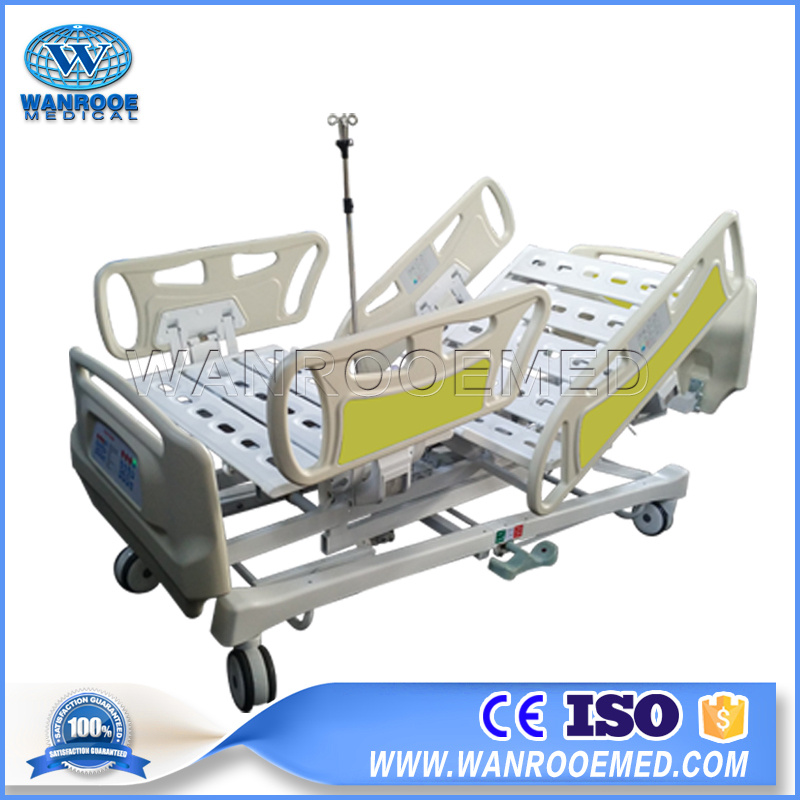

Bae500 Hospital Medical Electrical Adjustable ICU Bed with Battery
Feature:- StayPut Retractable bed frame design(Patient will feel very convenient while be on drip or used the heart monitor since it won't need to change patient position when the bed back section rise and low.)-optional
- Central braking system-6 inch diameter castor/fifth castor for direction all reached by foot pedal located in middle of bed.
- Made of superior cold-rolled steel
- One step forming sleeping bed
- Treated by shot blasting, electrophoresis and powder coating
- Four pieces of PP complete side rails, full protection with zero gap, tuck-away
- Nurse controls on footboard and siderails
- Fixed patient controls on siderails
-Electronic function lockout controls on footboard
- Degree indicator for head elevation and leg section
- Four independent motors, standard: LINAK brand
- Automatic Weighting-optional
- CPR quick release handles on both side of bed
- battery back up
-auto contour feature simultaneously raises both the head and the knees
- Wire hiddenStandard Specification:
Model number | BAE500 |
| | |
| Measurement | Overall size(L*W*H): 2230*1050*450-790mm(with 6 inch diameter castor)
Patient Touching surface: 1960*900mm |
| Weight Load | Fully tested sturdy construction capable of taking a maximum user weight of up to
250kg |
| Function | Backrest max upward angle: 75° |
| Footrest max upward angle: 40° |
| Height: 450-790mm (castor diameter:6 inch) |
| Trend/Reverse Trend.±12° |
| Power | 220VAC or 110VAC Frequency: 50-60HZ
Power Plug: EU type standard if other type, confirm each order |
Standard Accessories List:| Headboard/Footboard | 1 set |
| Siderails | 4 pcs |
| I.V pole | 1 piece |
| Castor | 4 pieces/5 inch |
| Drainage Hook | 2 pieces/each side, total of 4pcs of hooks |
| Motor | 4 pcs |
Optional:1. Over Bed table
2. beside locker
3. Mattress(sponge mattress, or Bedsore prevention mattress ) Details:
