| Prod Model: |
BAE313 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mattress: |
Optional |
| Height: |
450-700mm(Castor Diameter: 5 Inch) |
| Loading: |
200kgs. |
| Power Plug: |
EU Type Standard If Other Type, Confirm Each Order |
| Power: |
220VAC or 110VAC |
| Frequency: |
50-60Hz |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Three-function |
| Certification: |
ISO13485 |
Product Description

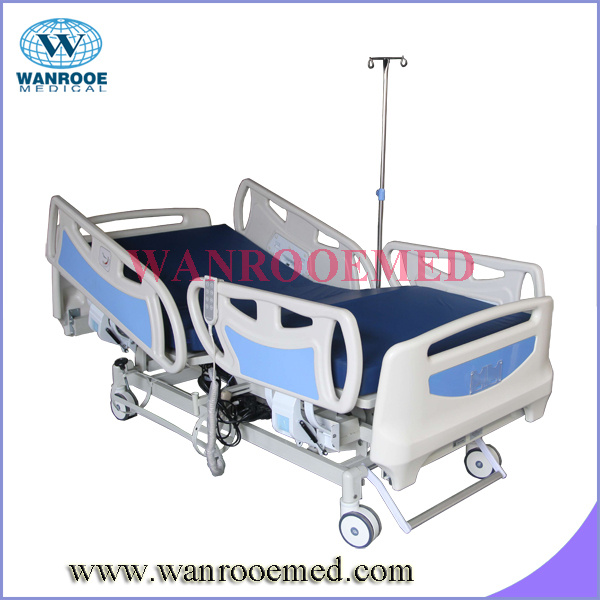

BAE313 Hospital Furniture Three Function Electric Hospital Medical Bed
General Description:
This WANROOEMED BAE313 Full Electric Three Motor medical bed consists of Cold-rolled steel plate and 4 pcs of complete PP siderails.
Feature:
- Made of superior cold-rolled steel
- One step forming sleeping bed
- Treated by shot blasting, electrophoresis and powder coating
- Four pieces of PP complete side rails, full protection with zero gap, tuck-away
- Degree indicator for head elevation inside of siderails
- Central braking system-5 inch diameter castor
- Three independent motors
- Oxygen Bottle Holder
-IV stand holder, Urine hook, IV pole
-patient chart holder on footboard
-auto contour feature simultaneously raises both the head and the knees
Optional:
1. Over Bed table
2. beside locker
3. Mattress(sponge mattress, or Bedsore prevention mattress )
Standard Specifications
| Model number | BAE313 |
| | |
| Measurement | Overall size(L*W*H): 2160*1050*450-700mm(with 5 inch diameter castor)
Patient Touching surface: 1960*900mm
Siderails up: 1050mm
Siderail down:990mm |
| Weight Load | Fully tested sturdy construction capable of taking a maximum user weight of up to
250kg |
| Function | Backrest max upward angle: 75° |
| Footrest max upward angle: 40° |
| Height:450-700mm(castor diameter: 5 inch) |
| Power | 220VAC or 110VAC Frequency: 50-60HZ
Power Plug: EU type standard if other type, confirm each order |
Standard Accessories List
| Headboard/Footboard | 1 set |
| Siderails | 4 pcs |
| I.V pole | 1 piece |
| Castor | 4 pieces/5 inch |
| Drainage Hook | 2 pieces |
| Motor | 3 pcs |
