| Prod Model: |
FACT-1325W-AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300X2500X200mm |
| Spindle: |
Water Cooling Spindle |
| Spindle Power: |
5.5kw |
| Spindle Rotate: |
6000~24000rpm |
| Operating System: |
Nk320 |
| Motor: |
French Schneider Servo Motor |
| Engraving Speed: |
12000mm/Min |
| Transmission: |
Xy Gear Rack, Z with Tbi Ball Screw |
| Inverter: |
Best or Fuling |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Triple-Spindle |

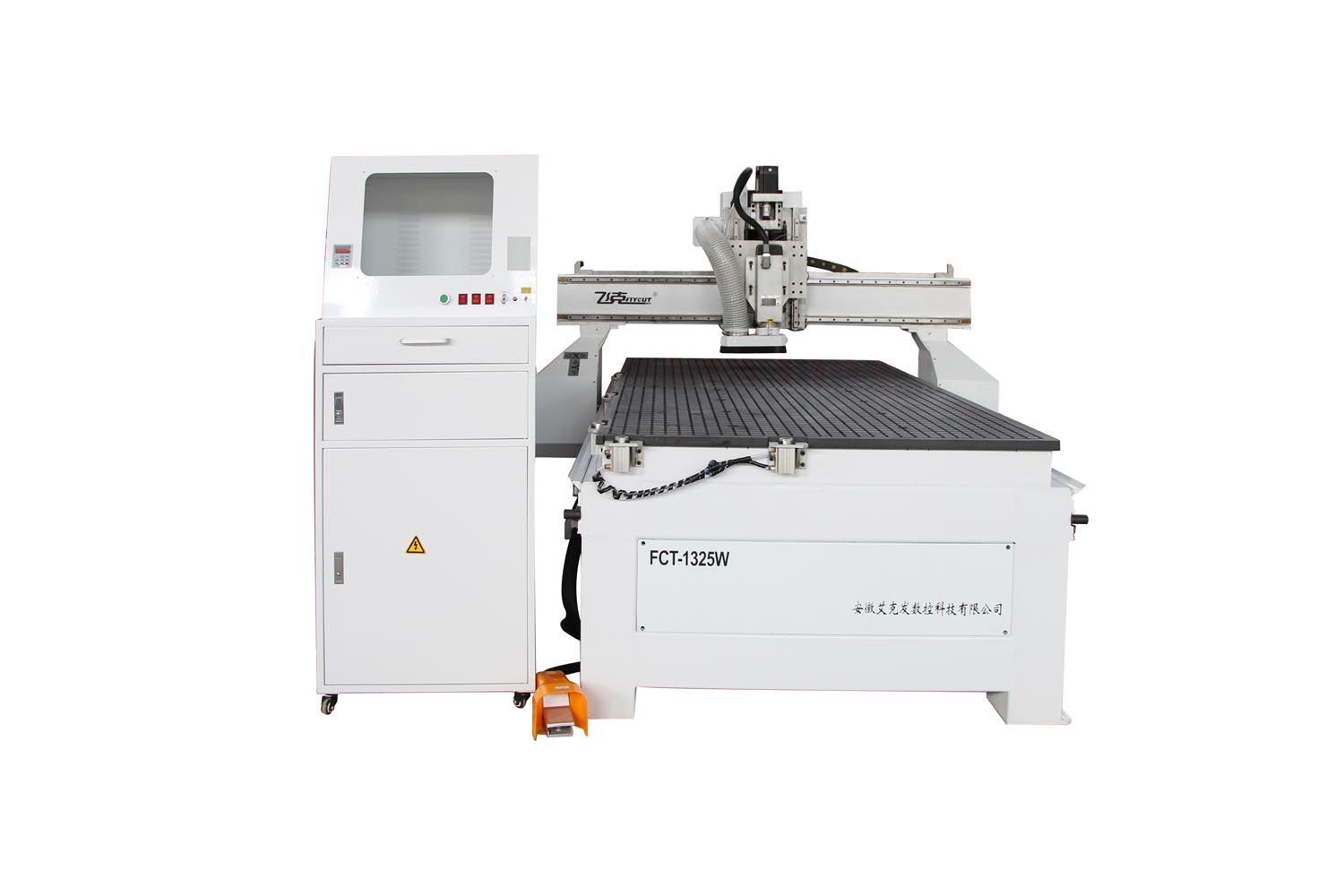

Product Description
Machine features:
1. Intelligent linear ATC System, change tools fast and easily with 6~10 pieces auto tool changer.
2. Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows.
3. 5.5kw water cooling spindle,big cutting power and low noise.
4. Table surface using vacuum system (option: T-slot and vacuum table)
5. Z with ball screw and XY all apply imported gear rack, high precision gear frame and linear square guide, ensure the high accuracy.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7. High quality driver motors, spindle motors, cables, inverters, etc.
8. Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Technical Parameters:
Model | FCT-1325W-AT |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | water cooling 5.5KW |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | imported servo motor |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | <0.03/300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 1200kg |
Special configuration:
Servo motor and driver, large models, imported spindles, etc.
We are a specialized manufacturer for kinds of cnc machine and co2 laser machine in China.Looking forward to cooperating with cnc machine AGENTS all over the world.We will afford you products with good quality and competive price!
