| Prod Model: |
OC-100 |
| Working Room Size: |
400*500*500mm |
| Diameter Of Holder: |
350mm |
| Temperature Range: |
0-100 Degree |
| Humidity Range: |
30%~98% R.H |
| Temperature Fluctuation: |
+/- 0.5 Degree |
| Ozone Concentration: |
1~1000pphm (Adjusted) |
| Air Flow Speed: |
12-16mm/S |
| Clamps Tensile Stretch: |
5%~35% |
| Max Ozone Concentraction: |
120g O3/M3 |
| Standard: |
ASTM D 1149, IEC60811-403 |
Product Description

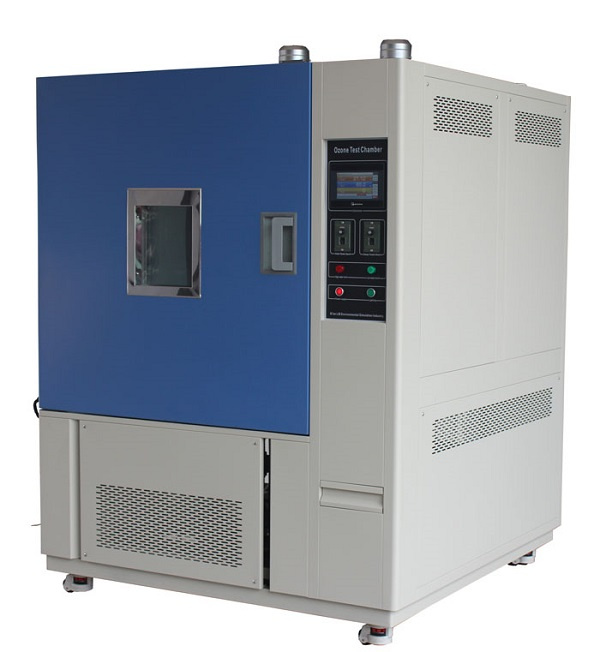

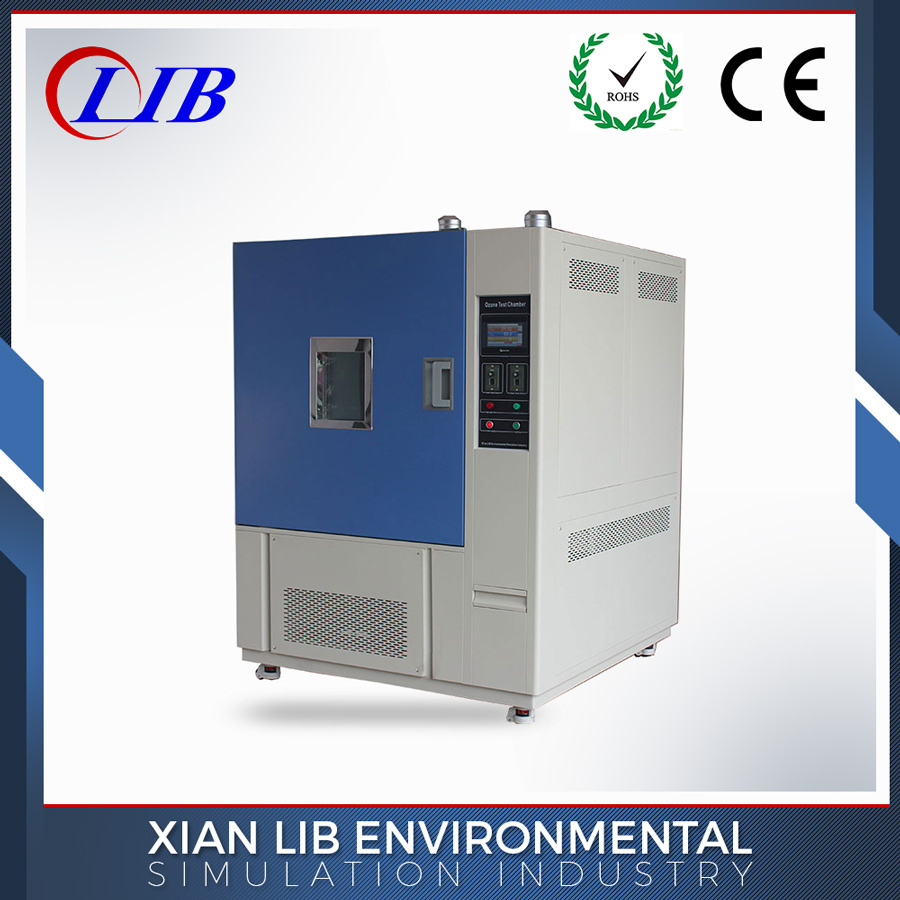

ASTM D 1149 Standard Ozone Test Cabinets For Cable Plastic Rubber
2. Standard Features:
Automatic control and supply ozone gas
Equipped with ozone generator
Temperature from 0ºC to 100ºC
Relative humidity from 30%~98%R.H
Ozone concentration can be adjusted from 0 to 1000PPHM
Dynamic sample holder
3. Main Technical Parameter
| Model | OC-100 | OC-250 | OC-500 | OC-800 | OC-010 |
| Internal dimensions (mm) | 400*500*500 | 600*600*700 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Diameter of holder (mm) | 350 | 400 | 600 | 700 | 900 |
| Length of each side (mm) | 150 | 180 | 220 | 350 | 460 |
| Temperature range | 0ºC~100ºC |
| Humidity range | 30% - 98%R.H |
| Temperature fluctuation | ±0.5ºC |
| Speed rate for cooling | Environmental conditional ~ 0ºC within 20 min. |
| Timing range | 0~999 hours |
| Ozone concentration | 1~1000PPHM (Adjusted) |
| Sample holder rotate speed | 0~10 r/min (adjustable) |
| Clamps tensile stretch | 5%~35% |
| Max. ozone concentration | 120gO3/m³ |
| Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) |
| Standard | ASTM D 1149; IEC60811-403 |
| Nominal power | 5500W | 6000W | 7500W | 9000 | 11000W |
| Power & voltage | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ |
4. Design and Construction:

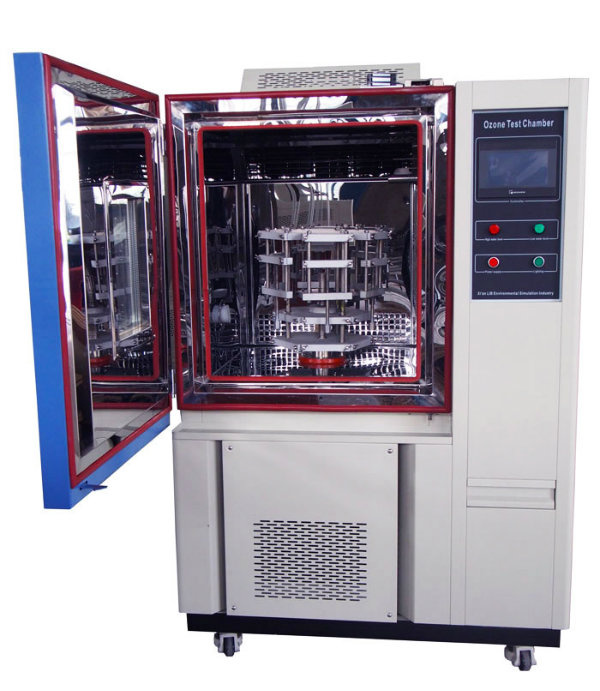

Test area and sampler holder
Ozone test chamber is for testing of elastomers.
Test area is made of stainless-steel.
Equipped with dynamic sample holder.
Temperature Control
TECUMSEH compressor from France
Environment friendly Refrigerant
Temperature range: 0ºC~100ºC
Temperature fluctuation: ±0.5ºC.
Humidity Control
External isolation, stainless steel surface evaporation humidifier
Keep water reservoir has enough water.
One side of wet bulb gauze should be immersed in small water tank.
Humidity range: 30% - 98%R.H
Ozone generator
Ozone test chamber equipped with ozone generator to supply
ozone gas.
Automatic control and supply ozone gas.
Ozone concentration: 1~1000PPHM (Adjusted).

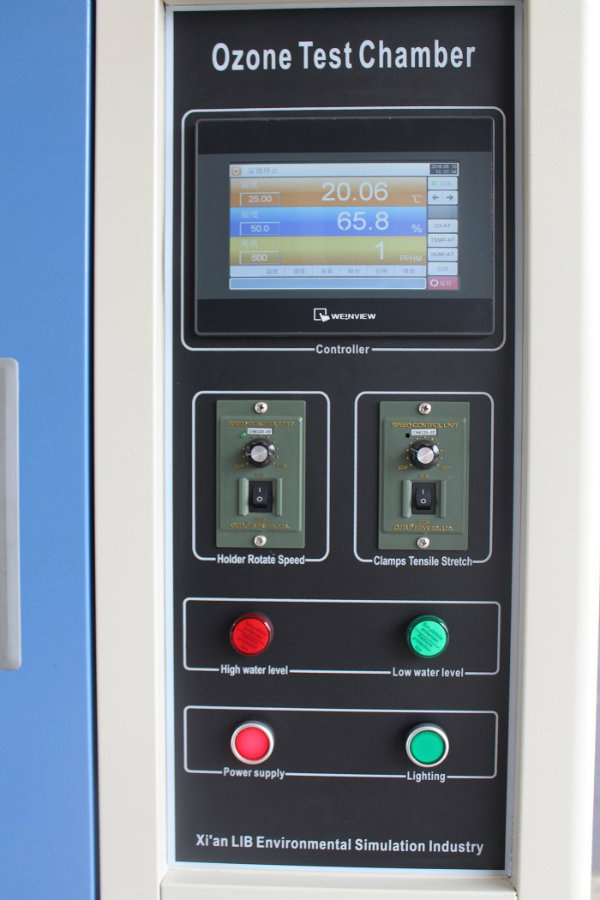

Control Operation
Programmable color display touch screen controller
Program: 100 groups in 999 sections; R-232 interface
PC Link with software.
Control Temperature, humidity and Ozone concentration
on controller.
Turning the round button to control holder rotate speed
and clamps tensile stretch.
Ozone Exhaust Device
After completed Ozone testing, click "Exha" button
to exhaust ozone from test area to this exhaust device.
This absorbs ozone, to make workplace clean and safe.
Safety protection
Humidifier dry-combustion protection
Over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Earth leakage protection and so on
Power Supply and Wiring
380V, 50 Hz 10% +/-
Three-phase five little system
