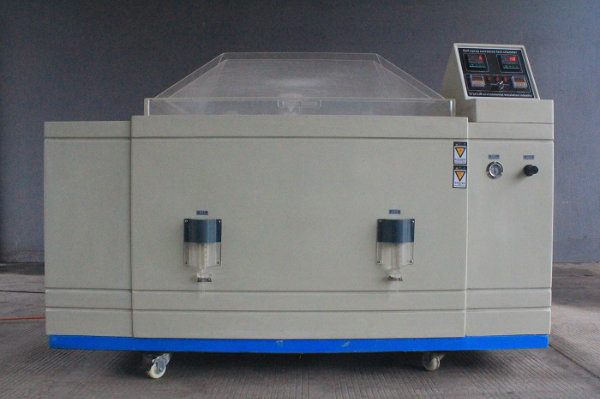

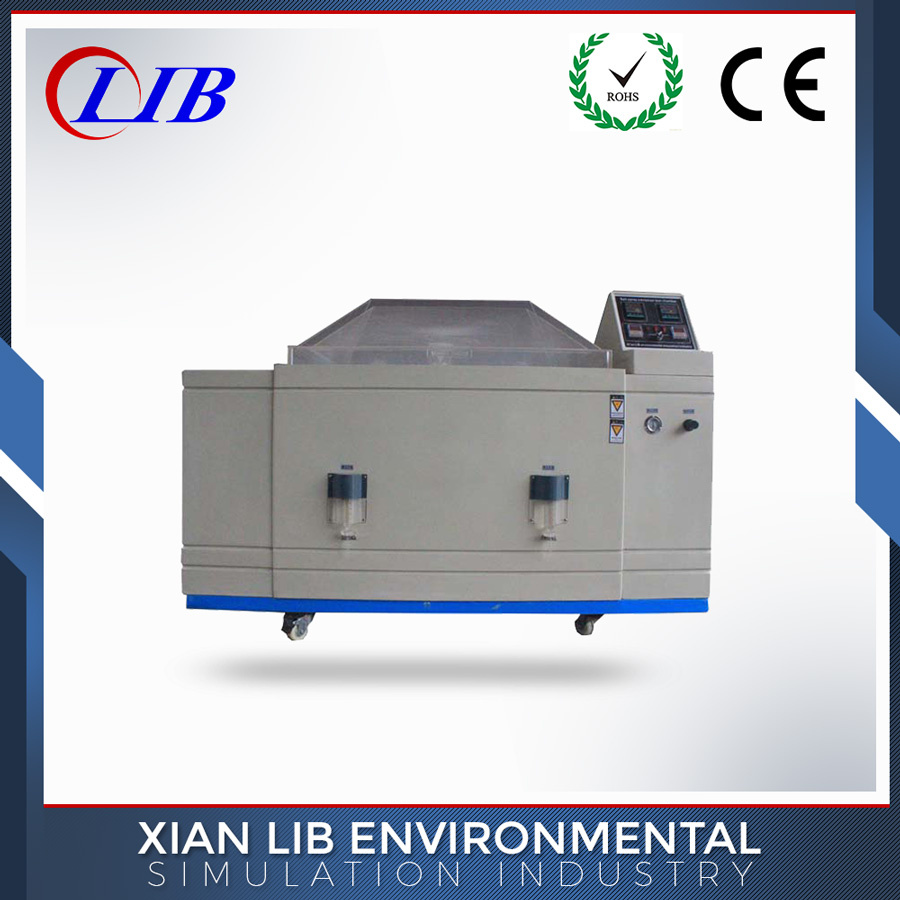

3 Years Warranty Fiberglass electronic 108 Liters Salt Spray Test Cabinet
| Price: |
US $ 1500-2900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
S-150 |
| Temperature Range: |
Ambient~60 Degree |
| Humidity Range: |
95%~98% Rh |
| Spray Type: |
Continuous/Periodic |
| Temperature Controller: |
P.I.D+S.S.R Microcomputer Integrated Controller |
| Salt Fog Collected: |
with Funnel and Metering Cylinder |
| Salt Water Filtration: |
with Water Filter Near The Suction Tubes |
| Spray System: |
Tower Spray and Nozzle Without Crystallization |
| Type: |
Salt Spray Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description
3 Years Warranty Fiberglass Eletronic 108 liters Salt Spray Test CabinetTechnical Parameters for ASTM B117 Salt spray tester:
| Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
| Internal dimensions (mm) | 450*600*400 | 600*900*500 | 750*1100*500 | 850*1300*600 | 850*1600*600 | 900*2000*600 |
| Overall dimensions (mm) | 800*1080*1080 | 870*1400*1150 | 1150*1750*1400 | 1250*2000*1550 | 1250*2300*1550 | 1300*2700*1550 |
| Technical structure |
| Temperature range | Ambient ~60ºC |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ºC |
| Temperature deviation: | +/- 2.0 ºC |
| Test time | 1~999 hours, settable |
| Spray deposition | 1~2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |

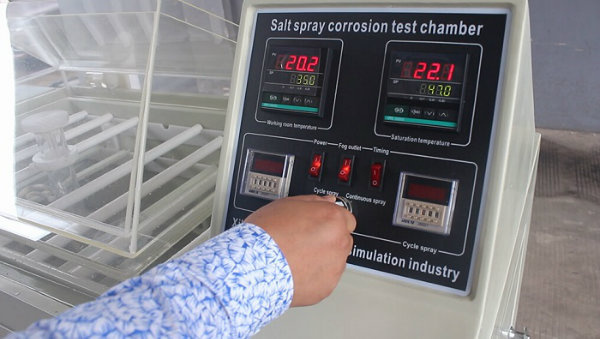

| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| 5.7" programmable color display touch screen controller (option) |
| Temperature sensor | Platinum resistance. PT100ohm / MV A-class |

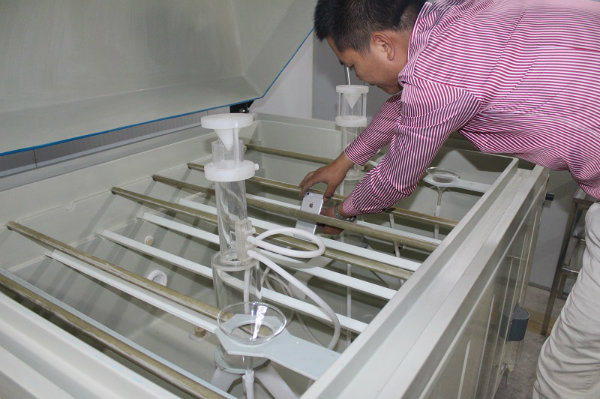

| Salt fog collected | With standard funnel and metering cylinder |
| salt water filtration | With water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | The temperature for salt water should be equal with workroom temperature |

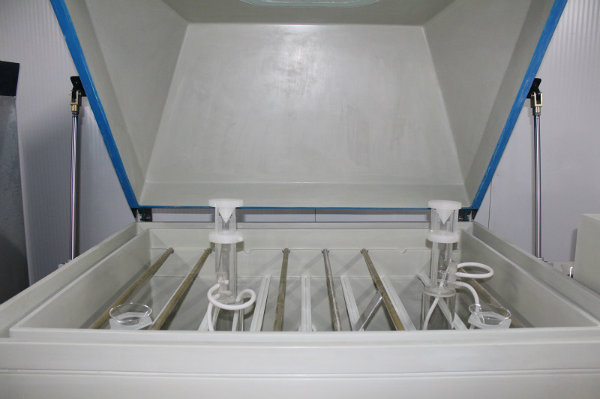

| Spraying system | Tower spray and nozzle without crystallization(Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics; (corrosion resistance, Anti-aging, high strength) |
| Standard configuration | round bar / 1 piece; sample holder / 1 piece; spray nozzle / 2 pieces; Fog collectors / 2 pieces;
metering cylinder / 2 pieces |
| safety device | Humidifier dry-combustion protection, independent over-temperature protection, water shortage protection, over-current protection, refrigerant high-pressure protection switch, over-current circuit breaker, earth leakage protection and so on. |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Nominal Power | 2500W | 3500W | 4500W | 6500W | 8500W | 11000W |
| Power Supply | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ |
Performance:
* Perform salt spray corrsion testing
* Small size & Medium size & Large Size for your option
* Comply with international standards as ASTM, IEC, ISO, DIN, MIL, JIS
6. Our Services:Pre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory. |
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning. |
7. About US:
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.
LIB adhered to "Quality", "Service", and "Trust".
LIB main products are
Temperature and humidity climatic test chamber
Thermal shock chamber
Salt spray test chamber & CCT
IP test chambers
Weathering test chambers
Ozone test chamber
Sulfur dioxide corrosion test chamber
Drying Oven
Walk-in chamber
LIB Industry undertakes standard and customized climatic chamber projects, we involve with designing, manufacturing, installation, commissioning, service, mantinance and calibration, pls contact us, we will provide the best solution to you.
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. Our main products are Temperature and humidity climatic test chamber, Thermal shock chamber, Salt spray test chamber & CCT, Dust and water ingress test chambers, Weathering test chambers, Ozone test chamber, Sulfur dioxide corrosion test chamber, Drying Overs, Walk-in chamber. etc
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
