| Prod Model: |
AOT500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manual Operating Table Material: |
Steel with Plastic Coating |
| OEM: |
Available |
| Size: |
2090*550*510-810mm |
| Manual Operating Table Certificates: |
ISO,Ce |
| Factory Location: |
1.5 Hours From Shanghai |
| Type: |
Operating Table |
| Certification: |
FDA |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Kind: |
Head Neck Thorax and Abdomen Perineum |
Product Description

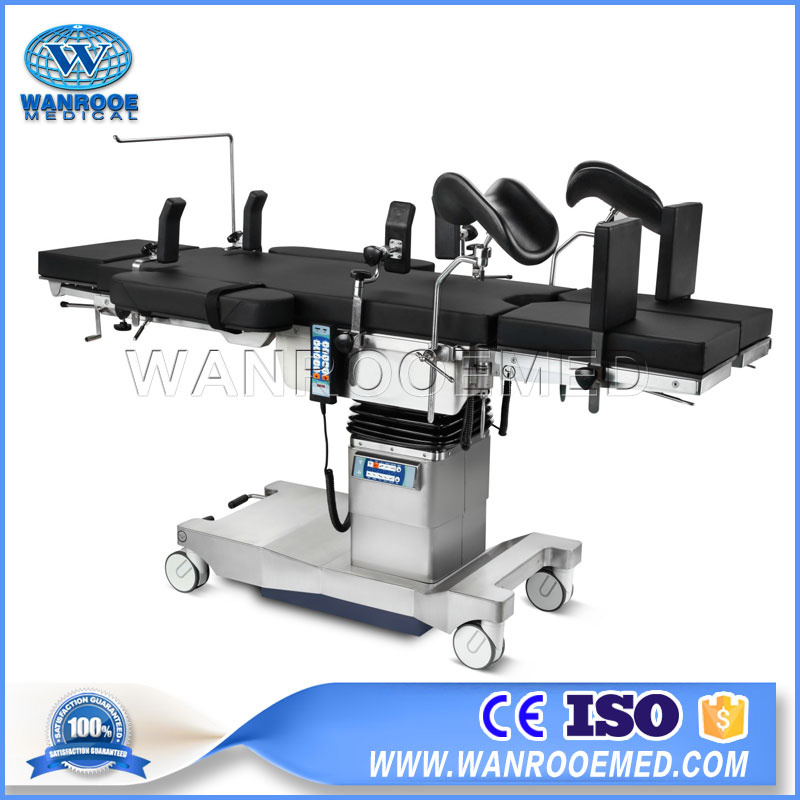

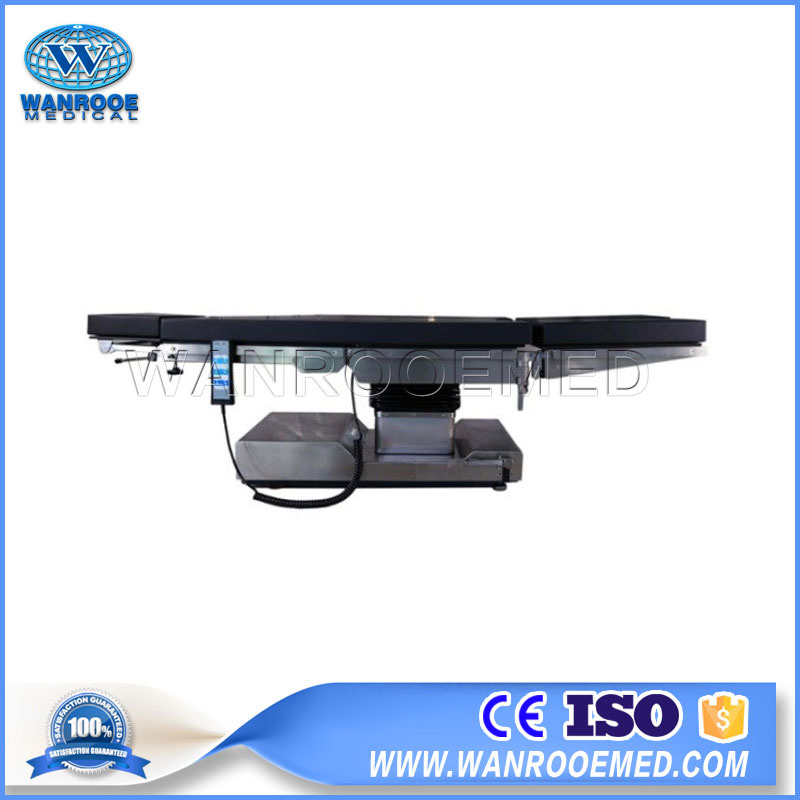

AOT500 High Quality Hospital Electric Operating Table For Surgery Room
Features:
AOT500 electric-hydraulic image integrated operating table applied a combination of modern technology and humanization design concept, electro-mechanical drive technology. This product combine many functions.
1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2. Big sliding distance-530mm, do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3. 4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.
4. Builti-in waist bridge.
5. The table can form V style body position 100°, Anti-V 220°.
6. It has emergency power. It can be used when the electric power is off.
7. Memory sponge mattress optional
8. With spare operation system on the side body of the operating table.
Main specification
| Size | length | 2100mm |
| width | 500mm |
| height | 700-1150mm |
| functions | Lifting distance | 450mm |
| Head Section Raised from the horizontal: | ≥45° |
| Head Section lowered from the horizontal | ≥90° |
| Back Section Raised from the horizontal | ≥85° |
| Back Section lowered from the horizontal: | ≥30° |
| Leg Section Lowered from the horizontal:= | ≥90° |
| Leg Section opened | ≥90° |
| Kidney Bridge Elevated | ≥80mm |
| Reversed Trendelenburg | ≥25° |
| Trendelenburg | ≥25° |
| Lateral Tilt | ≥25° |
| Backward and Forward Movements | ≥500mm |
| Level reset zero (When optional) | ±2° |
| Accessories | Head section | 1 |
| Anaesthetic Screen | 1 |
| Body support | Large 1.smart 1 |
| Shoulder support | 2 |
| Arm rest | 2 |
| Knee crutch | 2 |
| Cushion | 1 |
