| Prod Model: |
JH-WW001 |
| Hinge: |
304 Stainless Steel Hydraulic Hinge |
| Drawer Slide: |
Dtc 3-Joints Drawer Slide Without Noise |
| Worktop: |
Epoxy Resin/Lab Grade Phenolic Resin/Ceramic/S.S |
| Reagent Shelf: |
Steel and Tempered Glass |
| Socket: |
Multi-Functional International Socket |
Product Description
Specification for lab furniture:

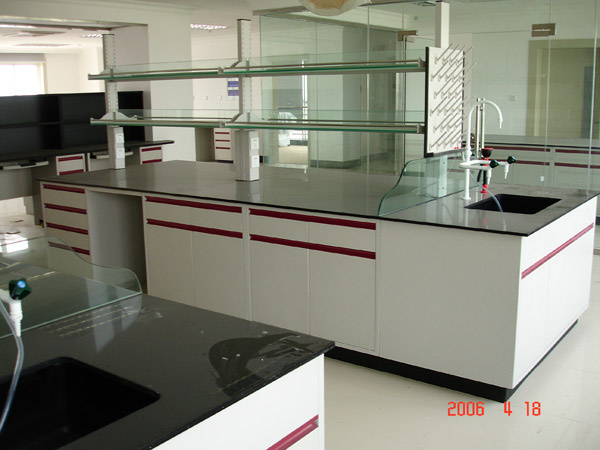

Product name: wood lab furniture(central bench)
Type: JH-WW001
The size can be custom-made requested by customers.A. cabinet:
1. It's made of E1 standard 18mm chipboard, MDF with melamine or plywood with 2mm PVC water proof edgings.
2. The back panel can be dissembled and it's convenient for installation and maintain of pipe and electricity cable.
3. Drawer sliding rail: Using steel 3-joints weight bearing sliding rail without noise on both sides of drawer.
4. Handle: Using stainless U-type specialized handle in lab or long aluminu alloy grab handle.5. Hinge: 304 stainless stee hydraulic hinge which is rust resistance.
6. Base: with all wood base.
Worktop description:
| Lab-grade phenolic resin worktop. | Epoxy resin workstop | Ceramic workstop |
Ingredient | Dipping phenolic resin into special multi-layer kraft paper , it is hot-solid formed under high temperature and pressure. | Quartz sand and epoxy mixed with special bond | Combined clay,kaolin and feldspar mixed with many special material |
Corrosive resistance | It is resistant for many kinds of acid,alkali,solvent and reagent etc. | It is resistant for many kinds of acid,alkali,solvent and reagent etc | Excellent |
Heat resistance | Normal: 135ºC, it could not touch flame directly. | 600ºC heat resistance | 1000ºC heat resistance |
Colour | Black,gray,dark green | Gray,gray,green | Black,gray,white,green |
Worktop thickness | 12.7mm,16mm,19mm | 16mm,19mm,25mm | 20mm |
| Water resistance | water absorption:0.6% | water absorption:0.008% | Excellent |
Physics feature | Good | Good | Excellent |
Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.
Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.
We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.
Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.
Our company declare solemnly: We will furnish most professional information with the most honest heart if you are familiar with our field or not. Seeking the long cooperation with customers is our basic object. Pls tell us if you have any requirement for product quality or any suggestion for our products, we will furnish the best service for your satisfaction.
