| Prod Model: |
ALDR101A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Factory Location: |
1.5 Hours From Shanghai |
| Certificates: |
ISO, CE |
| OEM: |
Available |
| Control System: |
Electro-Hydraulic, PLC Control |
| Width: |
920mm, Ultra Wide, Comfortable |
| Size: |
2000*920*590-1000mm |
| Footrest: |
Open/Close Electric |
| Quick Release Button: |
to Low Min Height in Emergency |
| Operation: |
Foot Controller and Hand Controller |
| Material: |
Metal |
| Using Ambient: |
Hospital |
| Certification: |
FDA |
Product Description

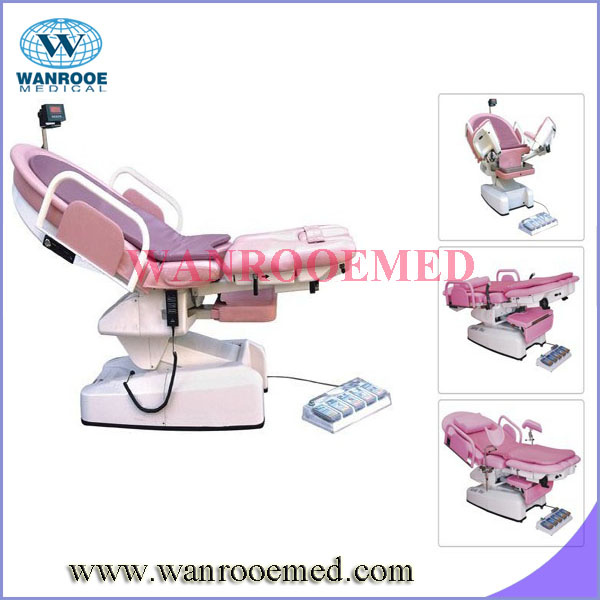

ALDR101A Hospital Labour Delivery Room Bed
ALDR101A electro-hydraulic labor and delivery bed is for VIP room. It can automatically change from a hospital bed to a delivery bed.
Features:
Japanese electro-hydraulic system, Mitsubishi PLC control, stable, safety, long use time.
The footrest can be separately open or closed according to the status of lying-in woman or to fit the labor proceeding. Intelligencen-only the footrest in folding position, the footrest can be open or closed, avoid suddenness.
Leg part can slide to accommdate patient either tall or short.
The adjustment of the back section and footrest will realize varies lying positions, e. G. Supine position, sitting position, lateral position, semireclining position, kneeling-squatting position, facedown position.
Quick release button to low the bed to minimum height position.
Equipped with hand controller and foot controller, easy to operate the birthing bed.
Siderails easy to put down and up according to requirement.
Grab handle can drop down to save space. Its special shape allows patient to hold more stable and strong.
Equipped with sliding platform, and the height is adjustable according to need manualy.
An electronic balance and a CD player are optional.
| | | Operation Mode |
| Bed dimension | Length 2000mm Width 920mm | |
| Assist platform dimension | Length 500mm Width 540mm | |
| Assist platform lifting distance | 110mm | Manual |
| Bed height | min. ≤590mm,max. ≥1000mm | Electrical |
| Back section turning | down≥5°,up≥65° | Electrical |
| Seat section turning | ≥20° | Electrical |
| Leg section swing out | ≥30° | Electrical |
| Leg section turn up | ≥20° | Electrical |
| Leg section sliding | 60mm | Manual |
| Footrest folding | ≥35° | Manual |
| Side rail turn over | 180° | Manual |
As the WANROOEMED is large-scale health care system Solution Providers, we focus on patient needs, continuous innovation, close to the clinical needs of people around the world to help improve medical conditions, reduce health care costs. So far, WANROOEMED products and solutions are deployed in over 100 countries, welcomed by professional medical and hospital brokers.
We are committed to better medical products, building cleaning, sanitation, medical care and comfortable working environment, to protect human life and health and safety. In recent years, the company in Jiangsu, Shanghai, Zhejiang, Anhui and other places to establish a "WANROOEMED" brand production base, and the introduction of Germany, Japan advanced production equipment and factory management philosophy, and constantly improve product quality, profit to customers.
"Superior quality, caring service" is as WANROOEMED commitment to customers, "sincere guardian of life" is as sacred mission of WANROOEMED. In the future, such as WANROOEMED people are full of passion for innovation practice their mission, focus hospitals needs, provide competitive medical equipment solutions and services, continued to create maximum value for customers.
