| Prod Model: |
BBS-V800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size(mm) /D*W*H: |
802*615*1575 |
| Size Of Shower Area(mm) /D*W*H: |
800*600*540 |
| Work Surface Height: |
600mm |
| Display: |
LED Display |
| Airflow Velocity: |
Average of 0.3~0.5m/S |
| Window Control: |
Manual |
| Max Opening: |
490mm |
| Fluorescent Lamp: |
14W*1 |
| UV Lamp: |
20W*1 |
| Consumption: |
350W |
| Color: |
Metal Color |
Product Description
Laminar Air flow Clean bench can supply you the high cleanliness and germfree laminar air flow surroundings.All the operation are under constant positive pressure in order to prevent the infiltration of contaminated room air. The air flow can be horizontal flow and vertical laminar flow.

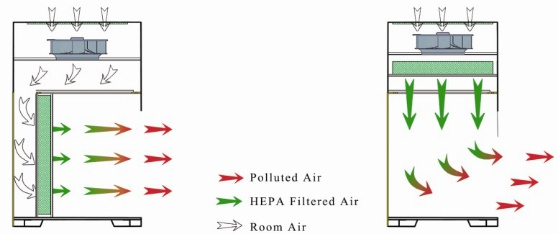

Air flow type
Horizontal Type Vertical Type
I. BBS Series Laminar Flow Cabinet(CE Certified)
Main Advantages
1,HEPA Filter with high efficiency of 99.999% at 0.3um.
2,Microprocessor control system,LED/LCD display.
3,Air Speed Adjustable.
4,UV timer for BBS-H1300/H1800/V1300/V1800.
LCD Display LED Display
BBS-V800 BBS-DSC/SSC BBS-V680Main Technical Parameters for Vertical Type (I)| Model | BBS-V800 | BBS-DSC | BBS-SSC | BBS-V680 |
External Size
(W*D*H/mm) | 802*615*1575 | 1040* 600*1730 | 1440*630*1730 | 680*410*1160 |
Internal Size
(W*D*H/mm) | 800*600*540 | 940*580*540 | 1340*630*540 | 630*375*615 |
| Work Surface Height | 660mm | 730mm | 730mm | / |
| Display | LCD Display |
Raw Materials
| Main BodyCold-rolled steel with anti-bacteria powder coating |
| Work Table:304 stainless steel |
| Front and side Window:5 mm toughened glass, anti-ultraviolet radiation,PMMA |
| Pre-Filter | Polyester fiber, Washable |
| HEPA Filter | Efficiency ≥ 99.999 % at 0.3 μ m |
| Airflow Velocity | Average of 0.3~0.5m/s |
| Noise | < 60 dB |
| Window Control | Manual | / |
| Max Opening | 490mm | 350mm | 350mm | / |
Fluorescent
Lamp | 14W*1 | 21W*1 | 28W*1 | 14W*1 |
| UV Lamp | 20W*1 | 20W*1 | 30W*1 | 15W*1 |
| Consumption | 350W | 350W | 600W | 160W |
| Caster | Universal Wheel with leveling feet | / |
| Power Supply | 110/220V ± 10%; 50/60HZ |
Standard
Accessory
| Fluorescent Lamp,UV Lamp*2,Base Stand
| Fluorescent
Lamp,UV Lamp*2
Water &Gas Tap |
| Gross Weight | 120kgs | 200kgs | 260kgs | 50kgs |
Package Size
(W*D*H) | 960*770*1800mm | 1200*830*1350mm | 1600*830*1350mm | 750*460*1170mm |
