| Prod Model: |
DEK-1325C |
| Power(W): |
8.8kw |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
4.5kw Water Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

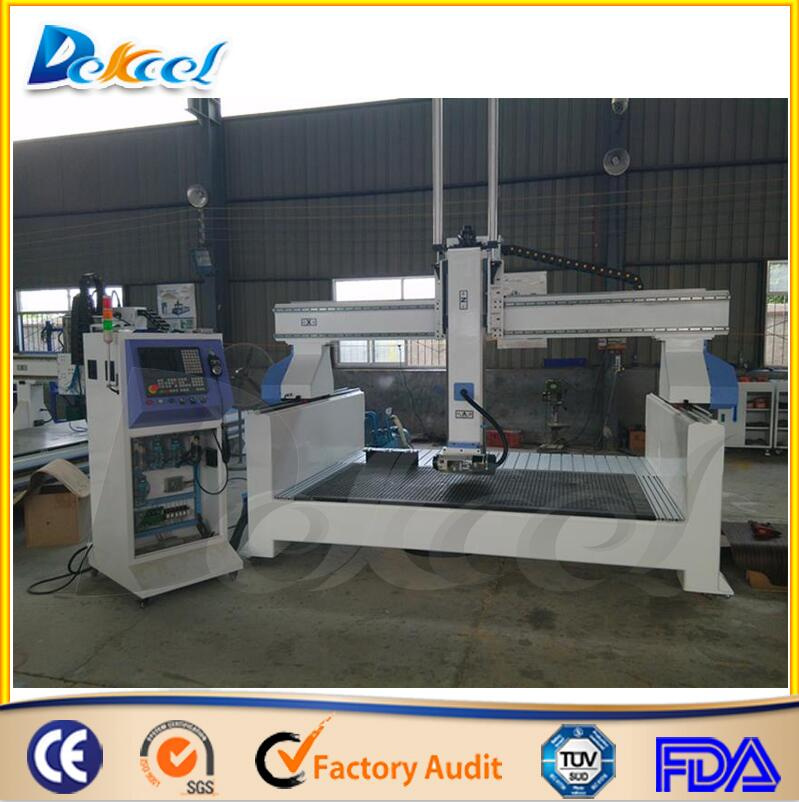

Advanced and Popular 4 Axis CNC Routers
Brief Introduction of Advanced and Popular 4 Axis CNC Routers
1) Compared with 3 axis cnc router machine, besides reliefs being carved in flat material, 4 axis woodworking cnc router machine could also engrave/carve material with curved surface, e.g., the arched door carving, the side door lock slot milling and the simple car or other models with regular arc surface. This function is due to that the spindle could rotate ±90°.
2) Being compared with expensive 5 axis cnc router machine, the machine is more economical, affordable and popular.
3) Round (Carrousel Tool Magazine) Automatic Tool Changer(RATC)with 6 tool holders and 8 tool forks, effectively improve the working efficiency.
4) Well-known HSD Auto Tools Changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
5) High-performance driven motors to ensure the machine's high speed and accuracy.
Features of Advanced and Popular 4 Axis CNC Routers
<1>Big steel square tube structure, by seamless welding and hardening treatment, strong, reliable and durable, with large bearing capacity and long working life.
<2>Top-quality components: HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.
<3>Smooth and High-Precision Transmission: Imported high-precision ball screw and Taiwan Hiwin linear square rails. The rack with 1.25 helical tooth mold guarantees the quick and high precise transmission.
<4>Humanized and beautiful designing with creativity. Breakpoint specific memory and Emergency Stop Buttons.
<5>Perfect details processing technology: Every detail is treated very seriously so that perfect machine could be made.
<6>Easy and safe operation and low maintenance cost. Easy and popular operation manual to make the user to learn quickly how to operate the machine safely; Free training in our factory will be offered.
<7> Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
<8>Matured and perfect after-sales service system around the clock removes the worries for the future. Free guarantee for one year and lifetime service; Overseas engineer is available for being dispatched.
Techinical parameter of 4 axis cnc router
| Working area: | 1300*2500*300mm |
| Spindle type: | water-cooling spindle |
| Spindle power | 4.5KW |
| Spindle rotating speed | 0-18000rpm |
| Power (except spindle power) | 5.8KW (include powers of: motors, drivers, inverters and so on) |
| Power supply: | AC380±10, 50 HZ |
| Worktable: | T-slot and vacuum table combined ,4 vacuum zone with clamps |
| Locating precision: | <0.01mm |
| Min shaping character: | Character:2x2mm,letter:1x1mm |
| Operating temperature: | 5°C-40°C |
| Working humidity | 30%-75%(without condensed water) |
| Working precision | ±0.03mm |
| System resolution | ±0.001mm |
| Control configuration: | Weihong control system /Syntec control system |
| Data transfer interface: | USB |
| System environment: | windows 7 |
| Graphic format supported: | G code: *.u00, * mmg, * plt, *.nc |
| Compatible software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
| Cutting thickness: | 0-40mm also (depends on different material) |
| Z tool censor: | yes |
| packing | Plywood case (veneer wood case for export) |
| Optional parts | 1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
Application of Advanced and Popular 4 Axis CNC Routers
>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>Applicable Industry:
Woodworking industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
Artwork &Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts
Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.
Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox;
Stone Industry: Stone, ink-stone cutting, tomb stone, jade and marble products
Kitchen Industry: Man-made marble cabinet table surface
>>Engraving and Carving patterns by 4 axis woodworking cnc router.
Guarantee and after-sale service
1) Cnc router has been stritecly tested and inspected before delivery, under the perfect QC system.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
