| Prod Model: |

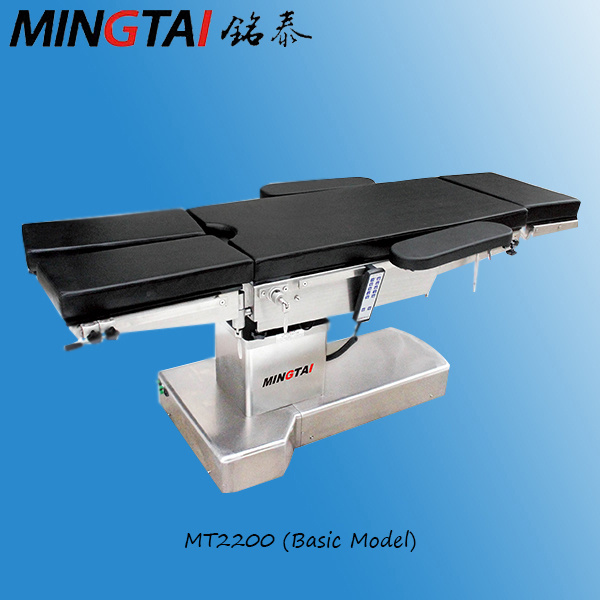

MT2200 |
| Length: |
2000mm±50mm |
| Width: |
550mm |
| Forward And Backward Tilt: |
≥32° |
| Left/Right Tilt: |
≥25° |
| Head Board Up/Down: |
≥90° |
| Back Board Up: |
≥90° |
| Leg Board Down/ Evagination: |
≥90° |
| Waist Bridge Up: |
≥130mm (Optional Electric Kidney Bridge) |
| Type: |
Operating Table |
| Certification: |
ISO9001 |
| Kind: |
Multifunction |
Product Description
Electric hydraulic ce approved surgical operating table price
Full set of electrical hydraulic system from Germany, four times safety coefficient
SUS#304 stainless steel from Korea
2 sets of independent circuit control system
"T" shaped base design, memory sponge mattress
Electric braking, supply inside emergency power
One-key-resetting function,one-key-locking function, FLEX, CHAIR
Optional four-point hydraulic brake system imported from Germany
Optional digital communications interface for the digital operating roomTechnical parameters:| Technical parameters | MT2200 |
| Length | 2100±50mm |
| Width | 520mm (standard configuration) |
| Lowest and highest table height | (680-1030) ± 50mm
(standard configuration) |

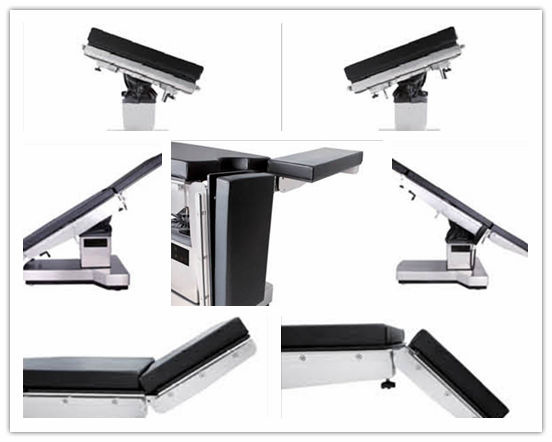

| forward and backward tilt | ≥32° |
| Left/right tilt | ≥25° |
| Head board up/down | ≥90° |
| Waist bridge up | ≥132mm (optional electric kidney bridge) |
| Leg board down/ evagination | ≥90° |
| Leg board up | ≥15° |
| Back board up | ≥90° |
| Back board down | ≥30° |
| Should board up | ≥30° (optional) |
| Should board down | ≥20° (optional) |
| FLEX / CHAIR | 240° / 120° |
| Power | AC 220V 50Hz |
| Input power | 500VA |
| Customize |
| Table width customized | between (480-560)mm |
| The lowest customized height | between (500-750)mm |
| Custom table height of lifting up and down | between (200-500)mm |
| NOTE: Custom sizes require to pay a separate cost |
Main Feature: 1.The operating table uses German imported hydraulic system operation, no leakage phenomenon, stable operation, low failure rate, long service life. Operating table uses hand controller to operate bed lifting, forward and backward tilt, left and right tilt/backboard lifting, braking and releasing, and is equipped with the function that when emergency power shutoff, can brake with manual release.

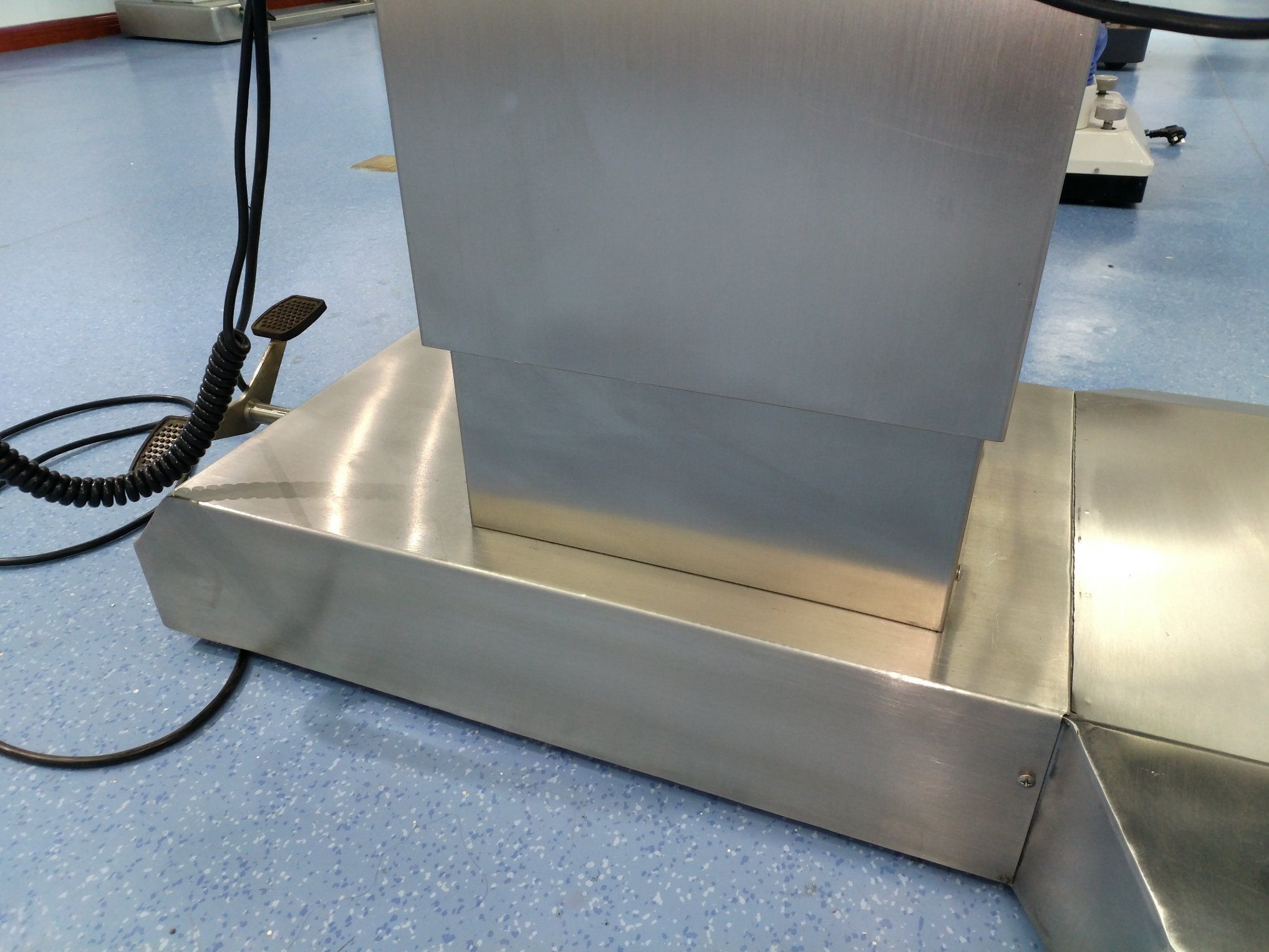

2."T" shaped base design, providing an active space for medical staffs' feet, and reduce the fatigue of the long surgery.
3.Optional universal USB communication interface, providing communication with the outside, can be integrated with digital operating room intelligently, with remote fault diagnosis function. Self-diagnosis and fault code display timely, easy to quickly find the fault position, timely solve failure, applies to the digital operating room.
4.Optional electric four-point intelligent electro-hydraulic brake system, when the floor is not smooth, it will automatically adjust to compensate, so the operating table is always in safe and stable condition, standard configuration with electric brake system.
5.Having one-key-resetting function,one-key-locking function, one-key- position function, double control system, easy to operate various functions of the operating table. Built-in rechargeable lithium battery.

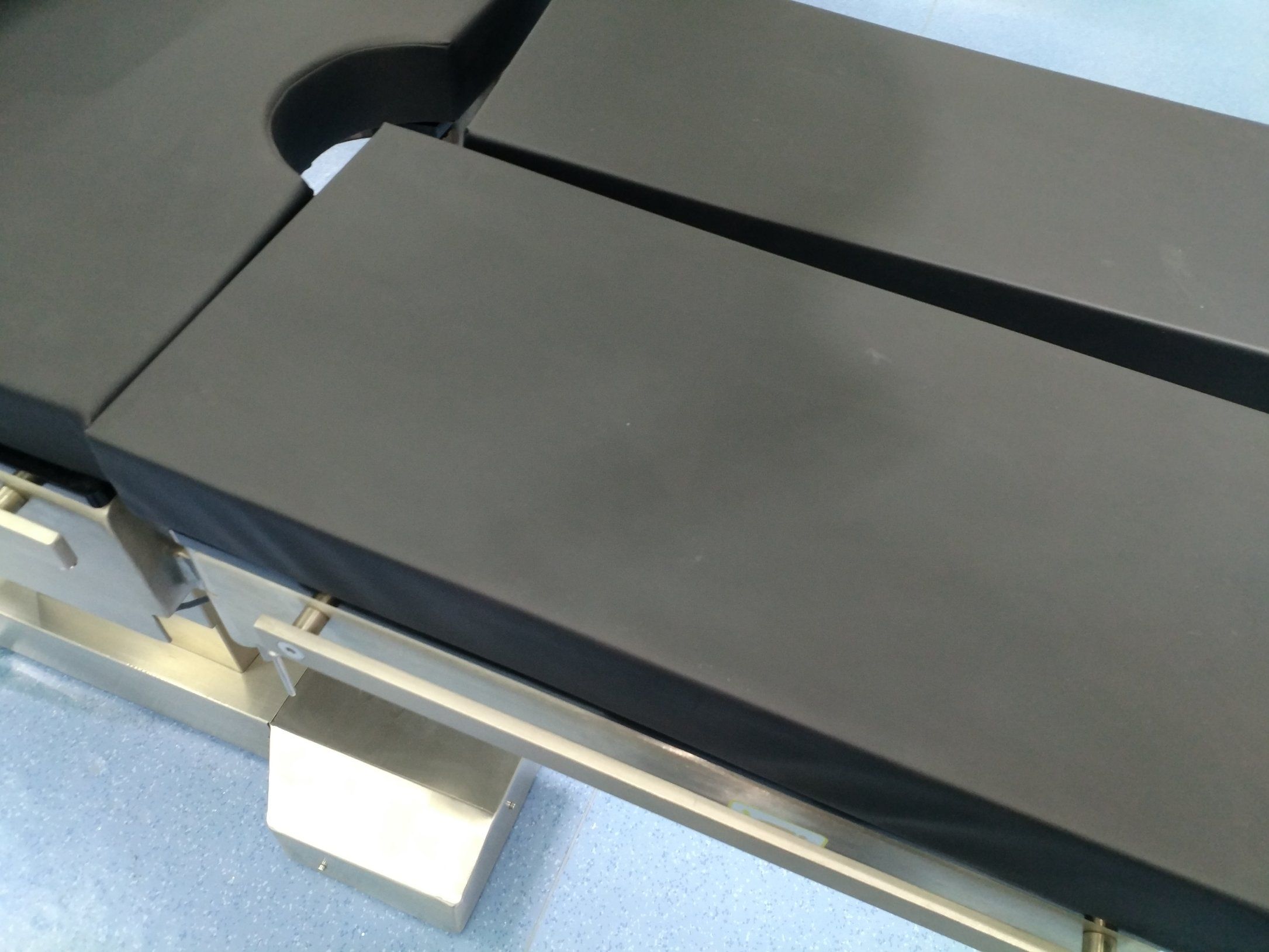

6.Overall table is made of SUS304 stainless steel. Base and pillar cover is also made of 304 stainless steel. The mattress is with low pressure, memory, fire-retardant features and can prevent pressure sores.
7.Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
8.Optional manual control box panel has backlit display, easy to find the desired key in endoscopic surgery. A separate emergency button on the hand control box panel, an emergency, pressing this button to stop all operations, for the maximum degree of protection of patient safety.
9.Having wired remote control, bedpost panel control, and has the back foot control system. Optional wireless remote controller, optional electric kidney bridge.
