| Prod Model: |
VCT-2025FR-2Z-8H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Power: |
Water Cooling 2200W*8 PCS |
| No. Of Motors & Drivers: |
7 PCS Panasonic Servo M Otors in Total |
| Rotary Transmission: |
Gear Box (Reduction Rate: 1:25) |
| 3D Rotary Working Size: |
2000mm(Length)*250mm(Rotary Diameter) |
| Air Cylinder Support: |
Yes (300mm Long Air Cylinder) |
| Body Structure: |
Cast Square Tube |
| Type: |
Engraving Router |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
Product Description

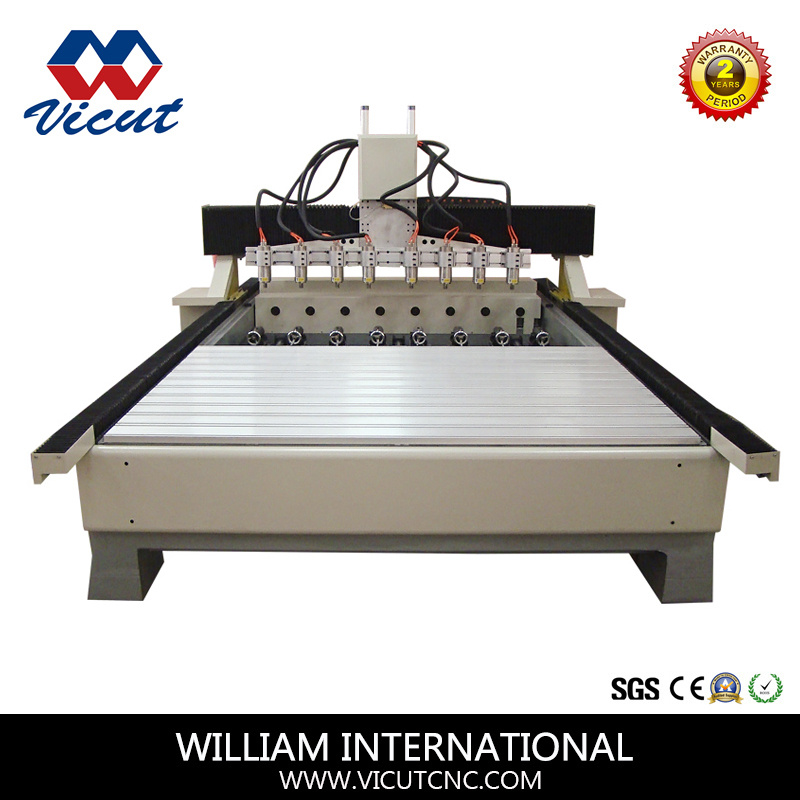

CNC Rotary CNC Wood Router Woodworking Engraver (VCT-2025FR-2Z-8H)

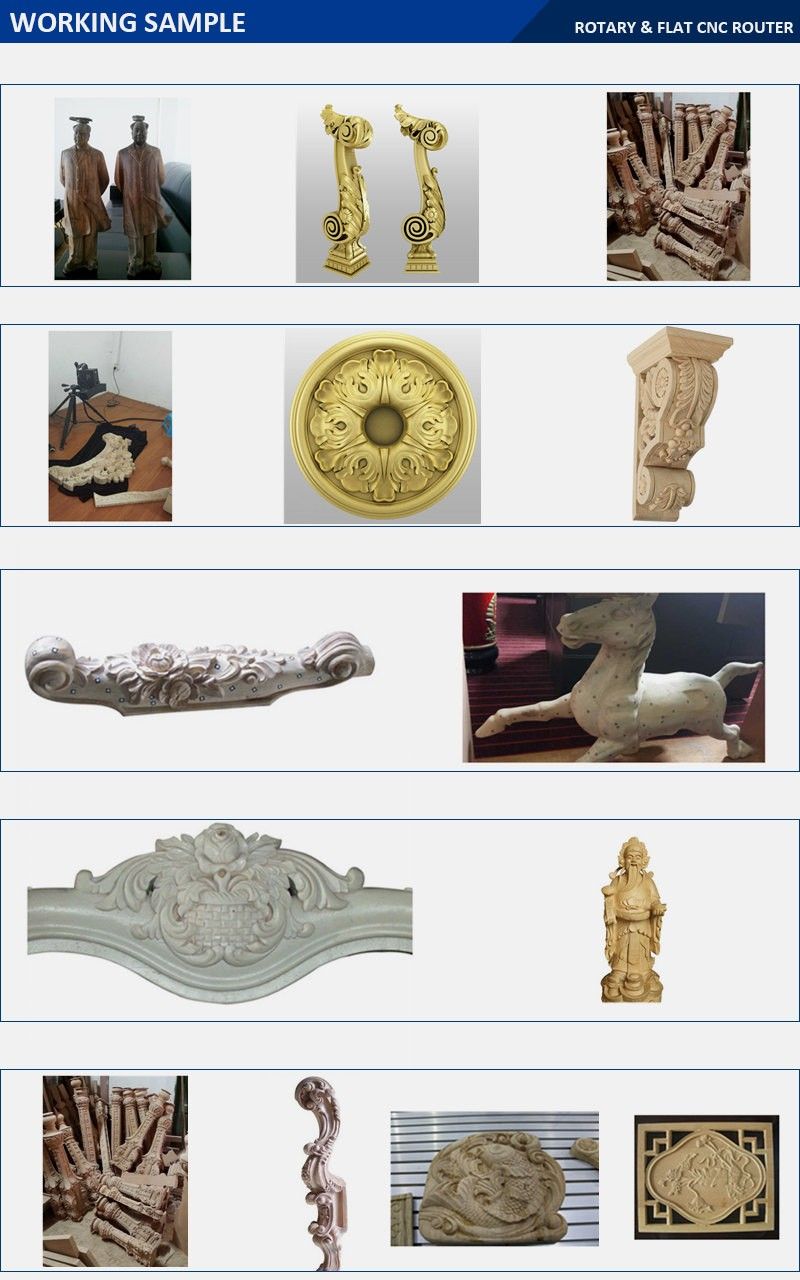

Vicut 2D/3D engraving routers are perfectly used in manufacturing furniture, Cabinet, Handrail, Crutch, Wood crafts, Door, Window, Acrylic signs, guitar and other musical instruments, etc.
Features: Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.2. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time to realize 3D rotary engraving column material.Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.Use gear rack locking system instead of common screws to adjust and fix the rotary device, more tight and stable. Applications:
Material: engraving and cutting on various column materials, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
| Model | VCT-1590R-4H | VCT-3512R-6H | VCT-2512R-8H | VCT-2013R-2Z-8H |
| Dimension(X*Y) | 1100×1500mm (3.6'x4.9') | 2600 x 2000mm
(8.6'x6.6') | 2500 x2000mm
(8.2'x6.6') | 2100×2000mm
(6.9'x6.6') |
| 3D Rotary Working Size | 900mm(length) x 150mm(rotary diameter) | 1200mm(length) x 350mm(rotary diameter) | 1200mm(length) x 250mm(rotary diameter) | 1300mm(length) x 200mm(rotary diameter) |
| Spindle Power | 1500W×4PCS | 2200W×6PCS | 2200W×6PCS | 2200W×8PCS |
| No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 8 PCS |
| Motor Driver | Stepper Motors (8pcs) | 6pcs Panasonic Servo Motors
(2pcs support rotary, 1pcs for X axis, 1pcs for 2Z, 2pcs for Y axis) | 7pcs Panasonic Servo Motors
(2pcs support rotary, 1pcs for X axis, 2pcs for 2Z, 2pcs for Y axis) |
| Rotary Transmission | Belt Transmission | Gear box (reduction rate: 1:25) /Belts transmission is optional |
| XYZ Transmission | TBI Ball Screw for
XYZ axis | TBI Ball Screw 40mm for Z axis, High precision Gear Rack for XY axis |
| Max Engraving Speed | 12000mm/m | 15000mm/minute |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4,6, 8, 12mm |
| Body Structure | Thick steel tube welding |
| Guiding Rails | XYZ Taiwan Linear Square Rails |
| Reposition Accuracy | <0.03/300mm |

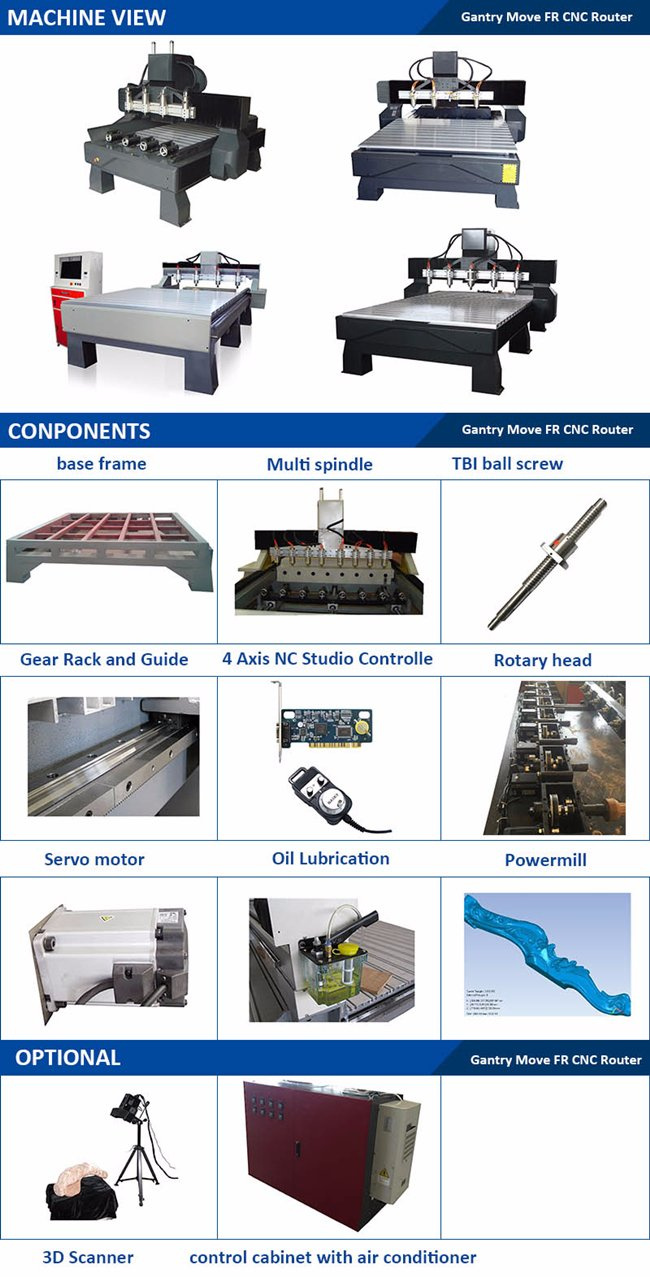

Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty welded tubular steel, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operation.
2. Multiple Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hzor380V, 3Phase-50-60Hz. Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Enhanced Carrying Pole: The spindles are mounted on carrying pole which is made of thick aluminum, on which we put also reinforcing plate, the structure offers better impact resistance and eliminate the shaking to the most.
4. Ball Screw and gear rack: Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 40mm diameter and 0.01mm repositioning accuracy. XY axis use high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
5. Linear square guide: Quality 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics.
6. NC Studio 4 AXIS Controller: PC based NC Studio Controller with friendlier human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Better anti-interference performance due to control signal adopting differential signal input& output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
7. Rotary Axis: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; We can put different number of rotary axis according to specified requirement.
8. Servo Motor and Driver: Totally use 7 sets Panasonic servo motor and drivers, including 2 sets support 8 rotary, 2 motors for Y axis, 1 motor for X axis, 2 motors for Z axis.
9. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
10. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
11. Photoelectric Limit Switch: Un-touching, more sensitive and durable than traditional mechanical switch, maintenance-free for long term use.
12. Foot Pads make it easier to level the machine accurately.
13.4 AXIS Software: You can use power-mill software to make processing of 3D files which was scanned with 3D scanner. We can make 4 axis movements, AXYZ axis can move at the same time.
Optional parts:
1.3D Scanner: A fast and easy to operate device for massive production based on complicated three-dimensional samples. Good for woodworking, small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
2. Nebulizer Cooling System: It sends oil mist to machining surface, it is important for tool cooling and lubricating.
How will we pack and ship this big size machine?
This model CNC size is big, consider of the container size, we have to make the CNC table and legs separated, and take off the X gantry and Y side motors during shipping, in this way, we can ship 6 sets of this model machine with 1 set 20ft container. Try to save your shipping cost is one of our jobs! !
